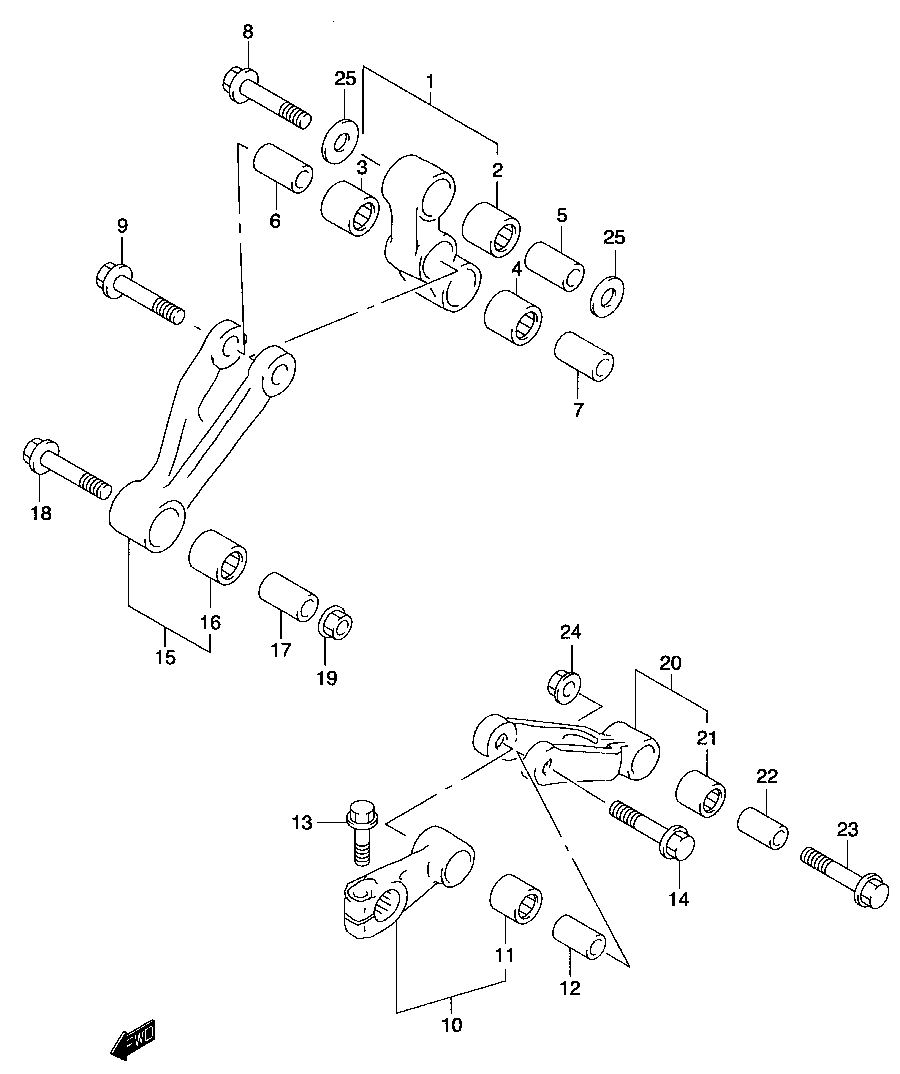

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki TL-1000S Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    62600-02810 LEVER SET (REAR) CUSHION
    LEVER SET (REAR) CUSHION
  • 2
    09263-20073 ...BEARING (FRONT) (20X27X30)
    ...BEARING (FRONT) (20X27X30)
  • 3
    09263-20074 ...BEARING (CENTER) (20X27X32)
    ...BEARING (CENTER) (20X27X32)
  • 4
    09263-17039 ...BEARING (REAR) (17X24X20)
    ...BEARING (REAR) (17X24X20)
  • 5
    62317-27C10 SPACER, LEVER (FRONT) (12X20X34)
    SPACER, LEVER (FRONT) (12X20X34)
  • 6
    62317-27C10 SPACER, LEVER (CENTER) (12X20X34)
    SPACER, LEVER (CENTER) (12X20X34)
  • 7
    62684-02F00 SPACER, LEVER (REAR) (10X17X45)
    SPACER, LEVER (REAR) (10X17X45)
  • 8
    62658-01C60 BOLT, LEVER (FRONT) (12X65)
    BOLT, LEVER (FRONT) (12X65)
  • 9
    62668-42A02 BOLT, LEVER (CENTER) (12X62)
    BOLT, LEVER (CENTER) (12X62)
  • 10
    62600-02860 ARM SET (REAR) CUSHION
    ARM SET (REAR) CUSHION
  • 11
    09263-14025 ...BEARING (14X20X25)
    ...BEARING (14X20X25)
  • 12
    62646-02F00 SPACER, ARM (10X14X29)
    SPACER, ARM (10X14X29)
  • 13
    09103-08042 BOLT, ARM (8X31)
    BOLT, ARM (8X31)
  • 14
    62648-14500 BOLT, ARM (10X48)
    BOLT, ARM (10X48)
  • 15
    62650-02810 ROD SET, CUSHION (REAR/RIGHT)
    ROD SET, CUSHION (REAR/RIGHT)
  • 16
    09263-20074 ...BEARING (20X27X32)
    ...BEARING (20X27X32)
  • 17
    62317-27C10 SPACER, ROD (RIGHT) (12X20X34)
    SPACER, ROD (RIGHT) (12X20X34)
  • 18
    62668-27A00 BOLT, ROD (RIGHT) (12X72)
    BOLT, ROD (RIGHT) (12X72)
  • 19
    08319-31128 NUT
    NUT
  • 20
    62640-02810 ROD SET, CUSHION (REAR/LEFT)
    ROD SET, CUSHION (REAR/LEFT)
  • 21
    09263-14025 ...BEARING (14X20X25)
    ...BEARING (14X20X25)
  • 22
    62646-02F00 SPACER, ROD (LEFT) (10X14X29)
    SPACER, ROD (LEFT) (10X14X29)
  • 23
    62311-14501 BOLT, ROD (LEFT) (10X58)
    BOLT, ROD (LEFT) (10X58)
  • 24
    08319-31107 NUT
    NUT
  • 25
    09181-20186 WASHER, LEVER (FRONT)
    WASHER, LEVER (FRONT)
