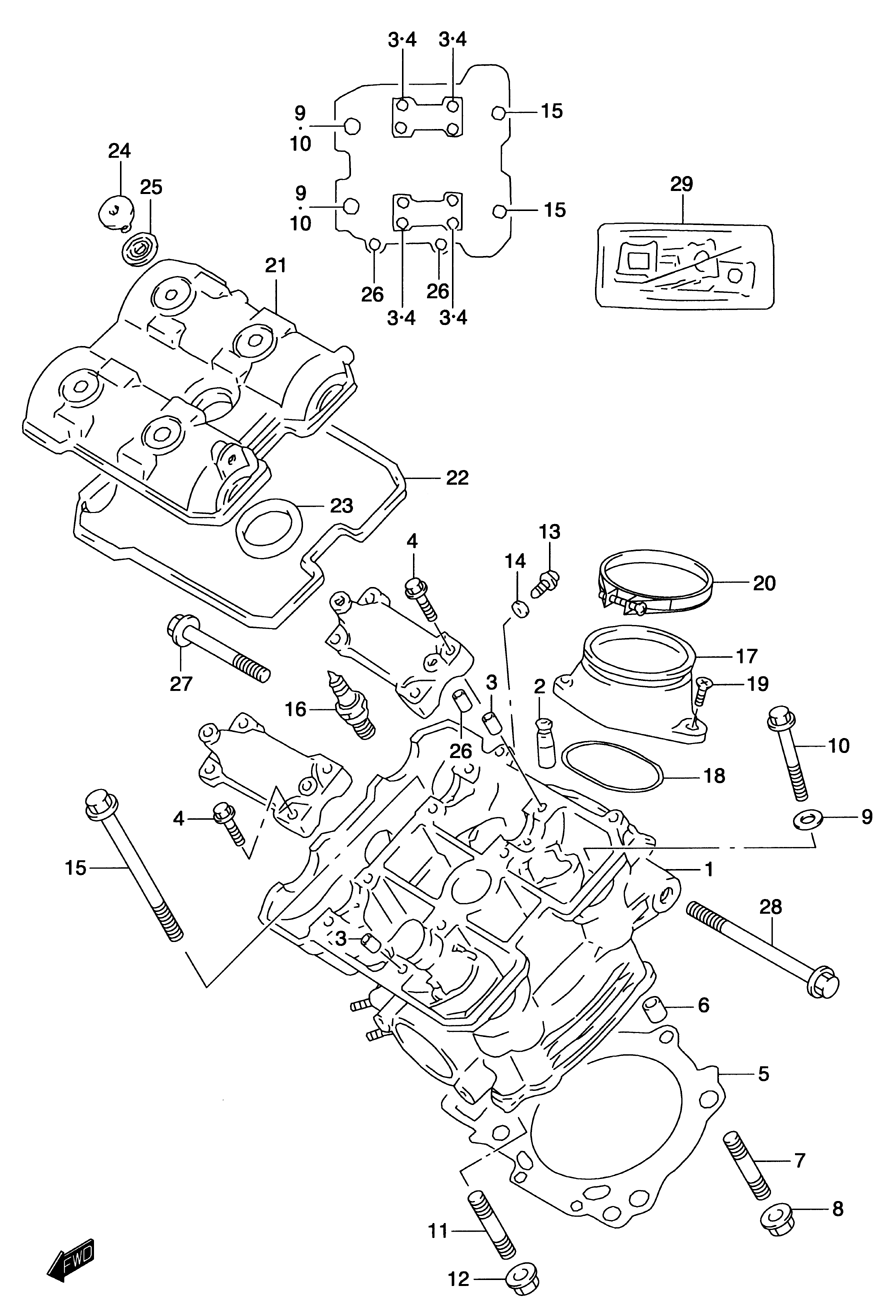

CYLINDER HEAD (FRONT) для Suzuki TL-1000S Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1-3
    11100-02F31 HEAD ASSY., CYLINDER (FRONT)
    HEAD ASSY., CYLINDER (FRONT)
  • 2
    11115-32E70 ...GUIDE, VALVE
    ...GUIDE, VALVE
  • 3
    09206-08001 ...PIN
    ...PIN
  • 4
    09103-06026 ...BOLT (6X39)
    ...BOLT (6X39)
  • 5-1
    11141-02F00 GASKET (UP TO ENGINE NO. 111954)
    GASKET (UP TO ENGINE NO. 111954)
  • 5-2
    11141-02F01 GASKET (ABOVE ENGINE NO.111955)
    GASKET (ABOVE ENGINE NO.111955)
  • 6
    04211-13189 PIN
    PIN
  • 7
    09108-08143 STUD BOLT (8X35)
    STUD BOLT (8X35)
  • 8
    08316-10083 NUT
    NUT
  • 9
    09160-10082 WASHER
    WASHER
  • 10-2
    11161-02F00 BOLT (10X175)
    BOLT (10X175)
  • 11
    09108-06096 STUD BOLT (6X30)
    STUD BOLT (6X30)
  • 12
    08316-10063 NUT
    NUT
  • 13
    07120-06123 PLUG
    PLUG
  • 14
    09168-06023 GASKET
    GASKET
  • 15
    09103-06103 BOLT (6X70)
    BOLT (6X70)
  • 16-1
    09482-00410 SPARK PLUG (NGK,CR9EK) (UP TO FRAME NO.103237)
    SPARK PLUG (NGK,CR9EK) (UP TO FRAME NO.103237)
  • 16-2
    09482-00411 SPARK PLUG (DENSO,U27ETR) (UP TO FRAME NO.103237)
    SPARK PLUG (DENSO,U27ETR) (UP TO FRAME NO.103237)
  • 16-3
    09482-00412 SPARK PLUG (NGK,CR8EK) (ABOVE FRAME NO.103238)
    SPARK PLUG (NGK,CR8EK) (ABOVE FRAME NO.103238)
  • 16-4
    09482-00413 SPARK PLUG (DENSO,U24ETR) (ABOVE FRAME NO.103238)
    SPARK PLUG (DENSO,U24ETR) (ABOVE FRAME NO.103238)
  • 16-5
    09482-00412 SPARK PLUG (NGK,CR8EK) (OPT) (UP TO FRAME NO.103237)
    SPARK PLUG (NGK,CR8EK) (OPT) (UP TO FRAME NO.103237)
  • 16-6
    09482-00413 SPARK PLUG (DENSO,U24ETR) (OPT) (UP TO FRAME NO.103237)
    SPARK PLUG (DENSO,U24ETR) (OPT) (UP TO FRAME NO.103237)
  • 16-7
    09482-00410 SPARK PLUG (NGK,CR9EK) (OPT) (ABOVE FRAME NO. 103238)
    SPARK PLUG (NGK,CR9EK) (OPT) (ABOVE FRAME NO. 103238)
  • 16-8
    09482-00411 SPARK PLUG (DENSO,U27ETR) (OPT) (ABOVE FRAME NO. 103238)
    SPARK PLUG (DENSO,U27ETR) (OPT) (ABOVE FRAME NO. 103238)
  • 16-9
    09482-00462 SPARK PLUG (NGK,CR10EK) (OPT)
    SPARK PLUG (NGK,CR10EK) (OPT)
  • 16-10
    09482-00463 SPARK PLUG (DENSO,U31ETR) (OPT)
    SPARK PLUG (DENSO,U31ETR) (OPT)
  • 17
    13101-02F00 PIPE, INTAKE (FRONT)
    PIPE, INTAKE (FRONT)
  • 18
    09280-55005 O-RING
    O-RING
  • 19
    09120-06010 SCREW
    SCREW
  • 20
    09402-70203 CLAMP
    CLAMP
  • 21
    11171-02F00 COVER, CYLINDER
    COVER, CYLINDER
  • 22
    11173-02F00 GASKET
    GASKET
  • 23
    11178-17E00 GASKET
    GASKET
  • 24
    09106-07009 BOLT (7X17.5)
    BOLT (7X17.5)
  • 25
    09161-11008 WASHER
    WASHER
  • 26
    09206-08001 PIN
    PIN
  • 27
    01550-10657 BOLT
    BOLT
  • 28
    01550-10907 BOLT
    BOLT
  • 29-1
    11401-02850 GASKET SET (UP TO ENGINE NO.111954) (SEE NOTE)
    GASKET SET (UP TO ENGINE NO.111954) (SEE NOTE)
  • 29-2
    11401-02852 GASKET SET (ABOVE ENGINE NO.111955) (SEE NOTE)
    GASKET SET (ABOVE ENGINE NO.111955) (SEE NOTE)
