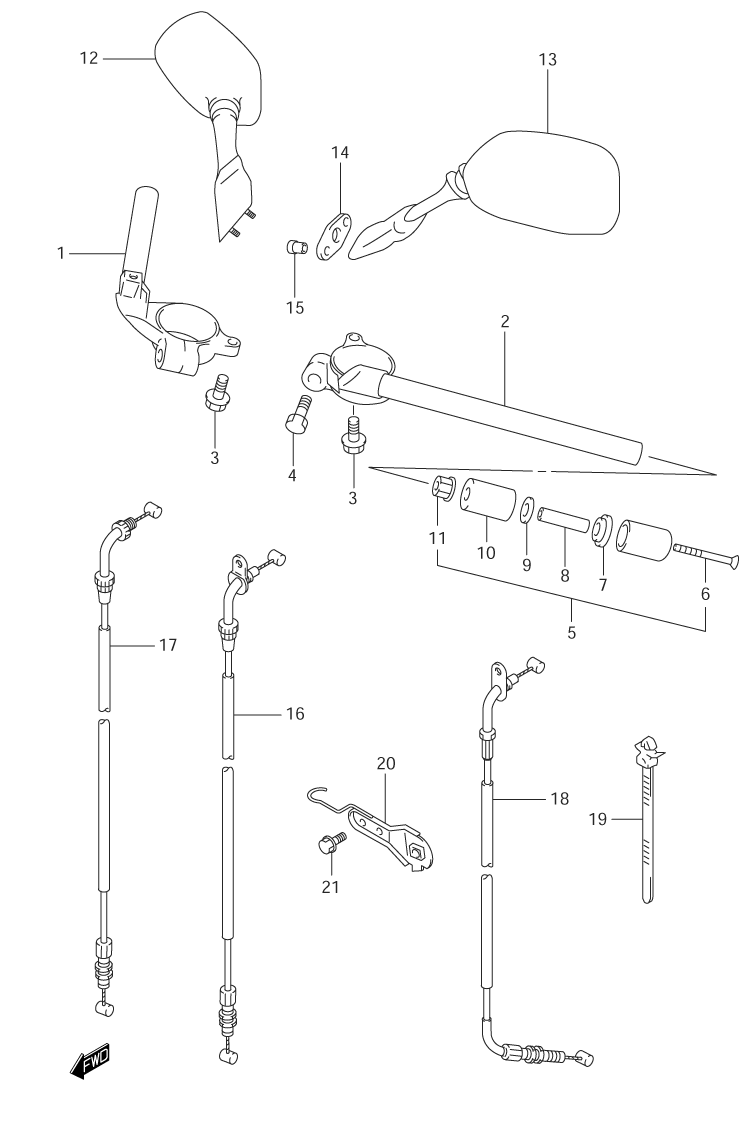

HANDLEBAR W/ CABLES - MIRRORS для Suzuki TL-1000R Y - 2000 года выпуска
-
№АртикулНазвание
-
156111-33E20 HANDLEBAR (RIGHT)HANDLEBAR (RIGHT)
-
256151-33E20 HANDLEBAR (LEFT)HANDLEBAR (LEFT)
-
301550-06163 BOLT, SETBOLT, SET
-
409103-08269 BOLT, HANDLEBARBOLT, HANDLEBAR
-
556200-07831 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
609127-06018 ...SCREW...SCREW
-
756272-10D00 ...EXPANDER (OUTER)...EXPANDER (OUTER)
-
856276-17D00 ...SPACER...SPACER
-
909160-06126 ...WASHER...WASHER
-
1056272-44500 ...EXPANDER (INNER)...EXPANDER (INNER)
-
1109159-06024 ...NUT...NUT
-
1256500-22D11 MIRROR ASSY., VIEW (REAR/RIGHT)MIRROR ASSY., VIEW (REAR/RIGHT)
-
1356600-22D11 MIRROR ASSY., VIEW (REAR/ LEFT)MIRROR ASSY., VIEW (REAR/ LEFT)
-
1494576-22D00 CUSHIONCUSHION
-
1556619-17C00 NUTNUT
-
1658300-02FA0 CABLE ASSY., THROTTLE NO.1CABLE ASSY., THROTTLE NO.1
-
1758300-02FB0 CABLE ASSY., THROTTLE NO.2CABLE ASSY., THROTTLE NO.2
-
1858410-02FA0 CABLE, STARTERCABLE, STARTER
-
1909407-18402 CLAMPCLAMP
-
2058620-02FA0 GUIDE, CABLEGUIDE, CABLE
-
2101550-06123 BOLTBOLT
