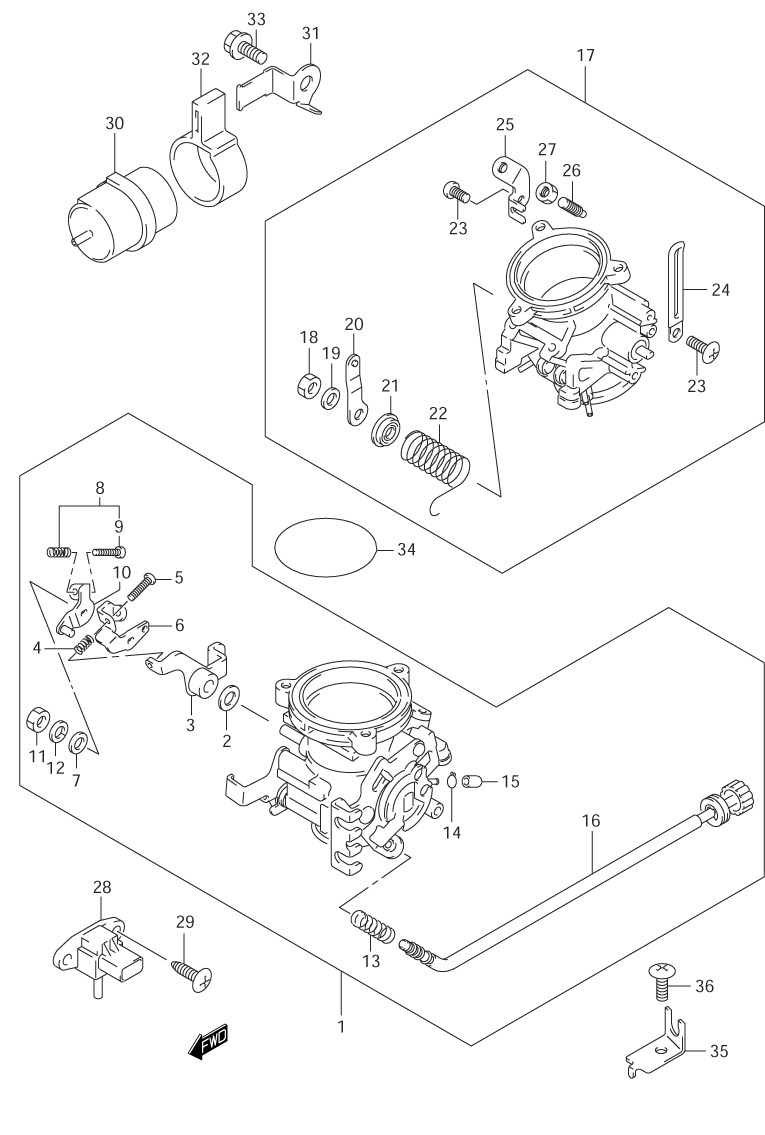

CARBURETOR - THROTTLE BODY ASSY. для Suzuki TL-1000R Y - 2000 года выпуска
-
№АртикулНазвание
-
1-113401-02FB0 THROTTLE BODY ASSY. (FRONT) (EXCEPT CALIF.)THROTTLE BODY ASSY. (FRONT) (EXCEPT CALIF.)
-
1-213401-02FC0 THROTTLE BODY ASSY. (FRONT) (CALIF. ONLY)THROTTLE BODY ASSY. (FRONT) (CALIF. ONLY)
-
213557-02FA0 ...PACKING...PACKING
-
313542-02FA0 ...LEVER ASSY....LEVER ASSY.
-
413375-60A00 ...SPRING...SPRING
-
513602-42E10 ...SCREW...SCREW
-
613543-02FA0 ...LEVER...LEVER
-
795569-82140 ...RING...RING
-
813601-60AT0 ...SCREW SET, ADJUST...SCREW SET, ADJUST
-
902112-04203 ......SCREW......SCREW
-
1013544-02FA0 ...LEVER ASSY....LEVER ASSY.
-
1113607-37010 ...NUT...NUT
-
1208321-01087 ...WASHER...WASHER
-
1313271-93011 ...SPRING...SPRING
-
1409401-06101 ...CLIP...CLIP
-
1513274-84000 ...CAP...CAP
-
1613270-02FA0 ...ADJUST SCREW ASSY....ADJUST SCREW ASSY.
-
17-113402-02FB0 THROTTLE BODY ASSY. (REAR) (EXCEPT CALIF.)THROTTLE BODY ASSY. (REAR) (EXCEPT CALIF.)
-
17-213402-02FC0 THROTTLE BODY ASSY. (REAR) (CALIF. ONLY)THROTTLE BODY ASSY. (REAR) (CALIF. ONLY)
-
1813607-37010 ...NUT...NUT
-
1908321-01087 ...WASHER...WASHER
-
2013545-02FA0 ...LEVER ASSY....LEVER ASSY.
-
2113574-02FA0 ...RING...RING
-
2213573-02FA0 ...SPRING...SPRING
-
2313602-02F00 ...SCREW...SCREW
-
2409404-06432 ...CLAMP (L:80)...CLAMP (L:80)
-
2513627-02FA0 ...BRACKET...BRACKET
-
2613605-47080 ...SCREW...SCREW
-
2713607-47070 ...NUT...NUT
-
2818590-80C50 SENSOR, AIR PRESSURESENSOR, AIR PRESSURE
-
2903541-05163 SCREWSCREW
-
3013715-02FA0 CHAMBER, VACUUMCHAMBER, VACUUM
-
3113911-02FA0 PLATEPLATE
-
3213912-02FA0 BANDBAND
-
3309248-10010 BOLTBOLT
-
3409280-60005 O-RING, THROTTLE BODYO-RING, THROTTLE BODY
-
3513279-02FA0 PLATE, IDLE ADJUSTPLATE, IDLE ADJUST
-
3602142-06163 SCREWSCREW
