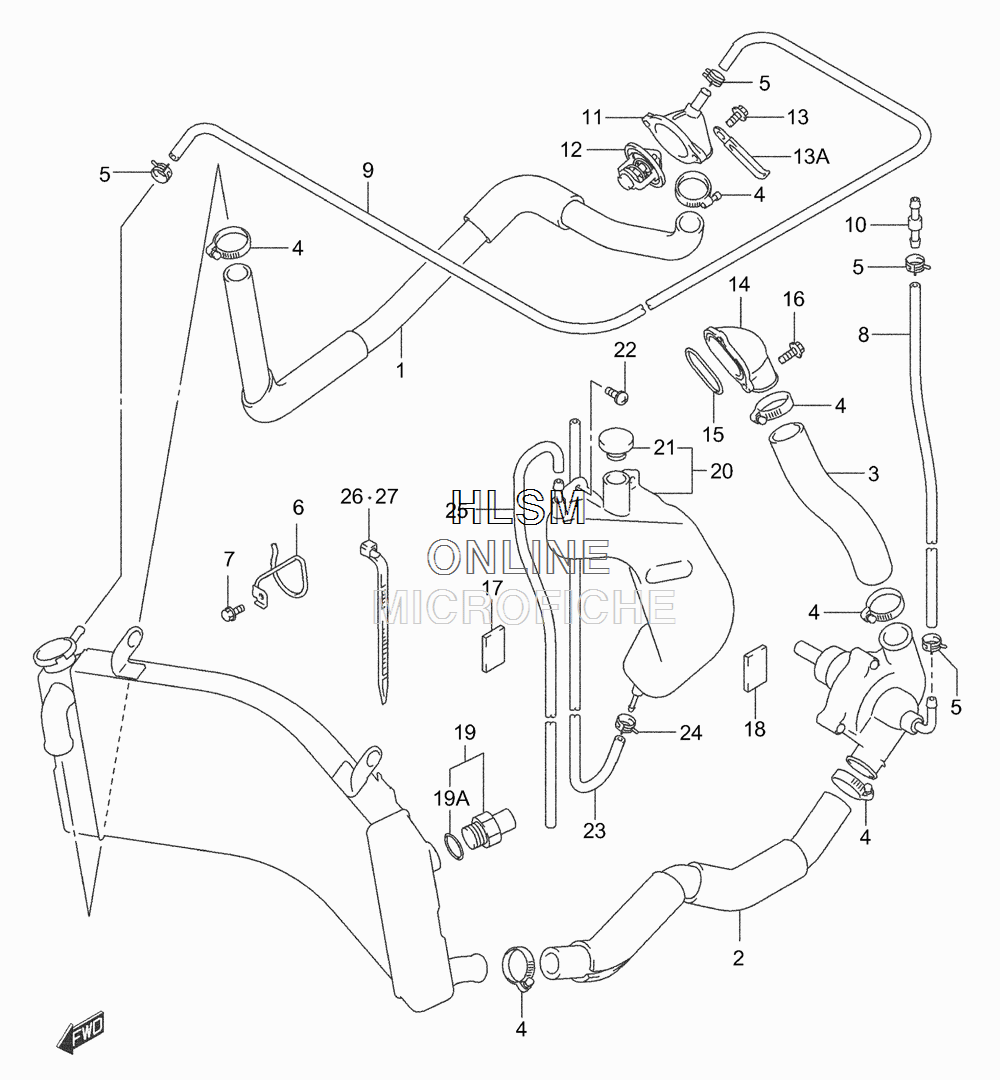

RADIATOR HOSE W/ RESERVOIR для Suzuki GSX-1300R Y - 2000 года выпуска`
-
№АртикулНазвание
-
117851-24F00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
217852-24F00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
317853-24F00 HOSE, CYLINDER INLETHOSE, CYLINDER INLET
-
409402-38511 CLAMPCLAMP
-
509401-12409 CLIP, WATER HOSECLIP, WATER HOSE
-
617859-24F00 CLAMP, RADIATOR INLET HOSECLAMP, RADIATOR INLET HOSE
-
701550-06103 BOLTBOLT
-
817854-24F00 HOSE, WATER BYPASS NO.1HOSE, WATER BYPASS NO.1
-
917855-24F00 HOSE, WATER BYPASS NO.2HOSE, WATER BYPASS NO.2
-
1009362-09011 UNION, BYPASSUNION, BYPASS
-
1117661-24F00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1217670-50F00 THERMOSTAT, WATERTHERMOSTAT, WATER
-
1301547-06203 BOLTBOLT
-
13A09404-06431 CLAMPCLAMP
-
1417861-33E00 CONNECTOR, CYLINDER INLETCONNECTOR, CYLINDER INLET
-
1517863-33E00 O RINGO RING
-
1601550-06203 BOLTBOLT
-
1751827-12E00 CUSHION, RESERVOIR TANK RIGHT HANDCUSHION, RESERVOIR TANK RIGHT HAND
-
1853145-48B00 CUSHION, RESERVOIR TANK LEFT HANDCUSHION, RESERVOIR TANK LEFT HAND
-
1917680-33E00 SWITCH, RADIATOR FAN (INCL. 19A)SWITCH, RADIATOR FAN (INCL. 19A)
-
19A17689-50F00 O RINGO RING
-
2017910-24F00 TANK ASSY, RESERVOIR (INCL. 21)TANK ASSY, RESERVOIR (INCL. 21)
-
2117932-12C00 CAPCAP
-
2209136-06022 SCREW (6X20)SCREW (6X20)
-
2317981-21810 HOSE, RESERVOIR TANK INLETHOSE, RESERVOIR TANK INLET
-
2409401-08411 CLIPCLIP
-
2517982-38810 HOSE, OVER FLOWHOSE, OVER FLOW
-
2609407-18402 CLAMP, RESERVOIR TANK HOSECLAMP, RESERVOIR TANK HOSE
-
2709407-18402 CLAMP, RADIATOR OUTLET HOSECLAMP, RADIATOR OUTLET HOSE
