GASKET SET для Suzuki GSX-1300R Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1

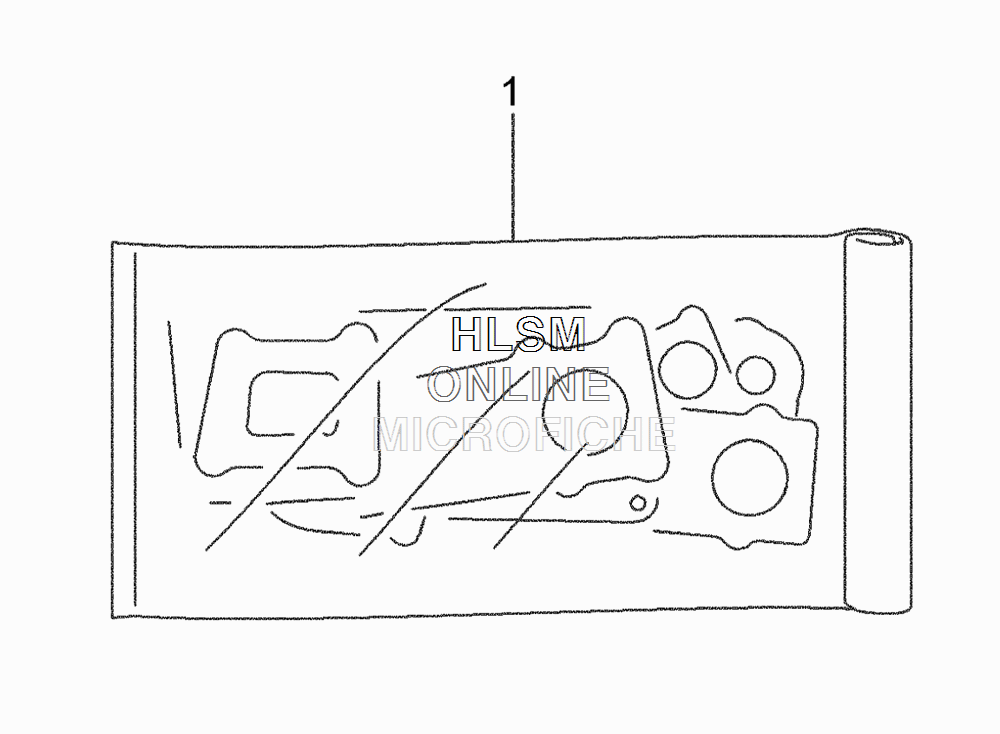

    11400-24874 GASKET SET (INCL. 2-20)
    GASKET SET (INCL. 2-20)
  • 2
    11141-24F00 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 3
    11173-24F00 GASKET, CYLINDER HEAD COVER NO.1
    GASKET, CYLINDER HEAD COVER NO.1
  • 4
    11178-33E00 GASKET, CYLINDER HEAD COVER NO.2
    GASKET, CYLINDER HEAD COVER NO.2
  • 5
    11241-24F00 GASKET, CYLINDER
    GASKET, CYLINDER
  • 6
    11318-24F01 GASKET, BREATHER COVER
    GASKET, BREATHER COVER
  • 7
    11482-24F00 GASKET, CLUTCH COVER (NA)
    GASKET, CLUTCH COVER (NA)
  • 8
    11483-24F00 GASKET, MAGNETO COVER
    GASKET, MAGNETO COVER
  • 9
    11485-24F00 GASKET, GEAR SHIFT COVER (NA)
    GASKET, GEAR SHIFT COVER (NA)
  • 10
    11489-24F00 GASKET, OIL PAN
    GASKET, OIL PAN
  • 10
    11489-24F01 GASKET, OIL PAN
    GASKET, OIL PAN
  • 11
    11491-24F00 GASKET, STARTER CLUTCH COVER
    GASKET, STARTER CLUTCH COVER
  • 11
    11491-24F01 GASKET, STARTER CLUTCH COVER
    GASKET, STARTER CLUTCH COVER
  • 12
    11492-24F00 GASKET, STARTER IDLE GEAR CAP
    GASKET, STARTER IDLE GEAR CAP
  • 13
    12837-24A10 GASKET, TENSIONER ADJUSTER
    GASKET, TENSIONER ADJUSTER
  • 14
    14181-22D01 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 15
    14181-33E00 GASKET, MUFFLER JOINT
    GASKET, MUFFLER JOINT
  • 16
    16491-24F00 O RING, OIL PUMP
    O RING, OIL PUMP
  • 17
    09161-11008 WASHER
    WASHER
  • 18
    09280-12012 O RING (D:2.4,ID:11.8)
    O RING (D:2.4,ID:11.8)
  • 19
    09280-19008 O RING (ID:20.3,DD:2.62)
    O RING (ID:20.3,DD:2.62)
  • 20
    09280-33004 O RING (D:3.1,ID:32.7)
    O RING (D:3.1,ID:32.7)
