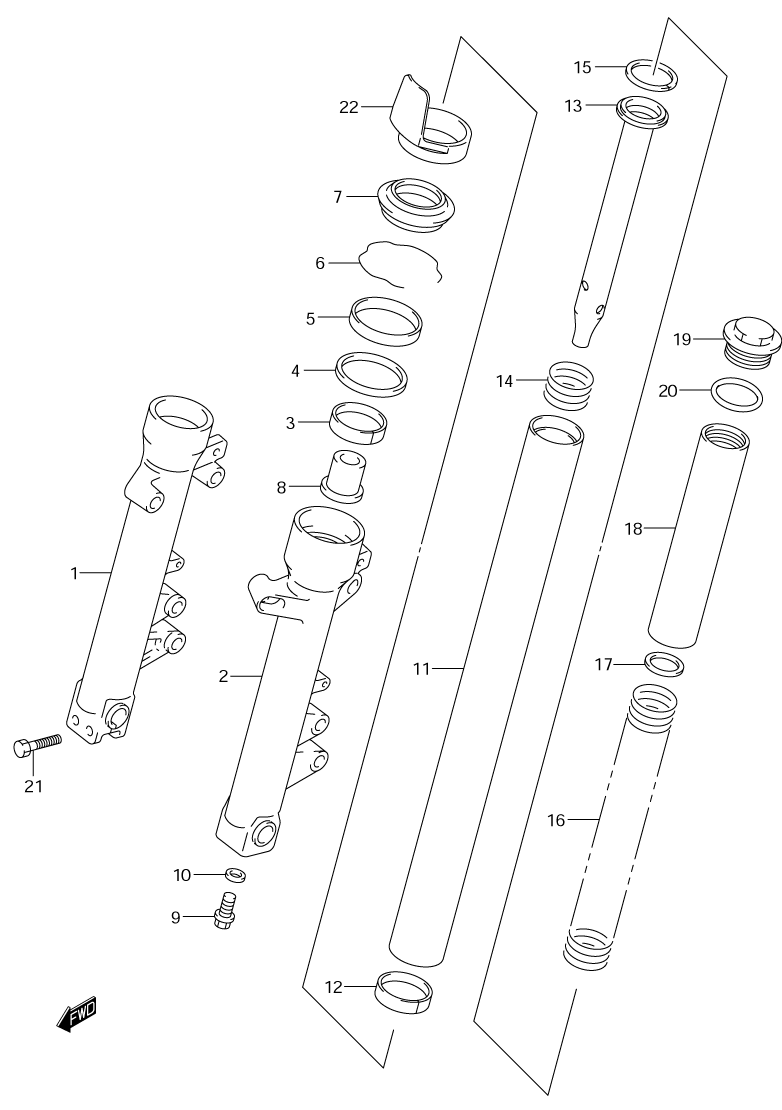

SUSPENSION - FRONT FORK для Suzuki GSF600S Y - 2000 года выпуска`
-
№АртикулНазвание
-
1A51103-31F10 DAMPER ASSY., FORK (FRONT/RIGHT)DAMPER ASSY., FORK (FRONT/RIGHT)
-
1B51104-31F10 DAMPER ASSY., FORK (FRONT/LEFT)DAMPER ASSY., FORK (FRONT/LEFT)
-
151130-31F00 ...TUBE (OUTER/RIGHT)...TUBE (OUTER/RIGHT)
-
251140-31F00 ...TUBE (OUTER/LEFT)...TUBE (OUTER/LEFT)
-
351167-26E10 ...METAL, SLIDE...METAL, SLIDE
-
451158-05A00 ...WASHER...WASHER
-
551153-14F00 ...SEAL, OIL...SEAL, OIL
-
651156-49440 ...CIRCLIP...CIRCLIP
-
751173-14F00 ...SEAL, DUST...SEAL, DUST
-
851195-33D10 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
951147-16510 ...BOLT...BOLT
-
1051148-41310 ...WASHER...WASHER
-
1151110-31F00 ...TUBE (INNER)...TUBE (INNER)
-
1251121-33D10 ...PISTON...PISTON
-
1351146-31F00 ...CYLINDER...CYLINDER
-
1451177-06C00 ...SPRING...SPRING
-
1551196-31F00 ...RING, PISTON...RING, PISTON
-
1651171-31F10 ...SPRING (FRONT)...SPRING (FRONT)
-
1751356-10D03 ...WASHER...WASHER
-
1851176-14A20 ...SPACER, SPRING...SPACER, SPRING
-
1951351-10D00 ...CAP...CAP
-
2009280-32001 ...O-RING...O-RING
-
2101550-08457 ...BOLT (RIGHT)...BOLT (RIGHT)
-
2251201-31F00 ...PROTECTOR...PROTECTOR
