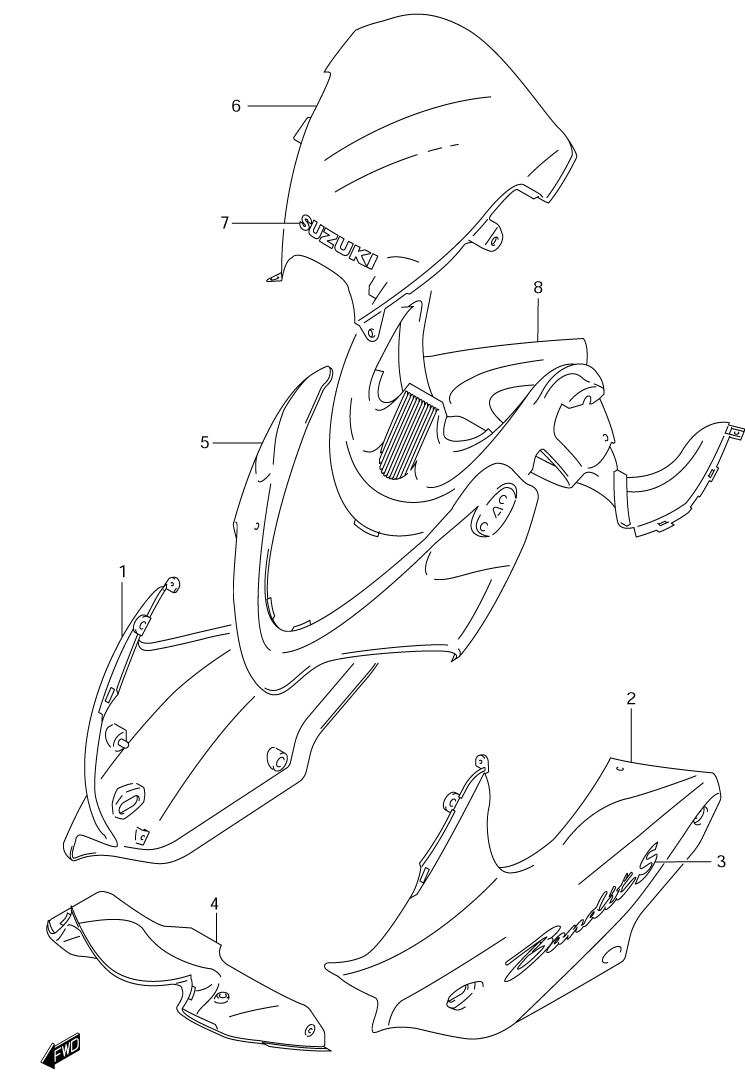

COWLING BODY для Suzuki GSF600S Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1-1
    94401-31F10-Y7M COWL ASSY., SIDE - RIGHT (Y7M - RED)
    COWL ASSY., SIDE - RIGHT (Y7M - RED)
  • 1-2
    94401-31F00-33J COWL ASSY., SIDE - RIGHT (33J - BLACK) (USA)
    COWL ASSY., SIDE - RIGHT (33J - BLACK) (USA)
  • 1-3
    94401-31F00-1LF COWL ASSY., SIDE - RIGHT (1LF - BLUE) (CANADA)
    COWL ASSY., SIDE - RIGHT (1LF - BLUE) (CANADA)
  • 2-1
    94402-31F10-Y7M COWL ASSY., SIDE - LEFT (Y7M - RED)
    COWL ASSY., SIDE - LEFT (Y7M - RED)
  • 2-2
    94402-31F00-33J COWL ASSY., SIDE - LEFT (33J - BLACK) (USA)
    COWL ASSY., SIDE - LEFT (33J - BLACK) (USA)
  • 2-3
    94402-31F00-1LF COWL ASSY., SIDE - LEFT (1LF - BLUE) (CANADA)
    COWL ASSY., SIDE - LEFT (1LF - BLUE) (CANADA)
  • 3-1
    68681-31F00-CU9 ...EMBLEM, SIDE (CU9 - ) (FOR Y7M)
    ...EMBLEM, SIDE (CU9 - ) (FOR Y7M)
  • 3-2
    68681-31F00-CV1 ...EMBLEM, SIDE (CV1 - ) (USA) (FOR 33J)
    ...EMBLEM, SIDE (CV1 - ) (USA) (FOR 33J)
  • 3-3
    68681-31F00-CV2 ...EMBLEM, SIDE (CV2 - ) (CANADA) (FOR 1LF)
    ...EMBLEM, SIDE (CV2 - ) (CANADA) (FOR 1LF)
  • 4-1
    94430-31F00-Y7M COWLING, CENTER (Y7M - RED)
    COWLING, CENTER (Y7M - RED)
  • 4-2
    94430-31F00-33J COWLING, CENTER (33J - BLACK) (USA)
    COWLING, CENTER (33J - BLACK) (USA)
  • 4-3
    94430-31F00-1LF COWLING, CENTER (1LF - BLUE) (CANADA)
    COWLING, CENTER (1LF - BLUE) (CANADA)
  • 5
    94440-31F00-35W COWLING, FRONT (35W - GRAY)
    COWLING, FRONT (35W - GRAY)
  • 6
    94600-31F00-13L WINDSCREEN ASSY. (13L - SILVER)
    WINDSCREEN ASSY. (13L - SILVER)
  • 7
    68280-02F00-13L ...EMBLEM (13L - SILVER)
    ...EMBLEM (13L - SILVER)
  • 8
    94640-31F00 PANEL, METER
    PANEL, METER
