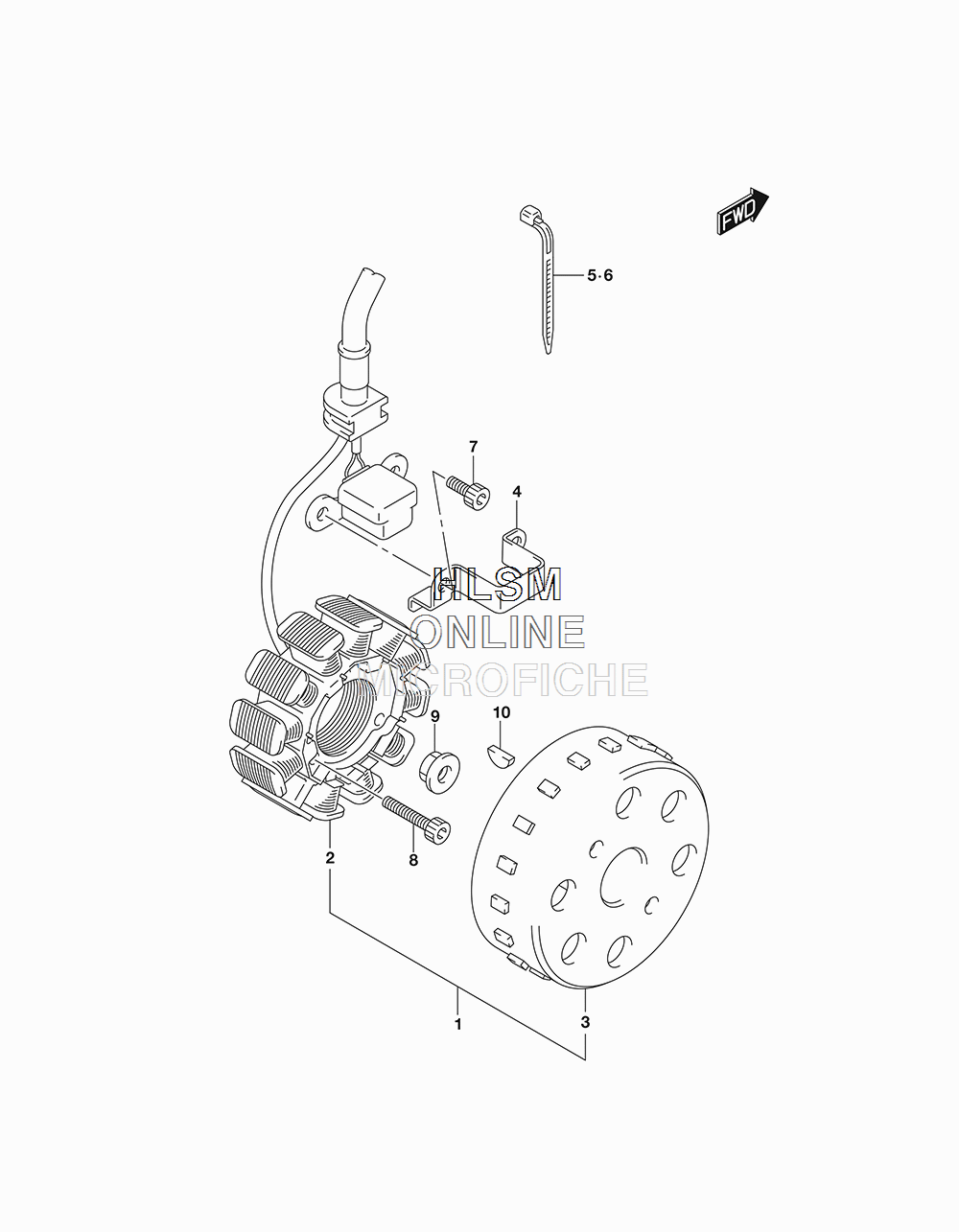

MAGNETO для Suzuki RM-Z250L8 - 2018 года выпуска
-
№АртикулНазвание
-
132100-49H00 MAGNETO ASSYMAGNETO ASSY
-
232101-28HA0 ...STATOR ASSY, MAGNETO...STATOR ASSY, MAGNETO
-
332102-49H00 ...ROTOR ASSY, MAGNETO...ROTOR ASSY, MAGNETO
-
432371-35G00 CLAMP, MAGNETO LEADCLAMP, MAGNETO LEAD
-
509407-18402 CLAMP (L:165)CLAMP (L:165)
-
609407-25401 CLAMP (L:235)CLAMP (L:235)
-
707130-0512A BOLTBOLT
-
807130-0525A BOLTBOLT
-
908316-1012A NUTNUT
-
1008341-31039 KEYKEY
