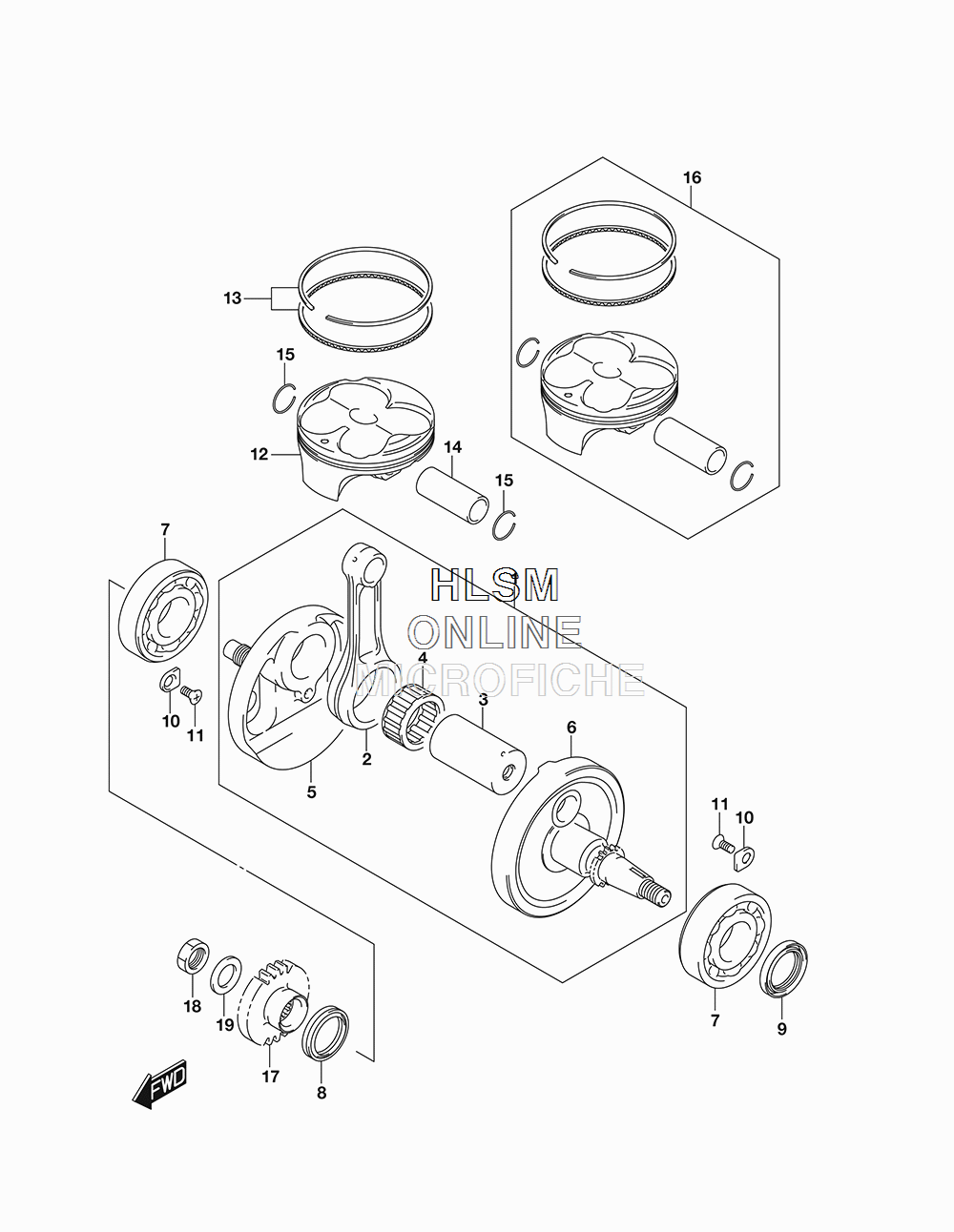

CRANKSHAFT W/ PISTON для Suzuki RM-Z250L8 - 2018 года выпуска
-
№АртикулНазвание
-
112200-49H20 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
212161-49H10-0B0 ...ROD, CONNECTING...ROD, CONNECTING
-
312210-49H10 ...PIN, CRANK...PIN, CRANK
-
409263-30060-0B0 ...BEARING (30X38X18)...BEARING (30X38X18)
-
512220-49H10 ...CRANKSHAFT, (RH)...CRANKSHAFT, (RH)
-
612261-49H10 ...CRANKSHAFT, (LH)...CRANKSHAFT, (LH)
-
709262-30122 BEARING (30X63X16)BEARING (30X63X16)
-
809283-30061 OIL SEAL (30X40X7) (RH)OIL SEAL (30X40X7) (RH)
-
909283-30069 OIL SEAL (30X40X6) (LH)OIL SEAL (30X40X6) (LH)
-
1024741-37F00 RETAINER, CRANKSHAFT BEARINGRETAINER, CRANKSHAFT BEARING
-
1109139-06209 SCREW (6X15)SCREW (6X15)
-
1212111-49H20-0F0 PISTONPISTON
-
1312140-49810 RING SET, PISTONRING SET, PISTON
-
1412151-49H10 PIN, PISTONPIN, PISTON
-
1509381-16001 SNAP RINGSNAP RING
-
1612110-49830 PISTON KIT (OPT)PISTON KIT (OPT)
-
1721111-49H00 GEAR, PRIMARY DRIVE (NT:19)GEAR, PRIMARY DRIVE (NT:19)
-
1809140-16037 NUTNUT
-
1909164-16002 WASHERWASHER
