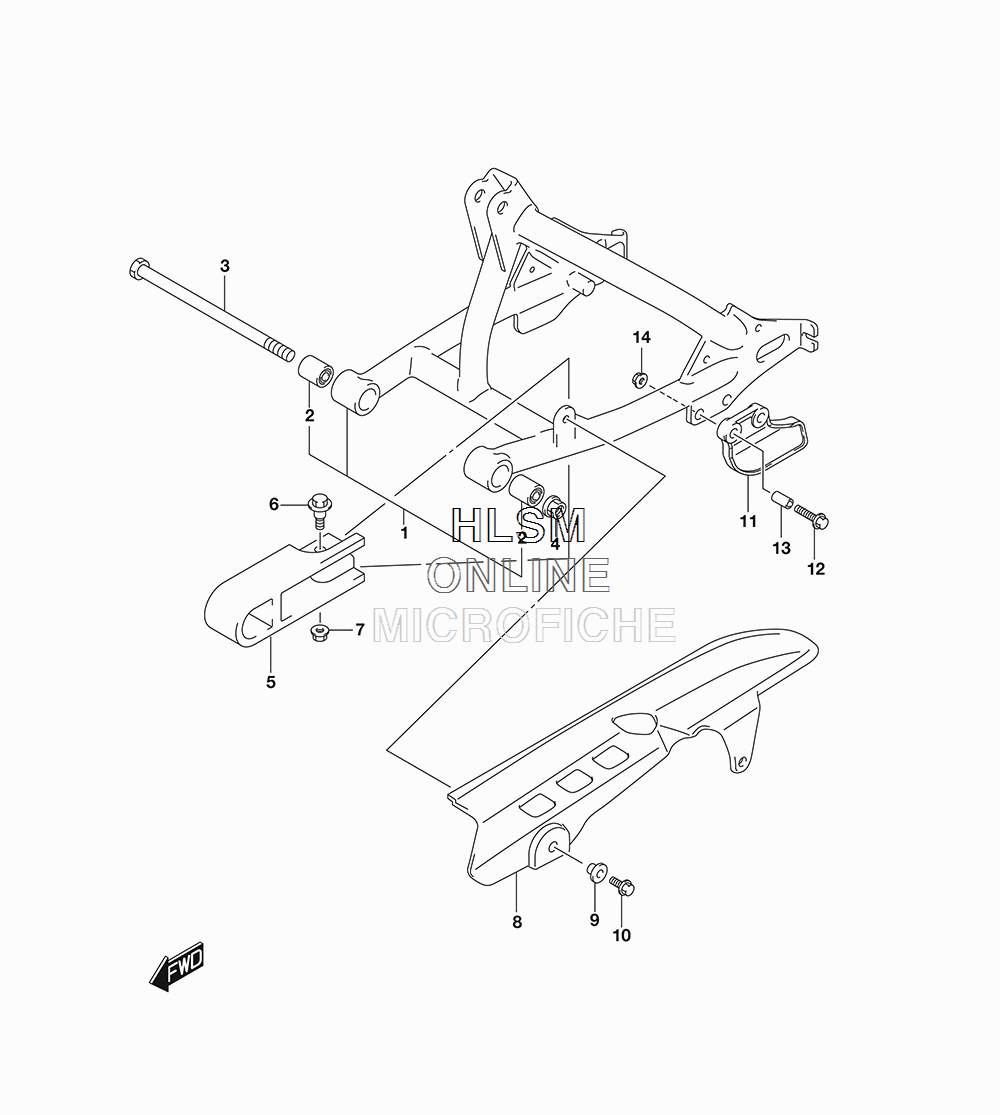

SUSPENSION - REAR SWINGARM для Suzuki DR-Z70L8 - 2018 года выпуска`
-
№АртикулНазвание
-
161000-14H10-13L SWINGARM ASSY, REAR (13L - SILVER)SWINGARM ASSY, REAR (13L - SILVER)
-
209319-10043 ...BUSH (10X23X30)...BUSH (10X23X30)
-
361211-14H00 SHAFT, PIVOTSHAFT, PIVOT
-
408319-3110A NUTNUT
-
561273-14H00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
609111-06092 BOLT (6X19)BOLT (6X19)
-
708316-1006A NUTNUT
-
861311-14H00 CASE, CHAINCASE, CHAIN
-
909169-06040 WASHERWASHER
-
1001547-0612A BOLTBOLT
-
1161341-14H00 GUIDE, CHAINGUIDE, CHAIN
-
1209116-06177 BOLT (6X25)BOLT (6X25)
-
1309180-06304 SPACER (6.1X8X15)SPACER (6.1X8X15)
-
1408316-1006A NUTNUT
