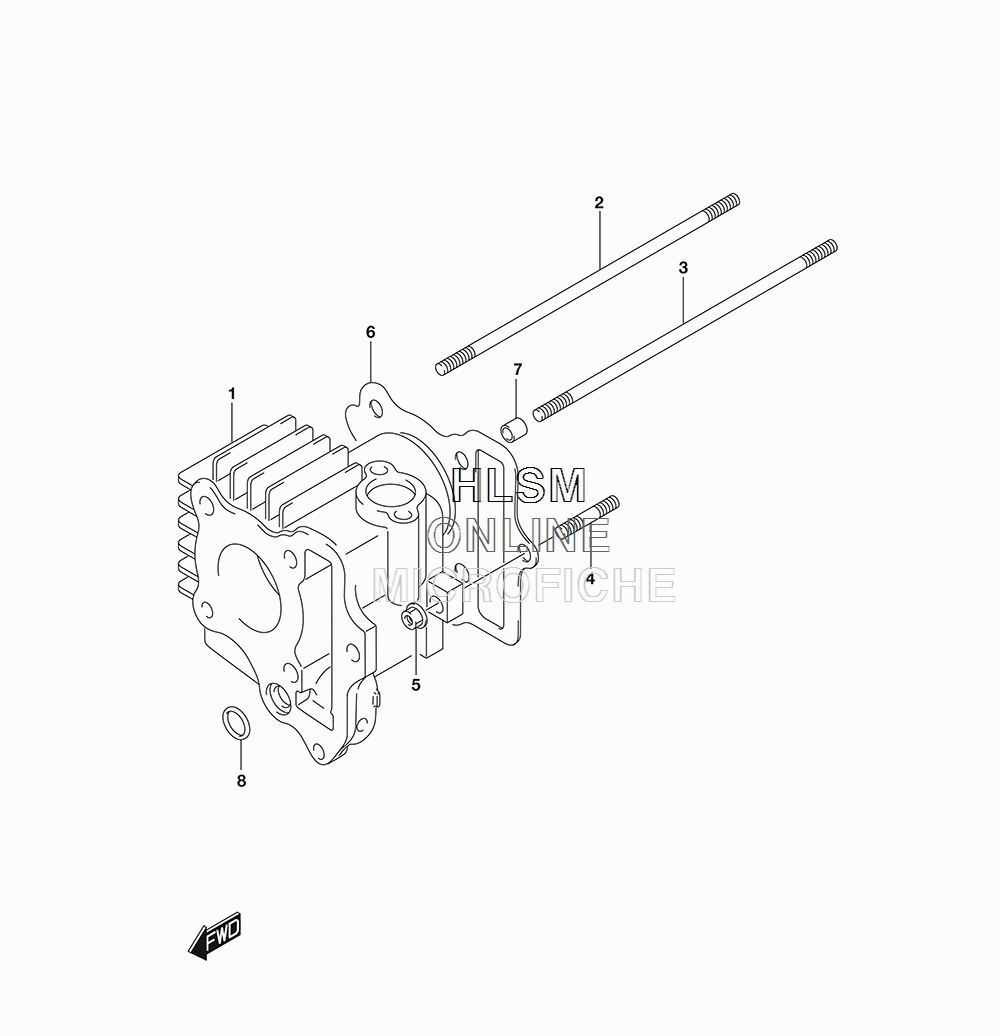

CYLINDER для Suzuki DR-Z70L8 - 2018 года выпуска
-
№АртикулНазвание
-
111211-02A10-0F0 CYLINDERCYLINDER
-
209108-06054 STUD BOLTSTUD BOLT
-
309108-06055 STUD BOLTSTUD BOLT
-
409108-06124 STUD BOLTSTUD BOLT
-
508316-1006A NUTNUT
-
611241-02A11 GASKET, CYLINDERGASKET, CYLINDER
-
709206-08001 PIN (8X11)PIN (8X11)
-
809280-12012 O RING (D:2.4,ID:11.8)O RING (D:2.4,ID:11.8)
