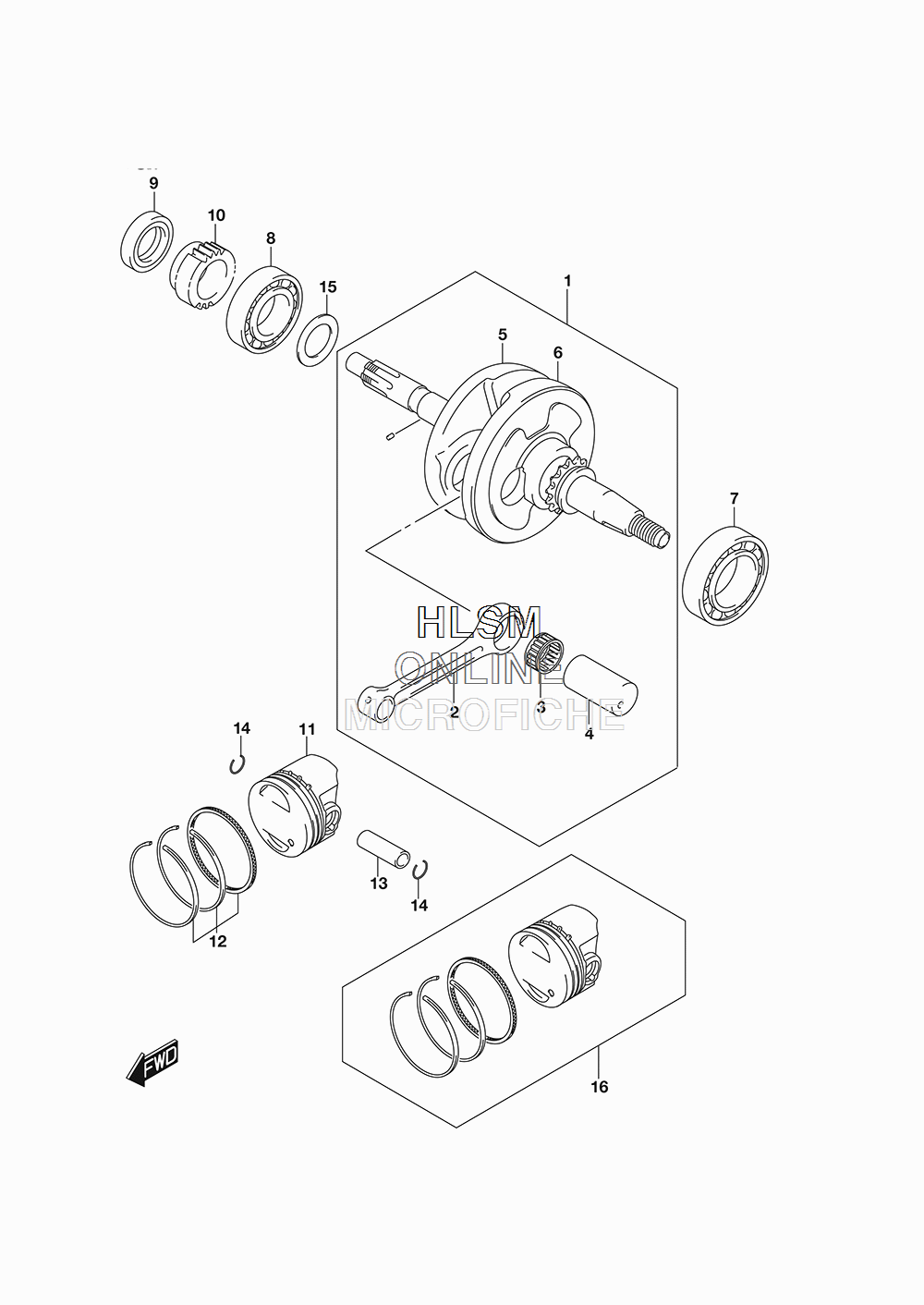

CRANKSHAFT W/ PISTON для Suzuki DR-Z70L8 - 2018 года выпуска`
-
№АртикулНазвание
-
112200-14H01 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
212161-14H00-0C0 ...CONNROD...CONNROD
-
312211-09403-0A0 ...PIN...PIN
-
409263-22072-0B0 ...BEARING (22X28X14)...BEARING (22X28X14)
-
512220-14H00 ...CRANKSHAFT (RH)...CRANKSHAFT (RH)
-
612260-14H01 ...CRANKSHAFT (LH)...CRANKSHAFT (LH)
-
709262-35021-0A0 BEARING (35X62X14)BEARING (35X62X14)
-
809262-20073 BEARING (20X52X15)BEARING (20X52X15)
-
909282-20005 OIL SEAL (20X32X7)OIL SEAL (20X32X7)
-
1016321-09411 GEAR, OIL PUMP DRIVE (NT:17)GEAR, OIL PUMP DRIVE (NT:17)
-
1112111-14H00-0F0 PISTONPISTON
-
1212140-09D20 RING SET, PISTONRING SET, PISTON
-
1312151-02A00 PIN, PISTONPIN, PISTON
-
1409381-13001 SNAP RINGSNAP RING
-
15-109181-20187 SHIM (T:0.60)SHIM (T:0.60)
-
15-209181-20009 SHIM (T:0.65)SHIM (T:0.65)
-
15-309181-20188 SHIM (T:0.70)SHIM (T:0.70)
-
15-409181-20189 SHIM (T:0.75)SHIM (T:0.75)
-
15-509181-20190 SHIM (T:0.80)SHIM (T:0.80)
-
15-609181-20191 SHIM (T:0.85)SHIM (T:0.85)
-
15-709181-20192 SHIM (T:0.90)SHIM (T:0.90)
-
15-809181-20193 SHIM (T:0.95)SHIM (T:0.95)
-
15-909181-20195 SHIM (T:1.00)SHIM (T:1.00)
-
15-1009181-20197 SHIM (T:1.05)SHIM (T:1.05)
-
15-1109181-20200 SHIM (T:1.10)SHIM (T:1.10)
-
15-1209181-20202 SHIM (T:1.15)SHIM (T:1.15)
-
15-1309181-20204 SHIM (T:1.20)SHIM (T:1.20)
-
15-1409181-20207 SHIM (T:1.25)SHIM (T:1.25)
-
15-1509181-20209 SHIM (T:1.30)SHIM (T:1.30)
-
1612100-14H00-050 PISTON SET (OS:0.5) (OPT)PISTON SET (OS:0.5) (OPT)
