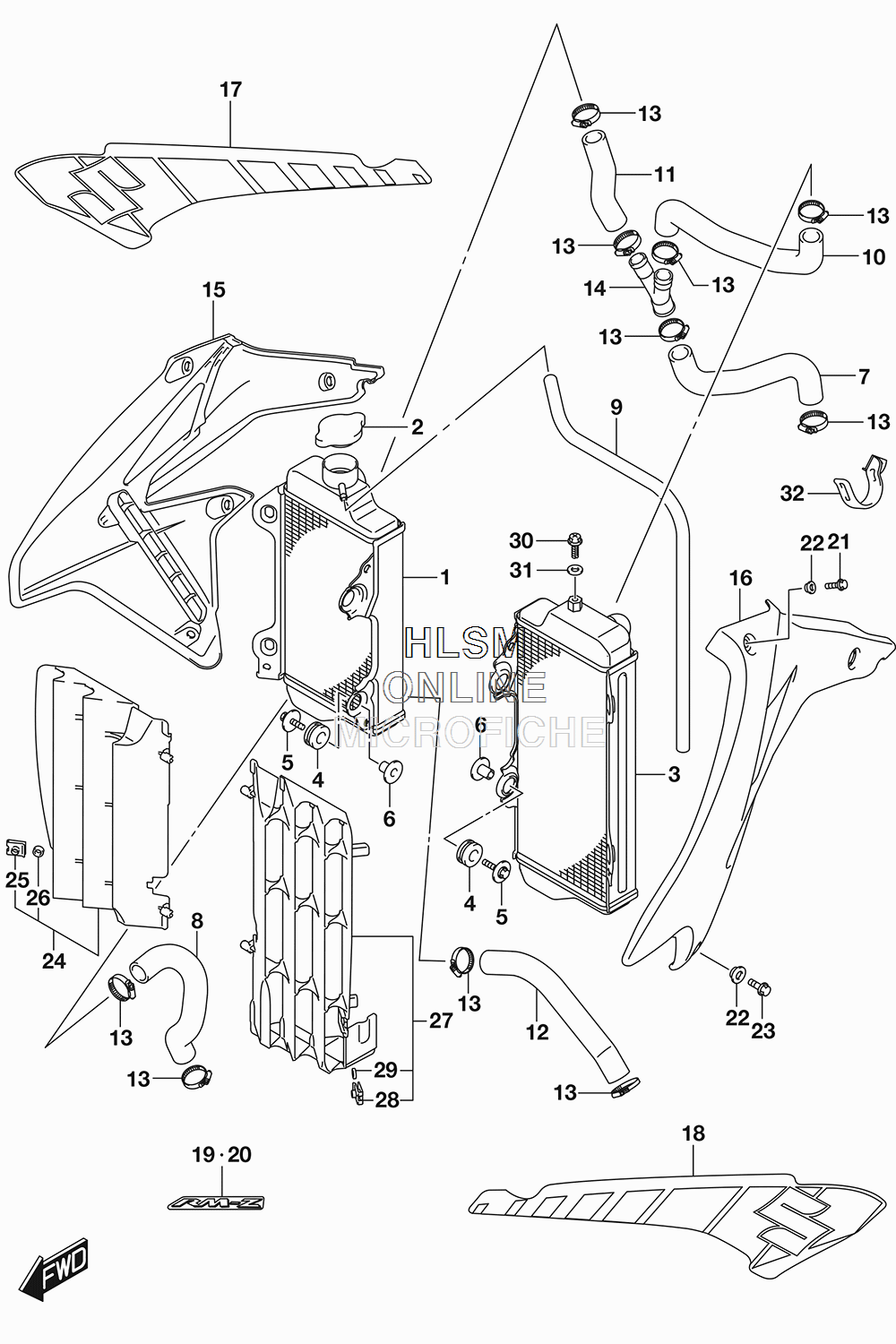

RADIATOR для Suzuki RM-Z450L7 - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    17710-28H21 RADIATOR, (RH)
    RADIATOR, (RH)
  • 2
    17730-08J00 CAP, RADIATOR
    CAP, RADIATOR
  • 3
    17720-28H20 RADIATOR, (LH)
    RADIATOR, (LH)
  • 4
    17787-19A00 CUSHION, RADIATOR SUPPORT
    CUSHION, RADIATOR SUPPORT
  • 5
    09116-06186 BOLT (6X25)
    BOLT (6X25)
  • 6
    09180-06243 SPACER (6.5X10.5X14.1)
    SPACER (6.5X10.5X14.1)
  • 7
    17851-28H10 HOSE, RADIATOR INLET
    HOSE, RADIATOR INLET
  • 8
    17852-28H10 HOSE, RADIATOR OUTLET
    HOSE, RADIATOR OUTLET
  • 9
    09351-50803-00A HOSE (5X8X1000) (L:1000->700)
    HOSE (5X8X1000) (L:1000->700)
  • 10
    17853-28H20 HOSE, RADIATOR JOINT UPPER NO.1
    HOSE, RADIATOR JOINT UPPER NO.1
  • 11
    17854-28H10 HOSE, RADIATOR JOINT UPPER NO.2
    HOSE, RADIATOR JOINT UPPER NO.2
  • 12
    17855-28H00 HOSE, JOINT LOWER
    HOSE, JOINT LOWER
  • 13
    09402-28513 CLAMP
    CLAMP
  • 14
    17856-28H00 JOINT, RADIATOR HOSE
    JOINT, RADIATOR HOSE
  • 15
    17761-28H02-GY8 COVER, RADIATOR (RH) (GY8 - YELLOW/BLACK)
    COVER, RADIATOR (RH) (GY8 - YELLOW/BLACK)
  • 16
    17762-28H02-GY8 COVER, RADIATOR (LH) (GY8 - YELLOW/BLACK)
    COVER, RADIATOR (LH) (GY8 - YELLOW/BLACK)
  • 17
    68111-28H00-BDT TAPE, FUEL TANK COVER, (RH) (BDT - WHITE/GRAY/GRAY/BLACK/ORANGE/YELLOW)
    TAPE, FUEL TANK COVER, (RH) (BDT - WHITE/GRAY/GRAY/BLACK/ORANGE/YELLOW)
  • 18
    68121-28H00-BDT TAPE, FUEL TANK COVER, (LH) (BDT - WHITE/GRAY/GRAY/BLACK/ORANGE/YELLOW)
    TAPE, FUEL TANK COVER, (LH) (BDT - WHITE/GRAY/GRAY/BLACK/ORANGE/YELLOW)
  • 19
    68666-28H00-GGM EMBLEM, RADIATOR COVER (GGM - WHITE/GRAY/ORANGE/BLACK)
    EMBLEM, RADIATOR COVER (GGM - WHITE/GRAY/ORANGE/BLACK)
  • 20
    68666-28H00-GGM EMBLEM, RADIATOR COVER (GGM - WHITE/GRAY/ORANGE/BLACK)
    EMBLEM, RADIATOR COVER (GGM - WHITE/GRAY/ORANGE/BLACK)
  • 21
    09116-06221 BOLT (6X12)
    BOLT (6X12)
  • 22
    63191-28H00 WASHER, FRONT FENDER
    WASHER, FRONT FENDER
  • 23
    01547-0616A BOLT
    BOLT
  • 24
    17801-28H10 LOUVER, RADIATOR (RH)
    LOUVER, RADIATOR (RH)
  • 25
    09148-06017 ...NUT
    ...NUT
  • 26
    09180-06129 ...SPACER (6.2X10X2.2)
    ...SPACER (6.2X10X2.2)
  • 27
    17802-28H10 LOUVER, RADIATOR (LH)
    LOUVER, RADIATOR (LH)
  • 28
    09148-06017 ...NUT
    ...NUT
  • 29
    09180-06129 ...SPACER (6.2X10X2.2)
    ...SPACER (6.2X10X2.2)
  • 30
    17568-50F00 BOLT, AIR RELEASE
    BOLT, AIR RELEASE
  • 31
    09168-06026 GASKET (6.4X11.5X0.8)
    GASKET (6.4X11.5X0.8)
  • 32
    17858-28H00 CLAMP, RADIATOR HOSE
    CLAMP, RADIATOR HOSE
