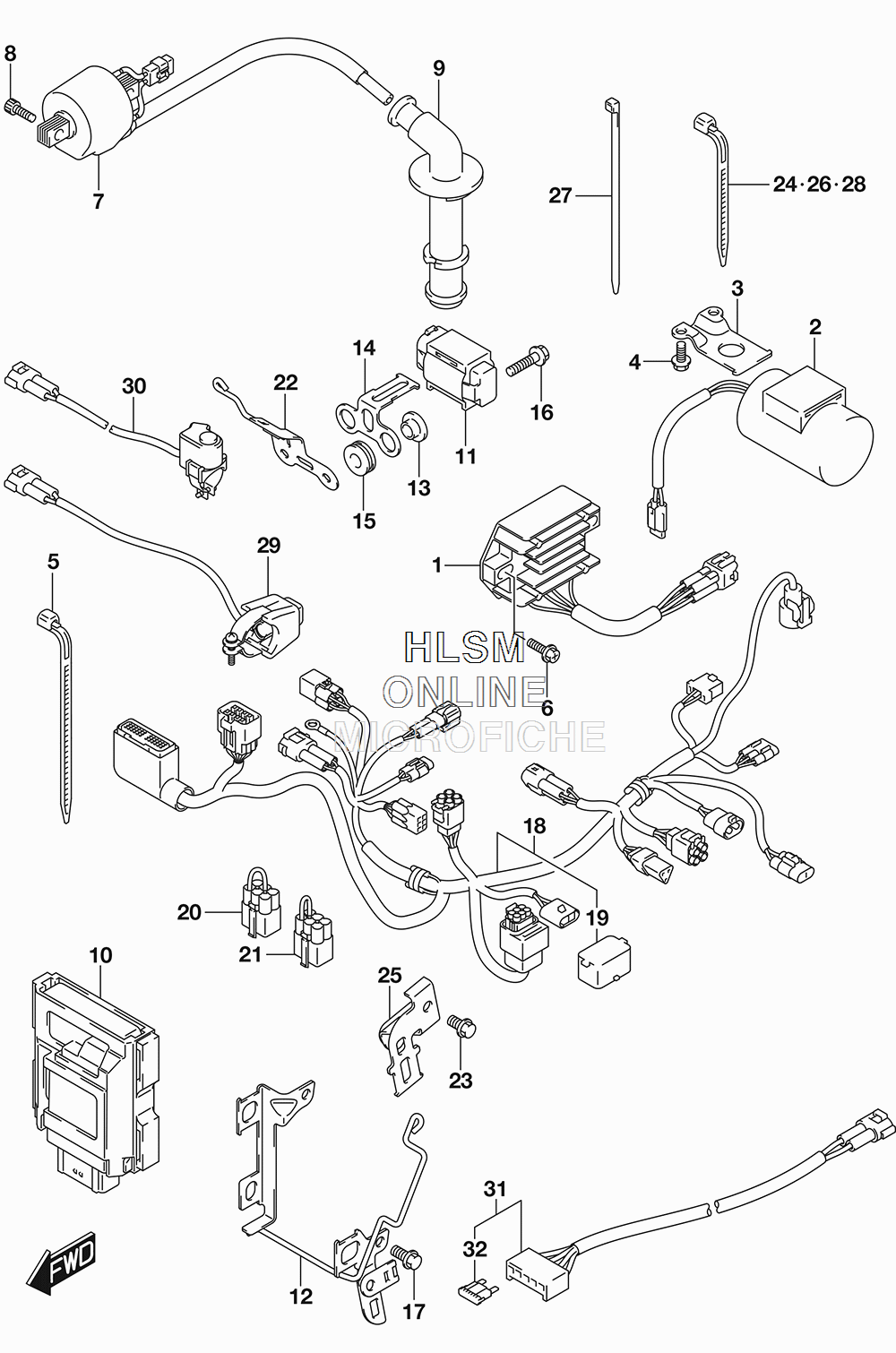

ELECTRICAL для Suzuki RM-Z450L7 - 2017 года выпуска`
-
№АртикулНазвание
-
132800-28H00 RECTIFIER ASSYRECTIFIER ASSY
-
233640-28H00 CONDENSER ASSYCONDENSER ASSY
-
333641-28H00 BRACKET, CONDENSERBRACKET, CONDENSER
-
409103-06188 BOLT (6X10)BOLT (6X10)
-
509407-25401 CLAMP (L:235)CLAMP (L:235)
-
602162-0620C SCREWSCREW
-
733410-28H00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
807130-0620A BOLTBOLT
-
933510-28H00 CAP ASSY, SPARK PLUGCAP ASSY, SPARK PLUG
-
1032920-28HG0 CONTROL UNIT, FICONTROL UNIT, FI
-
1133960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
1232931-28H00 BRACKET, FI CONTROL UNITBRACKET, FI CONTROL UNIT
-
1309180-06331 SPACER (6.2X8.4X10.9)SPACER (6.2X8.4X10.9)
-
1433961-28HA0 BRACKET, FUEL CUT SENSORBRACKET, FUEL CUT SENSOR
-
1509320-08501 CUSHIONCUSHION
-
1601500-0630A BOLTBOLT
-
1701547-0612A BOLTBOLT
-
1836610-28H60 HARNESS, WIRINGHARNESS, WIRING
-
1936654-46H00 ...CAP, TS...CAP, TS
-
2036852-28H00 WIRE, SHORTWIRE, SHORT
-
2136852-49H00 WIRE, SHORTWIRE, SHORT
-
2236672-28H30 BRACKET, COUPLERBRACKET, COUPLER
-
2301547-0610A BOLTBOLT
-
2409407-11401 CLAMP (L:95)CLAMP (L:95)
-
2536672-28H20 BRACKET, COUPLERBRACKET, COUPLER
-
2609407-14403 CLAMP (L:125)CLAMP (L:125)
-
2709407-14407 CLAMP (L:145)CLAMP (L:145)
-
2809407-18402 CLAMP (L:165)CLAMP (L:165)
-
2937820-36E00 SWITCH ASSY, ENGINE STOPSWITCH ASSY, ENGINE STOP
-
3037820-28H01 SWITCH ASSY, LAUNCH CONTROLSWITCH ASSY, LAUNCH CONTROL
-
3136890-28H00 WIRE, BATTERY (OPT)WIRE, BATTERY (OPT)
-
3209481-10101 ...FUSE (10A) (OPT)...FUSE (10A) (OPT)
