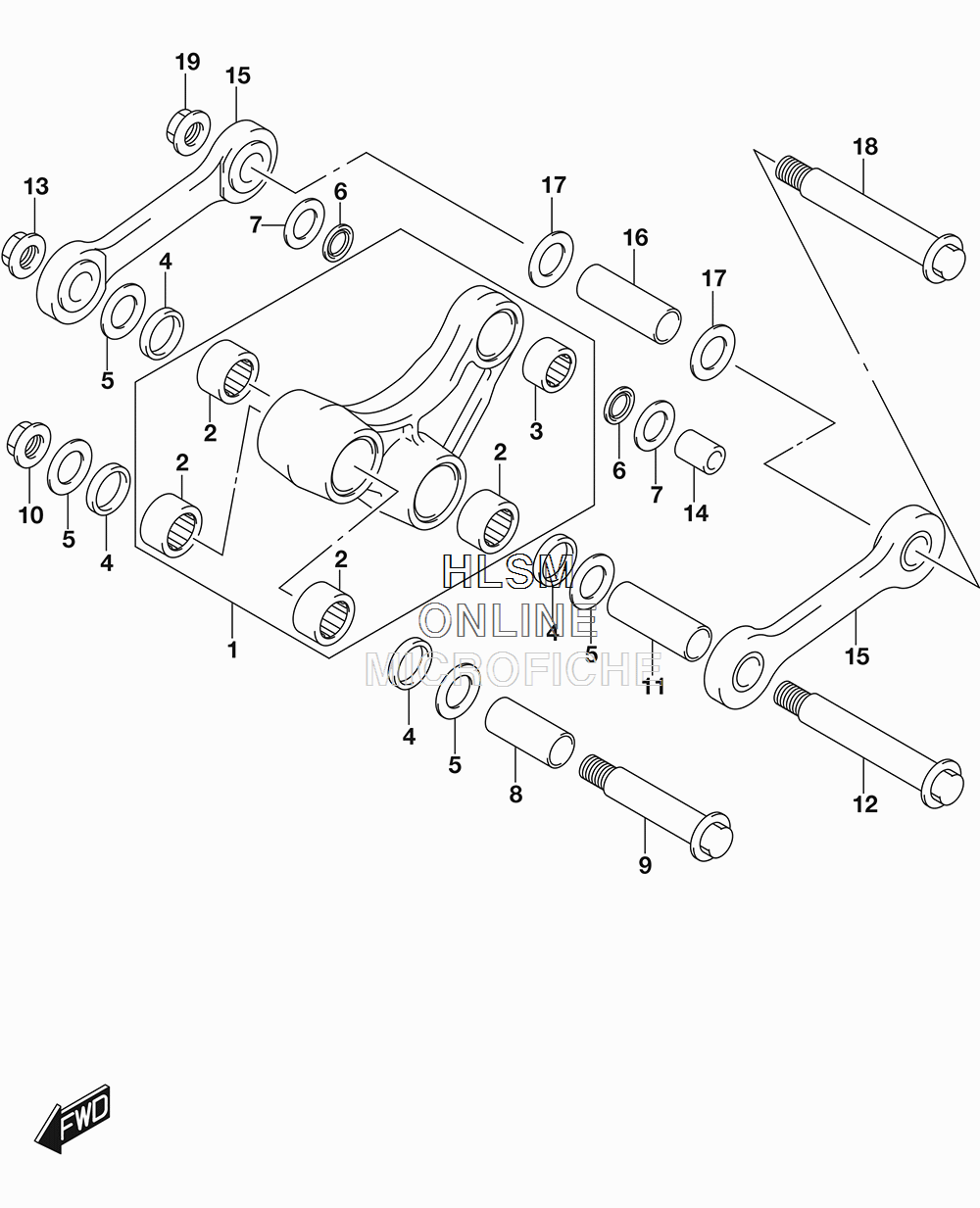

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki DR-Z400SL7 - 2017 года выпуска`
-
№АртикулНазвание
-
162600-37830 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20086 ...BEARING (20X27X15)...BEARING (20X27X15)
-
309263-16033 ...BEARING (16X22X12)...BEARING (16X22X12)
-
462624-14500 SEAL, DUST (19X27X4)SEAL, DUST (19X27X4)
-
562647-37E00 THRUST WASHER (20X32.5X1.6)THRUST WASHER (20X32.5X1.6)
-
609284-16005 OIL SEAL (16X22X2.5)OIL SEAL (16X22X2.5)
-
762685-37E00 THRUST WASHER (16X28.5X1.6)THRUST WASHER (16X28.5X1.6)
-
862317-37E10 SPACER, REAR CUSHION LEVER FRONTSPACER, REAR CUSHION LEVER FRONT
-
962658-37E01 BOLT, FRONT (12X76)BOLT, FRONT (12X76)
-
1009159-12056 NUTNUT
-
1162646-37E10 SPACER, CENTER (15X20X57.4)SPACER, CENTER (15X20X57.4)
-
1262621-37E01 BOLT, CENTER (12X100)BOLT, CENTER (12X100)
-
1309159-12056 NUTNUT
-
1462684-36E10 SPACER, REAR (10X16X22)SPACER, REAR (10X16X22)
-
1562640-37E11 ROD SET, REAR CUSHIONROD SET, REAR CUSHION
-
1662646-37E10 SPACER, ROD (15X20X57.4)SPACER, ROD (15X20X57.4)
-
1762647-37E00 THRUST WASHER REAR CUSHION RODTHRUST WASHER REAR CUSHION ROD
-
1862621-37E01 BOLT, ROD (12X100)BOLT, ROD (12X100)
-
1909159-12056 NUTNUT
