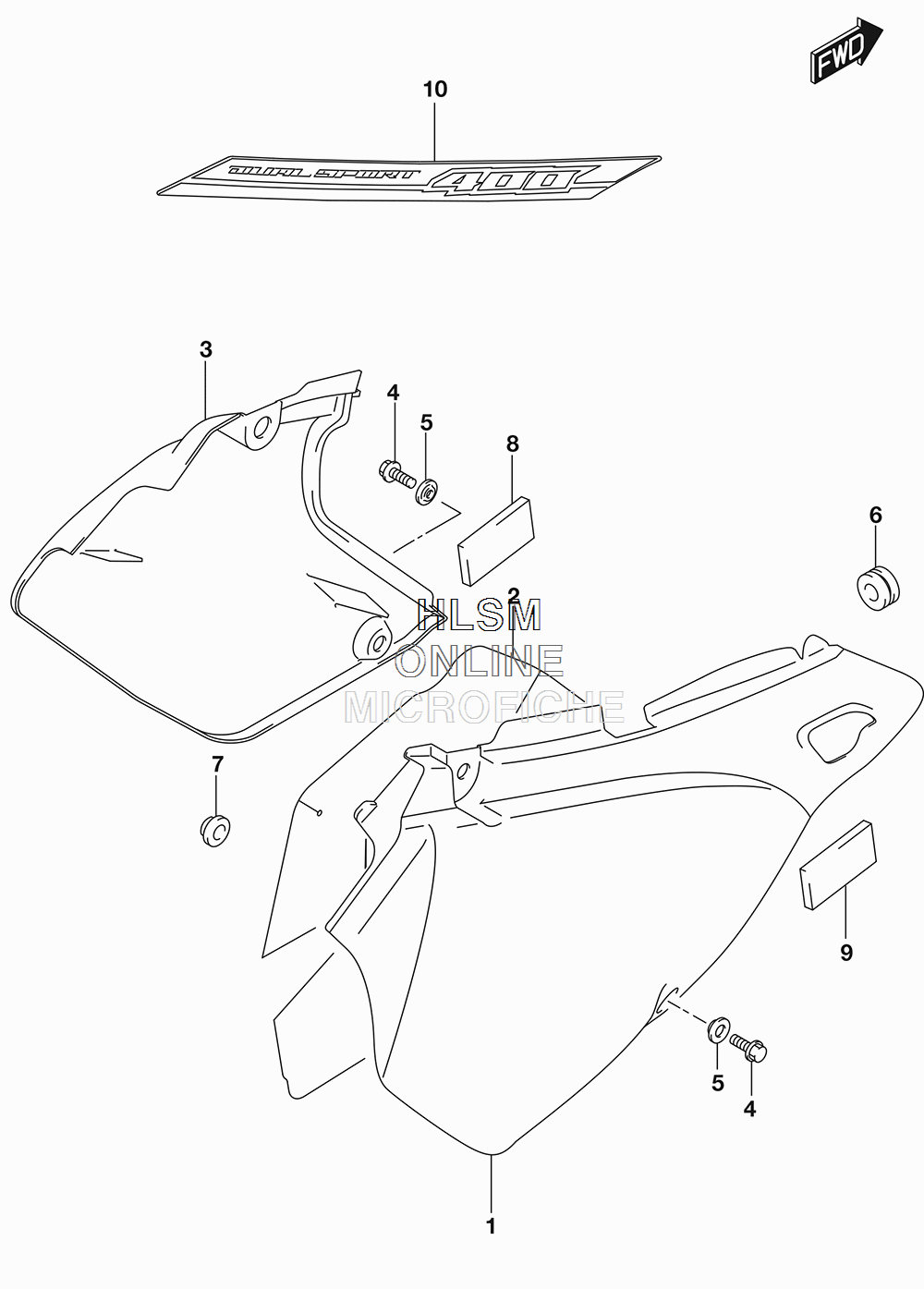

FRAME COVER (EXCEPT CALIF.) для Suzuki DR-Z400SL7 - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    47111-29FC0-019 COVER, FRAME (RH) (019 - BLACK)
    COVER, FRAME (RH) (019 - BLACK)
  • 2
    47166-29F00 SHIELD, FRAME COVER (RH)
    SHIELD, FRAME COVER (RH)
  • 3
    47211-29FA0-019 COVER, FRAME (LH) (019 - BLACK)
    COVER, FRAME (LH) (019 - BLACK)
  • 4
    09103-06273 BOLT (6X12)
    BOLT (6X12)
  • 5
    09169-06031 WASHER
    WASHER
  • 6
    09320-06504 CUSHION
    CUSHION
  • 7
    09321-10018 CUSHION
    CUSHION
  • 8
    47161-29F00 CUSHION, FRAME COVER (LH)
    CUSHION, FRAME COVER (LH)
  • 9
    71762-65G10 CUSHION, FRAME COVER (RH) FRONT
    CUSHION, FRAME COVER (RH) FRONT
  • 10
    68135-29FL0-BCJ TAPE, FRAME COVER (RH) (BCJ - BLUE/GRAY/BLACK/SILVER)
    TAPE, FRAME COVER (RH) (BCJ - BLUE/GRAY/BLACK/SILVER)
