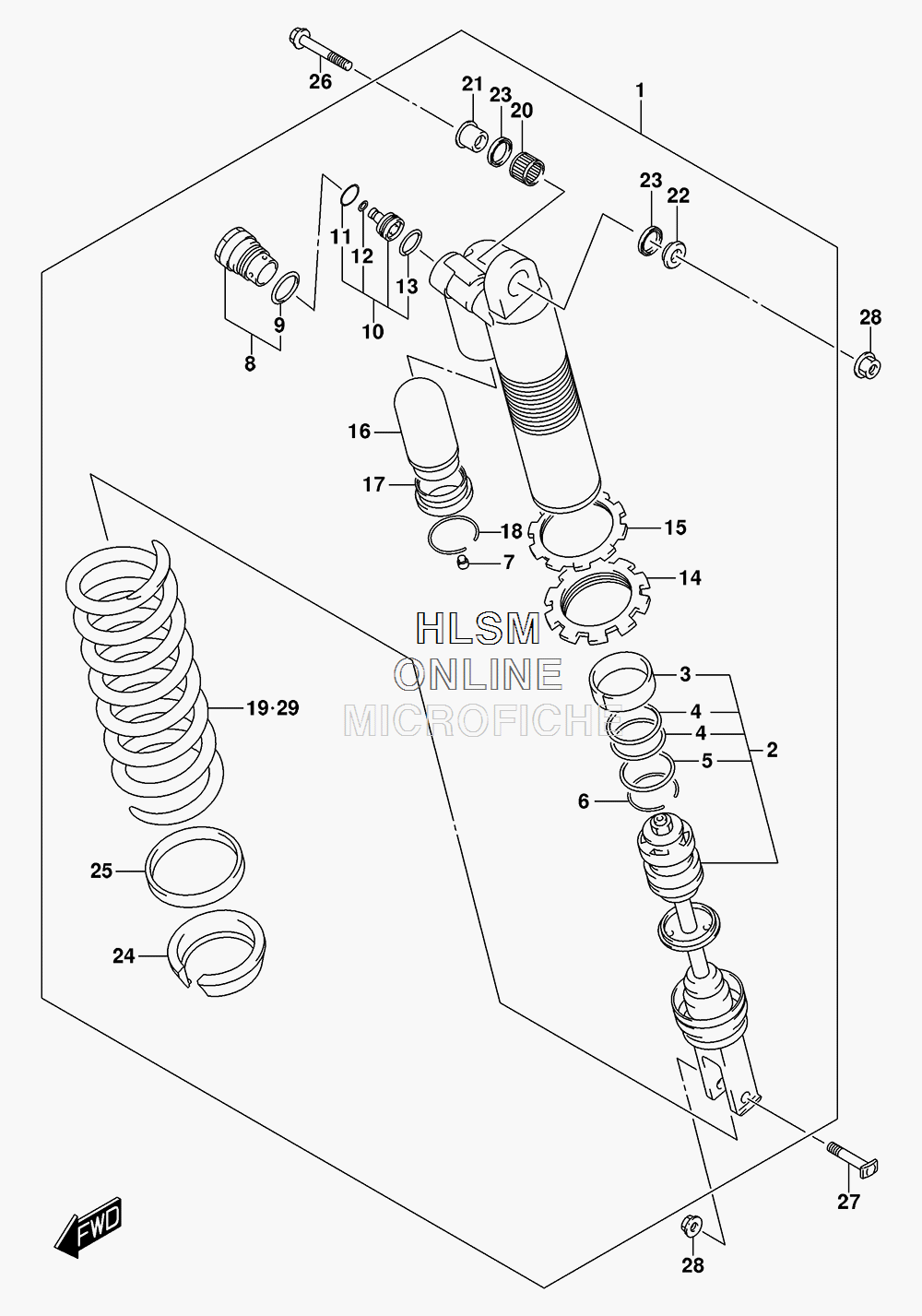

SUSPENSION - SHOCKS REAR для Suzuki RM-Z250 [RMZ250] - 2016 года выпуска

№

Артикул

Название
1

62100-49HF0-YKS ABSORBER ASSY,RR SHOCK (RED)

ABSORBER ASSY,RR SHOCK (RED)
2

62120-49HE0 ...ROD SUBASSY, PISTON

...ROD SUBASSY, PISTON
3

62131-49HE0 ......RING, PISTON

......RING, PISTON
4

62152-49HE0 ......O RING

......O RING
5

62153-49HE0 ......O RING

......O RING
6

62277-49HE0 ...RING, STOP

...RING, STOP
7

51294-40400 ...CAP, VALVE AIR

...CAP, VALVE AIR
8

62130-49HE0 ...VALVE ASSY

...VALVE ASSY
9

62133-49HE0 ......O RING

......O RING
10

62170-49HE0 ...VALVE, COMP

...VALVE, COMP
11

62135-49HE0 ......WASHER

......WASHER
12

62136-49HE0 ......O RING

......O RING
13

62134-49HE0 ......O RING

......O RING
14

62191-49HE0 ...GUIDE, SPRING

...GUIDE, SPRING
15

62194-49HE0 ...NUT

...NUT
16

62273-49HE0 ......BLADER

......BLADER
17

62275-49HE0 ......GUIDE

......GUIDE
18

62277-49HE0 ...RING, STOP

...RING, STOP
19

62211-49HE0 ...SPRING ((STD K=5.5))

...SPRING ((STD K=5.5))
20

09263-16033 ...BEARING (16X22X12)

...BEARING (16X22X12)
21

62684-36F00 ...SPACER, UPPER BEARING RH

...SPACER, UPPER BEARING RH
22

62685-36F00 ...SPACER, UPPER BEARING LH

...SPACER, UPPER BEARING LH
23

09284-16005 ...OIL SEAL (16X22X2.5)

...OIL SEAL (16X22X2.5)
24

62222-49HE0 ...GUIDE SPRING

...GUIDE SPRING
25

62221-49HE0 ...GUIDE SPRING

...GUIDE SPRING
26

62311-28H00 BOLT, REAR SHOCK ABSORBER UPR

BOLT, REAR SHOCK ABSORBER UPR
27

62221-37F30 BOLT, REAR SHOCK ABSORBER LWR

BOLT, REAR SHOCK ABSORBER LWR
28

09159-10067 NUT

NUT
29

62211-49HG0 SPRING, REAR (OPT (SOFT K=5.3))

SPRING, REAR (OPT (SOFT K=5.3))
29

62211-49HH0 SPRING, REAR (OPT (HARD K=5.7))

SPRING, REAR (OPT (HARD K=5.7))
29

62211-49HJ0 SPRING, REAR (OPT (HARD K=5.9))

SPRING, REAR (OPT (HARD K=5.9))
