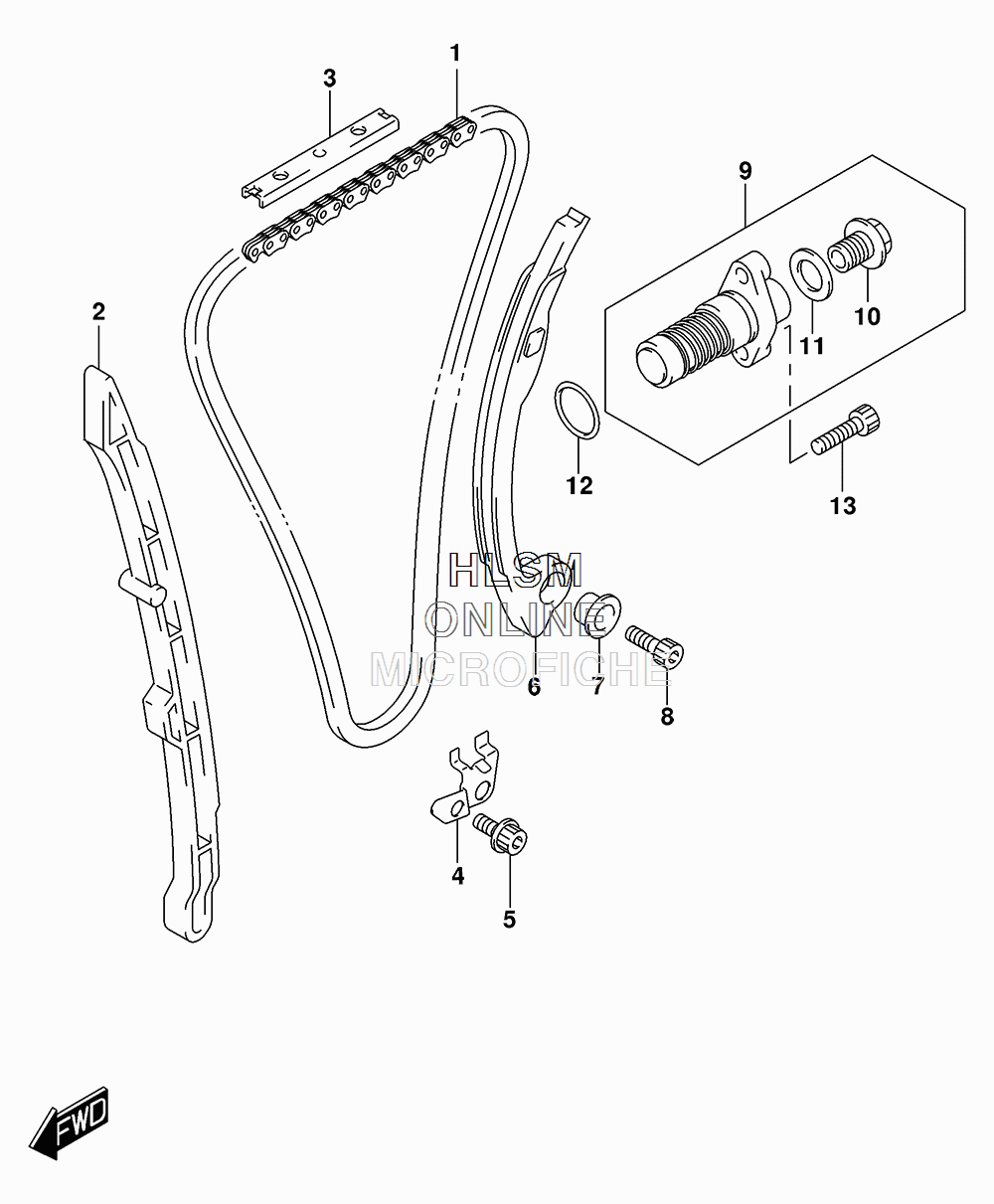

CAM CHAIN ASSY. W/ TENSIONER для Suzuki RM-Z250 [RMZ250] - 2016 года выпуска
-
№АртикулНазвание
-
112760-10H00 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-49H00 GUIDE, CAM CHAIN NO.1GUIDE, CAM CHAIN NO.1
-
312782-35G00 GUIDE, CAM CHAIN NO.2GUIDE, CAM CHAIN NO.2
-
412773-49H00 RETAINER, CAM CHAIN GUIDE NO.1RETAINER, CAM CHAIN GUIDE NO.1
-
507120-0610A BOLTBOLT
-
612811-49H00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
712812-35G00 SPACER, CAM CHAIN TENSIONERSPACER, CAM CHAIN TENSIONER
-
807130-0616A BOLTBOLT
-
912830-49H00 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
1012833-49H00 ...PLUG, ADJUSTER...PLUG, ADJUSTER
-
1112837-49H00 ...GASKET, TENSIONER ADJUSTER...GASKET, TENSIONER ADJUSTER
-
1209280-19001 O RING (D:1.9,ID:18.8)O RING (D:1.9,ID:18.8)
-
1307130-0625A BOLTBOLT
