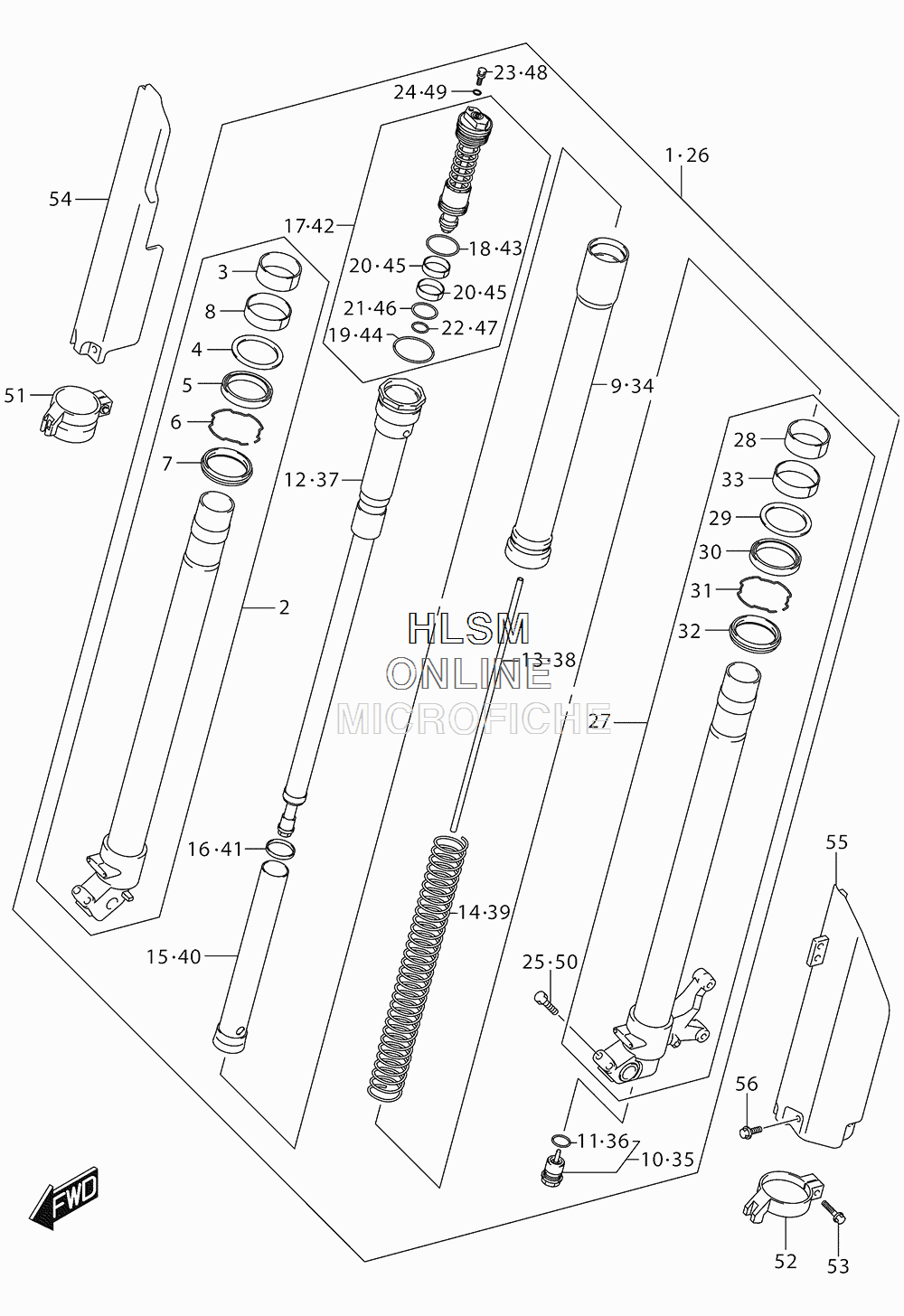

SUSPENSION - FRONT FORK для Suzuki DR-Z400SM - 2016 года выпуска
-
№АртикулНазвание
-
151103-29F70 DAMPER ASSY, FRONT FORK RHDAMPER ASSY, FRONT FORK RH
-
251110-29F70 ...TUBE, INNER...TUBE, INNER
-
351167-36F00 ......BUSH, GUIDE......BUSH, GUIDE
-
451158-36F00 ......SPACER, SEAL......SPACER, SEAL
-
551153-37F80 ......OIL SEAL......OIL SEAL
-
651156-27C40 ......RING, STOPPER......RING, STOPPER
-
751173-37F80 ......SEAL, DUST......SEAL, DUST
-
851121-36F00 ......BUSH, SLIDE......BUSH, SLIDE
-
951130-29F70 ...TUBE, OUTER...TUBE, OUTER
-
1051170-37F70 ...BOLT, CENTER...BOLT, CENTER
-
1151177-36E20 ......O RING......O RING
-
1251190-29F70 ...ROD, FRONT DAMPER...ROD, FRONT DAMPER
-
1351191-29F70 ...ROD, PUSH...ROD, PUSH
-
1451171-29F70 ...SPRING, FRONT...SPRING, FRONT
-
1551198-37F70 ...COLLAR, SPRING...COLLAR, SPRING
-
1651178-29F70 ...SEAT, SPRING...SEAT, SPRING
-
1751351-29F70 ...BOLT, FORK...BOLT, FORK
-
1851117-37F80 ......O RING......O RING
-
1951118-37F80 ......O RING......O RING
-
2051123-28E30 ......BUSH......BUSH
-
2151174-36E40 ......O RING......O RING
-
2251175-36E20 ......O RING......O RING
-
2351357-36F20 ...BOLT, PLUG...BOLT, PLUG
-
2451358-28E30 ...O RING, PLUG...O RING, PLUG
-
2551166-35F00 ...BOLT...BOLT
-
2651104-29F70 DAMPER ASSY, FRONT FORK LHDAMPER ASSY, FRONT FORK LH
-
2751120-29F70 ...TUBE, INNER...TUBE, INNER
-
2851167-36F00 ......BUSH, GUIDE......BUSH, GUIDE
-
2951158-36F00 ......SPACER, SEAL......SPACER, SEAL
-
3051153-37F80 ......OIL SEAL......OIL SEAL
-
3151156-27C40 ......RING, STOPPER......RING, STOPPER
-
3251173-37F80 ......SEAL, DUST......SEAL, DUST
-
3351121-36F00 ......BUSH, SLIDE......BUSH, SLIDE
-
3451130-29F70 ...TUBE, OUTER...TUBE, OUTER
-
3551170-37F70 ...BOLT, CENTER...BOLT, CENTER
-
3651177-36E20 ......O RING......O RING
-
3751190-29F70 ...ROD, FRONT DAMPER...ROD, FRONT DAMPER
-
3851191-29F70 ...ROD, PUSH...ROD, PUSH
-
3951171-29F70 ...SPRING, FRONT...SPRING, FRONT
-
4051198-37F70 ...COLLAR, SPRING...COLLAR, SPRING
-
4151178-29F70 ...SEAT, SPRING...SEAT, SPRING
-
4251351-29F70 ...BOLT, FORK...BOLT, FORK
-
4351117-37F80 ......O RING......O RING
-
4451118-37F80 ......O RING......O RING
-
4551123-28E30 ......BUSH......BUSH
-
4651174-36E40 ......O RING......O RING
-
4751175-36E20 ......O RING......O RING
-
4851357-36F20 ...BOLT, PLUG...BOLT, PLUG
-
4951358-28E30 ...O RING...O RING
-
5051166-35F00 ...BOLT...BOLT
-
5151220-36E61 GUIDE, PROTECTOR RHGUIDE, PROTECTOR RH
-
5251210-36E61 GUIDE, PROTECTOR LHGUIDE, PROTECTOR LH
-
5301547-06207 BOLTBOLT
-
5451501-29F70-019 PROTECTOR RIGHT HAND (BLACK)PROTECTOR RIGHT HAND (BLACK)
-
5551511-29F70-019 PROTECTOR LEFT HAND (BLACK)PROTECTOR LEFT HAND (BLACK)
-
5609103-06256 BOLT (6X10)BOLT (6X10)
