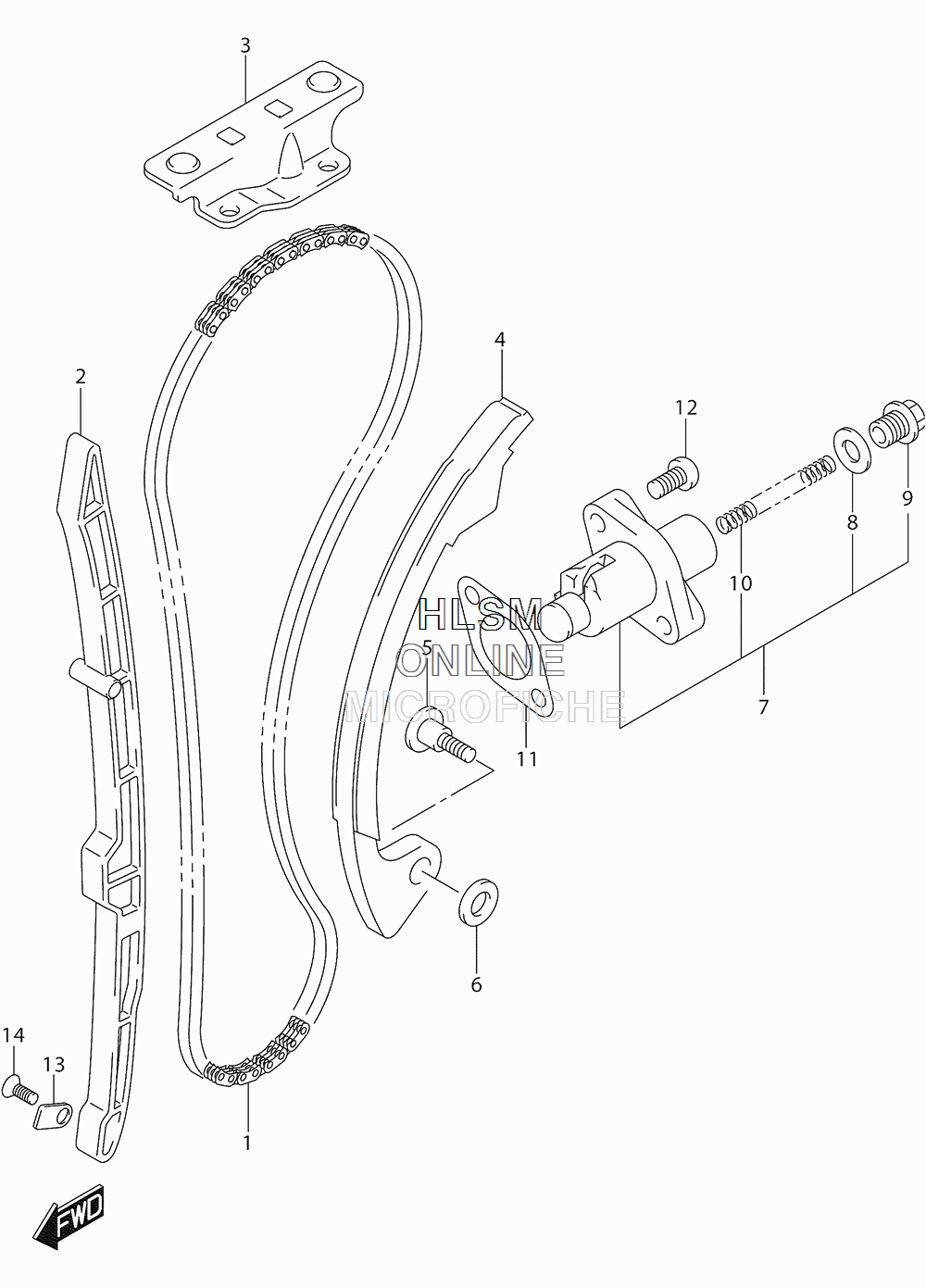

CAM CHAIN ASSY. W/ TENSIONER для Suzuki DR-Z400SM - 2016 года выпуска

№

Артикул

Название
1

12760-29F01 CHAIN, CAMSHAFT DRIVE

CHAIN, CAMSHAFT DRIVE
2

12771-29F00 GUIDE, CAM CHAIN NO.1

GUIDE, CAM CHAIN NO.1
3

12782-29F00 GUIDE, CAM CHAIN NO.2

GUIDE, CAM CHAIN NO.2
4

12811-29F10 TENSIONER, CAM CHAIN

TENSIONER, CAM CHAIN
5

12812-35C00 BOLT, CAM CHAIN TENSIONER

BOLT, CAM CHAIN TENSIONER
6

08211-06181 WASHER

WASHER
7

12830-29F10 ADJUSTER ASSY, TENSIONER

ADJUSTER ASSY, TENSIONER
8

12837-24F10 ...GASKET, TENSIONER ADJUSTER

...GASKET, TENSIONER ADJUSTER
9

12833-05A00 ...PLUG

...PLUG
10

12831-39F00 ...SPRING

...SPRING
11

12837-24A10 GASKET, TENSIONER ADJUSTER (NA)

GASKET, TENSIONER ADJUSTER (NA)
12

07130-0625A BOLT

BOLT
13

12773-24F00 RETAINER, CAM CHAIN GUIDE NO.1

RETAINER, CAM CHAIN GUIDE NO.1
14

09126-06011 SCREW (6X12)

SCREW (6X12)
