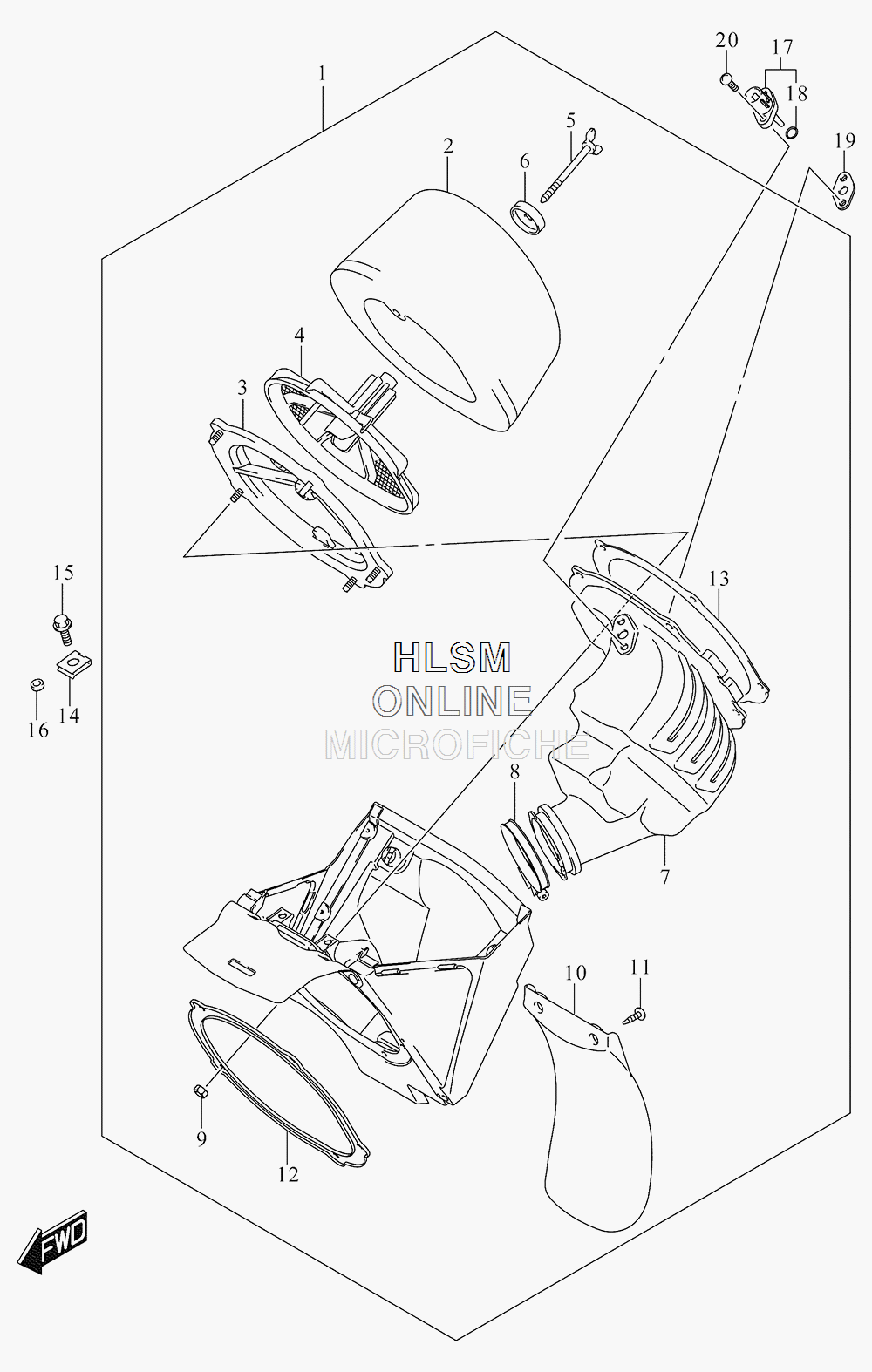

AIR CLEANER для Suzuki RM-Z250 [RMZ250L5] - 2015 года выпуска`
-
№АртикулНазвание
-
113700-49H20 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213780-10H00 FILTER ASSYFILTER ASSY
-
313790-37F20 BASE, FILTERBASE, FILTER
-
413791-35G00 HOLDER, FILTERHOLDER, FILTER
-
513831-37F20 BOLT, WINGBOLT, WING
-
613792-13A01 WASHERWASHER
-
713881-49H10 TUBE, OUTLETTUBE, OUTLET
-
813826-28H00 CLAMPCLAMP
-
908310-00057 NUTNUT
-
1013738-36E10 MUDGUARDMUDGUARD
-
1113831-35F00 SCREWSCREW
-
1213795-37F20 PLATEPLATE
-
1313796-37F20 GASKETGASKET
-
1409148-06017 NUTNUT
-
1501547-0612A BOLTBOLT
-
1609180-06129 SPACER (6.2X10X2.2)SPACER (6.2X10X2.2)
-
1713650-14G10 SENSOR, AIR TEMPSENSOR, AIR TEMP
-
1813655-14G10 O RINGO RING
-
1913652-28H00 BRACKET, AIR TEMP SENSORBRACKET, AIR TEMP SENSOR
-
2002112-0516A SCREWSCREW
