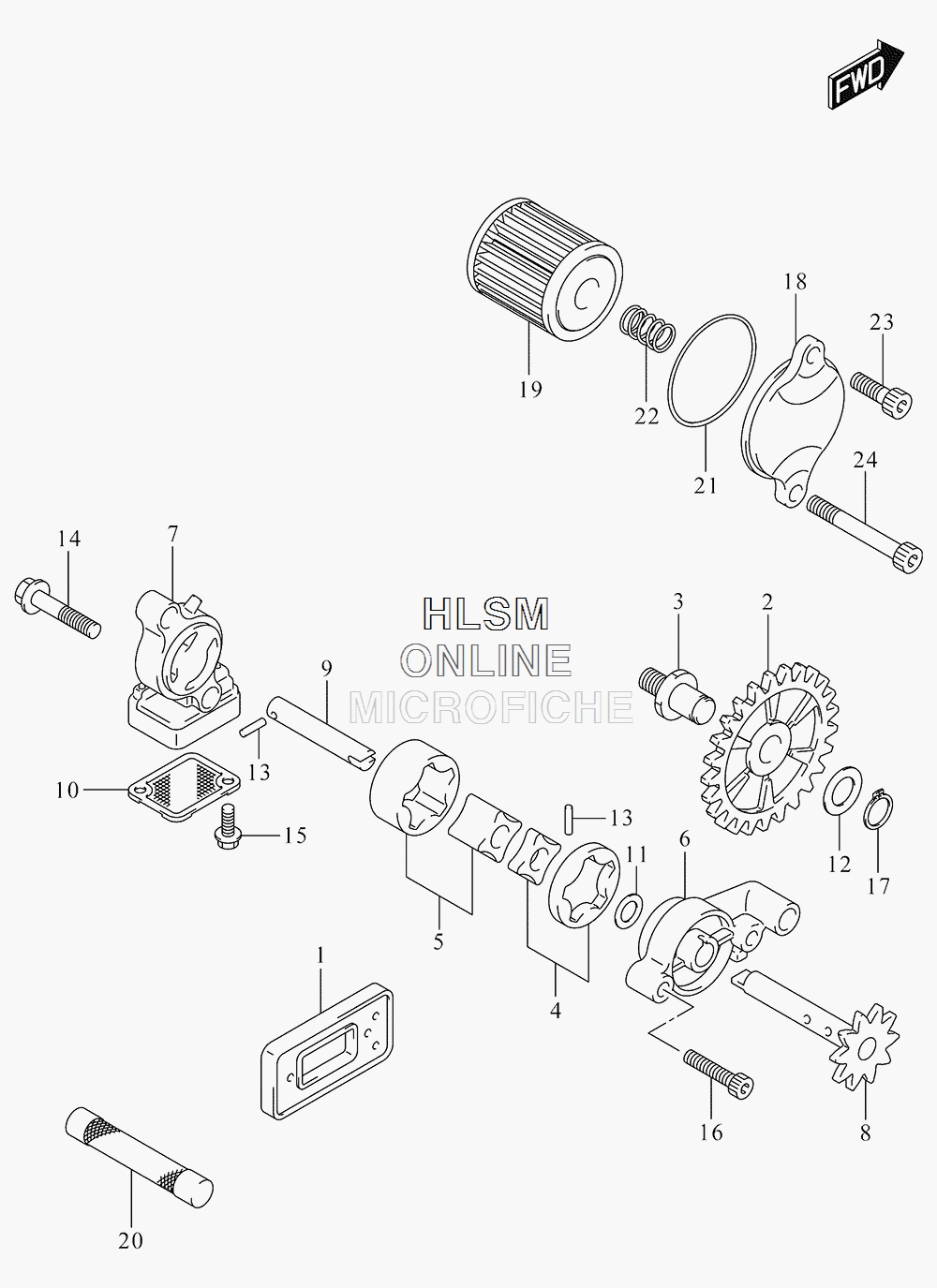

OIL PUMP для Suzuki RM-Z250 [RMZ250L5] - 2015 года выпуска

№

Артикул

Название
1

13150-28H10 VALVE ASSY, OIL REED

VALVE ASSY, OIL REED
2

16321-49H00 GEAR, OIL PUMP IDLE (NT:25)

GEAR, OIL PUMP IDLE (NT:25)
3

16322-49H00 SHAFT, OIL PUMP IDLE GEAR

SHAFT, OIL PUMP IDLE GEAR
4

16410-49H00 ROTOR SET, OIL PUMP NO.1

ROTOR SET, OIL PUMP NO.1
5

16410-45G00 ROTOR SET, OIL PUMP NO.2

ROTOR SET, OIL PUMP NO.2
6

16430-49H01 COVER, OIL PUMP NO.1

COVER, OIL PUMP NO.1
7

16433-49H10 COVER, OIL PUMP NO.2

COVER, OIL PUMP NO.2
8

16440-49H00 SHAFT, OIL PUMP DRIVEN GEAR

SHAFT, OIL PUMP DRIVEN GEAR
9

16443-28H00 SHAFT, OIL PUMP NO.2

SHAFT, OIL PUMP NO.2
10

16530-49H00 STRAINER, OIL PUMP NO.2

STRAINER, OIL PUMP NO.2
11

09181-08106 SHIM (8X12X0.8)

SHIM (8X12X0.8)
12

09181-10158 SHIM (10X18X0.5)

SHIM (10X18X0.5)
13

09261-02008 PIN (2.5X11.8)

PIN (2.5X11.8)
14

01547-0635A BOLT

BOLT
15

07120-0512A BOLT

BOLT
16

07130-0520A BOLT

BOLT
17

08331-31109 CIRCLIP

CIRCLIP
18

16315-35G40 CAP, ENGINE OIL FILTER OUTER

CAP, ENGINE OIL FILTER OUTER
19

16510-35G00 FILTER, ENGINE OIL

FILTER, ENGINE OIL
20

16520-10H10 STRAINER, ENGINE OIL

STRAINER, ENGINE OIL
21

09280-39001 O RING (D:2,ID:38.5)

O RING (D:2,ID:38.5)
22

09440-10038 SPRING

SPRING
23

01547-0616A BOLT

BOLT
24

01547-0635A BOLT

BOLT
