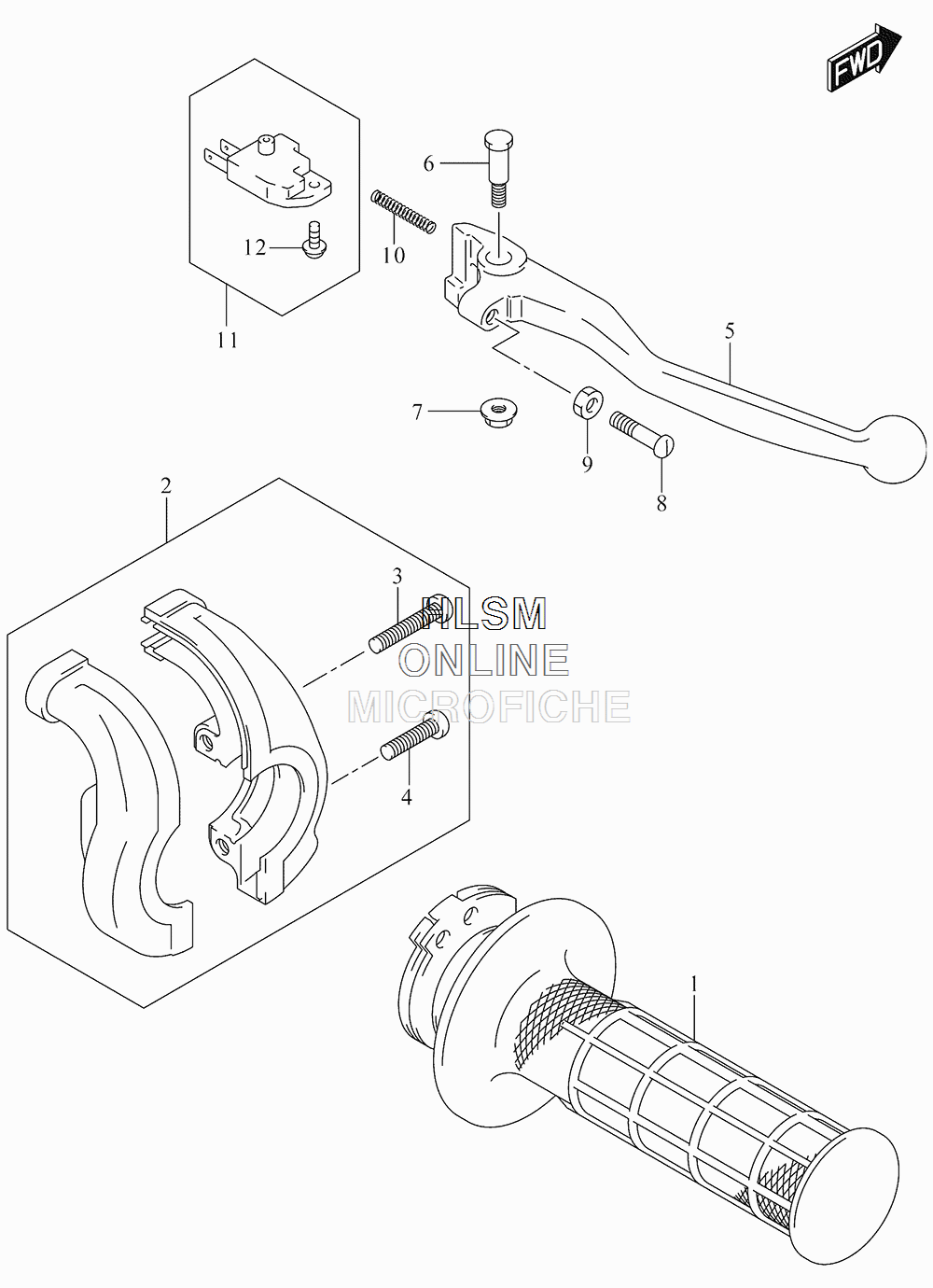

HANDLEBAR - RIGHT HAND LEVER для Suzuki DRZ400SM [DRZ400SML5] - 2015 года выпуска`
-
№АртикулНазвание
-
157110-12D11 GRIP, THROTTLEGRIP, THROTTLE
-
257100-14D00 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
302112-0525B ...SCREW...SCREW
-
402112-0520B ...SCREW...SCREW
-
557421-44E00 LEVER, BRAKELEVER, BRAKE
-
657431-14500 BOLT, BRAKE LEVERBOLT, BRAKE LEVER
-
708319-2106A NUTNUT
-
857431-14511 BOLT, ADJUSTBOLT, ADJUST
-
908310-0005A NUTNUT
-
1057318-14502 SPRING, RETURNSPRING, RETURN
-
1157460-14J01 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
1257465-17C00 ...SCREW...SCREW
