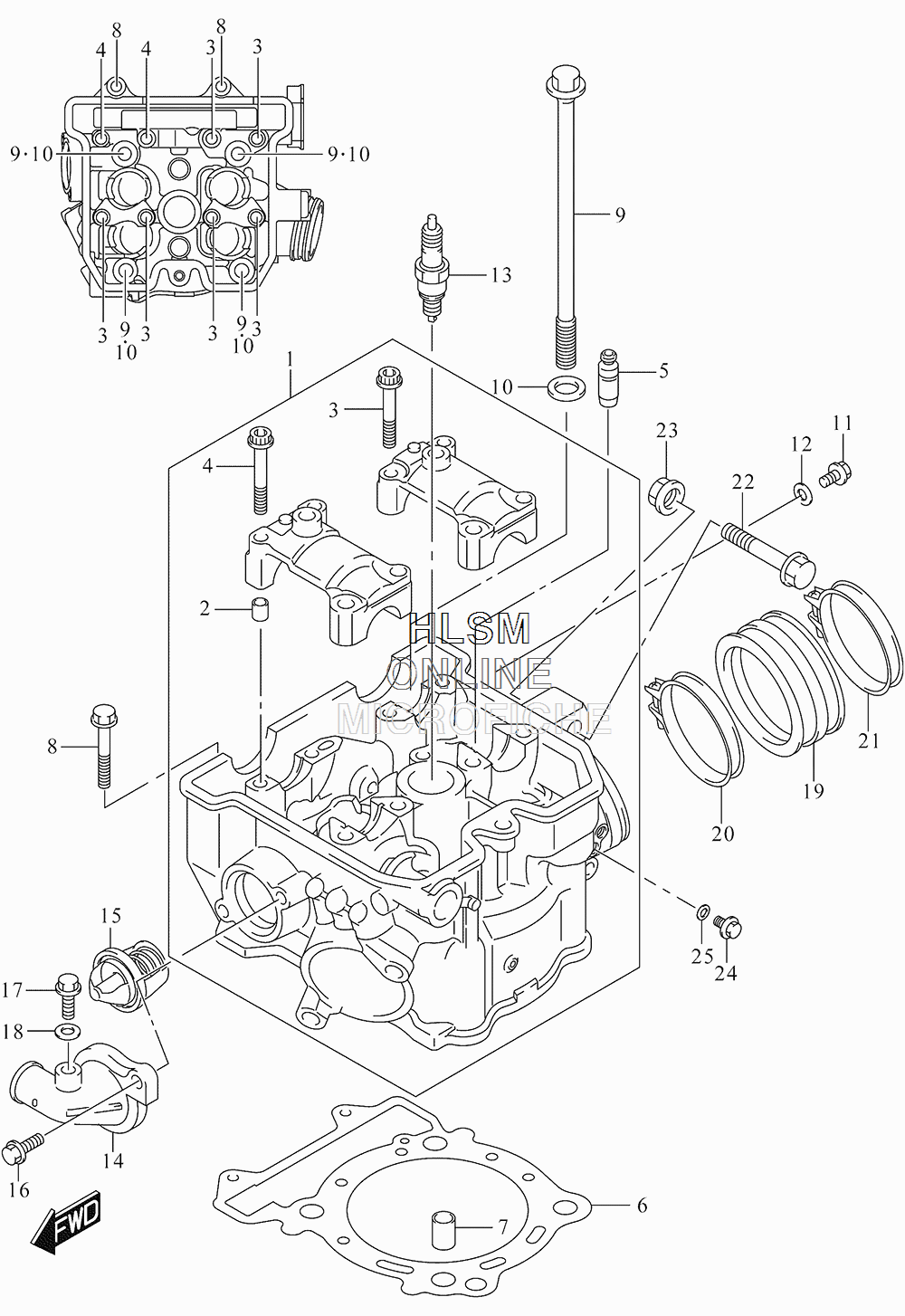

CYLINDER HEAD для Suzuki DRZ400SM [DRZ400SML5] - 2015 года выпуска`
-
№АртикулНазвание
-
111100-29F11 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209206-08001 ...PIN (8X11)...PIN (8X11)
-
307120-0640A ...BOLT...BOLT
-
407120-0645A ...BOLT...BOLT
-
511115-20E70 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
611141-29F01 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
704211-13189 PINPIN
-
809103-06026 BOLT (6X39)BOLT (6X39)
-
909103-10276 BOLT (10X175)BOLT (10X175)
-
1009160-10082 WASHER (10.5X19X2)WASHER (10.5X19X2)
-
1101550-0610A BOLTBOLT
-
1209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1309482-00456 SPARK PLUG (CR8E) (NGK)SPARK PLUG (CR8E) (NGK)
-
1309482-00457 SPARK PLUG (U24ESR-N) (DENSO)SPARK PLUG (U24ESR-N) (DENSO)
-
1309482-00516 SPARK PLUG (CR7E) (OPT NGK)SPARK PLUG (CR7E) (OPT NGK)
-
1309482-00458 SPARK PLUG (CR9E) (OPT NGK)SPARK PLUG (CR9E) (OPT NGK)
-
1309482-00460 SPARK PLUG (CR10E) (OPT NGK)SPARK PLUG (CR10E) (OPT NGK)
-
1309482-00515 SPARK PLUG (U22ESR-N) (OPT DENSO)SPARK PLUG (U22ESR-N) (OPT DENSO)
-
1309482-00459 SPARK PLUG (U27ESR-N) (OPT DENSO)SPARK PLUG (U27ESR-N) (OPT DENSO)
-
1309482-00461 SPARK PLUG (U31ESR-N) (OPT DENSO)SPARK PLUG (U31ESR-N) (OPT DENSO)
-
1417661-29F10 COVER, THERMOSTATCOVER, THERMOSTAT
-
1517670-33400 THERMOSTAT, WATERTHERMOSTAT, WATER
-
1601547-0616A BOLTBOLT
-
1717568-50F00 BOLT, AIR RELEASEBOLT, AIR RELEASE
-
1809168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
1913111-29F10 PIPE, INTAKEPIPE, INTAKE
-
2009402-58208 CLAMPCLAMP
-
2109402-52208 CLAMPCLAMP
-
2209103-10235 BOLT (10X50)BOLT (10X50)
-
2309159-10115 NUTNUT
-
2409103-08421 BOLT (8X9.5)BOLT (8X9.5)
-
2509168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
