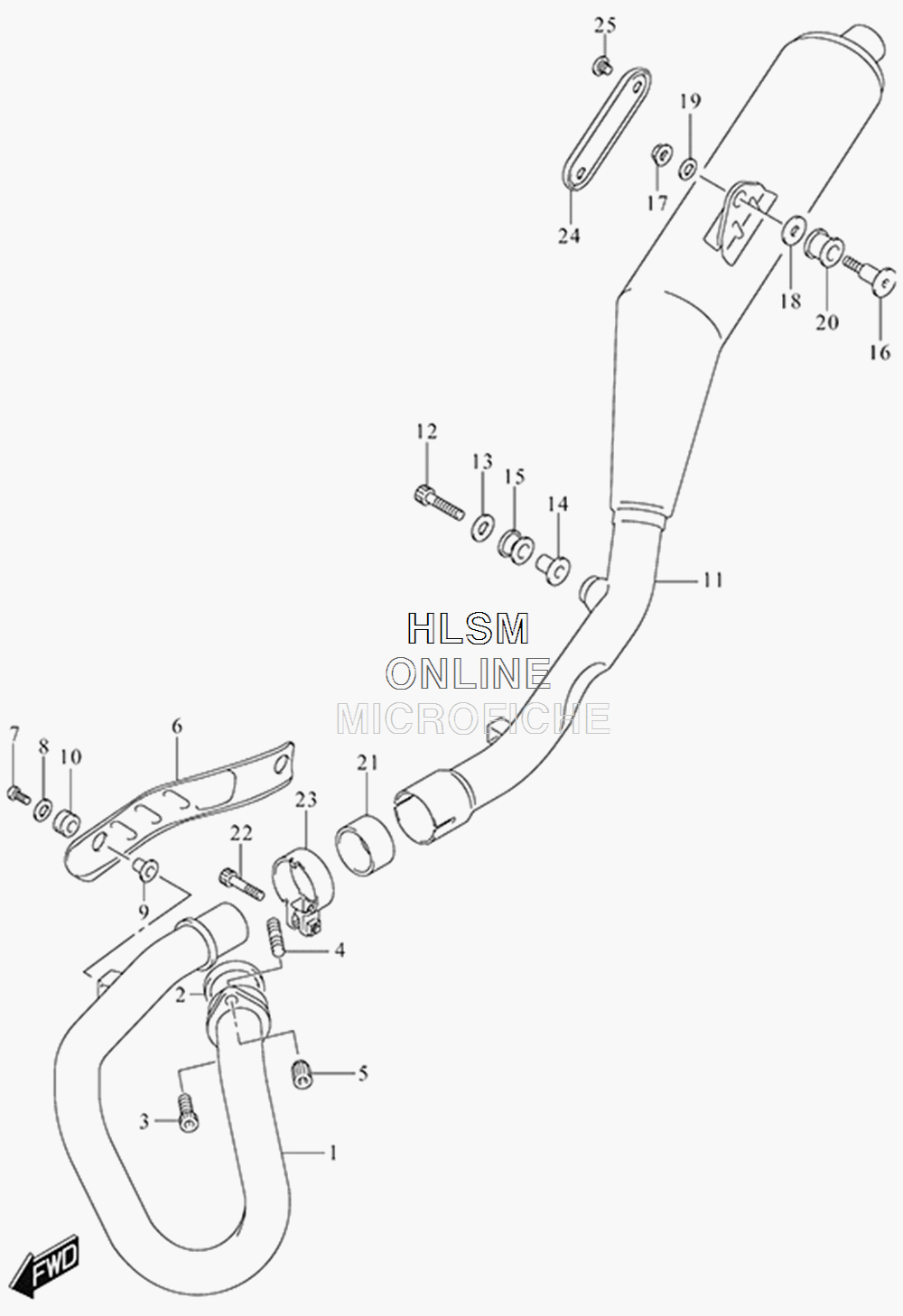

MUFFLER для Suzuki DR-Z400S - 2015 года выпуска`
-
№АртикулНазвание
-
114150-29F10 PIPE, EXHAUSTPIPE, EXHAUST
-
214181-29E02 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
307130-0825A BOLTBOLT
-
401421-0816A STUD BOLTSTUD BOLT
-
509159-08112 NUTNUT
-
614180-29F30 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
709139-06109 SCREW (6X16)SCREW (6X16)
-
809160-06056 WASHER (6.5X18X1)WASHER (6.5X18X1)
-
914185-07G00 SPACER, EXHAUST PIPE COVERSPACER, EXHAUST PIPE COVER
-
1009320-08066 CUSHIONCUSHION
-
1114310-29FA0-H01 BODY, MUFFLERBODY, MUFFLER
-
1209106-08133 BOLT (8X35)BOLT (8X35)
-
1309160-08151 WASHER (8.5X26X1.6)WASHER (8.5X26X1.6)
-
1409180-08151 SPACER (8.6X12X17.5)SPACER (8.6X12X17.5)
-
1509320-12043 CUSHIONCUSHION
-
1614419-29F00 BOLT, MUFFLER SUPPORT REARBOLT, MUFFLER SUPPORT REAR
-
1708319-3108A NUTNUT
-
1809160-08503 WASHER (8.5X30X2.3)WASHER (8.5X30X2.3)
-
1908322-0108A WASHERWASHER
-
2009320-12048 CUSHIONCUSHION
-
2114771-29F10 CONNECTOR, MUFFLER JTCONNECTOR, MUFFLER JT
-
2207120-0840A BOLTBOLT
-
2314459-29F10 CLAMP, MUFFLER CONNECTORCLAMP, MUFFLER CONNECTOR
-
2414782-29F00 COVER, MUFFLERCOVER, MUFFLER
-
2514789-29F01 SCREW, MUFFLER COVERSCREW, MUFFLER COVER
