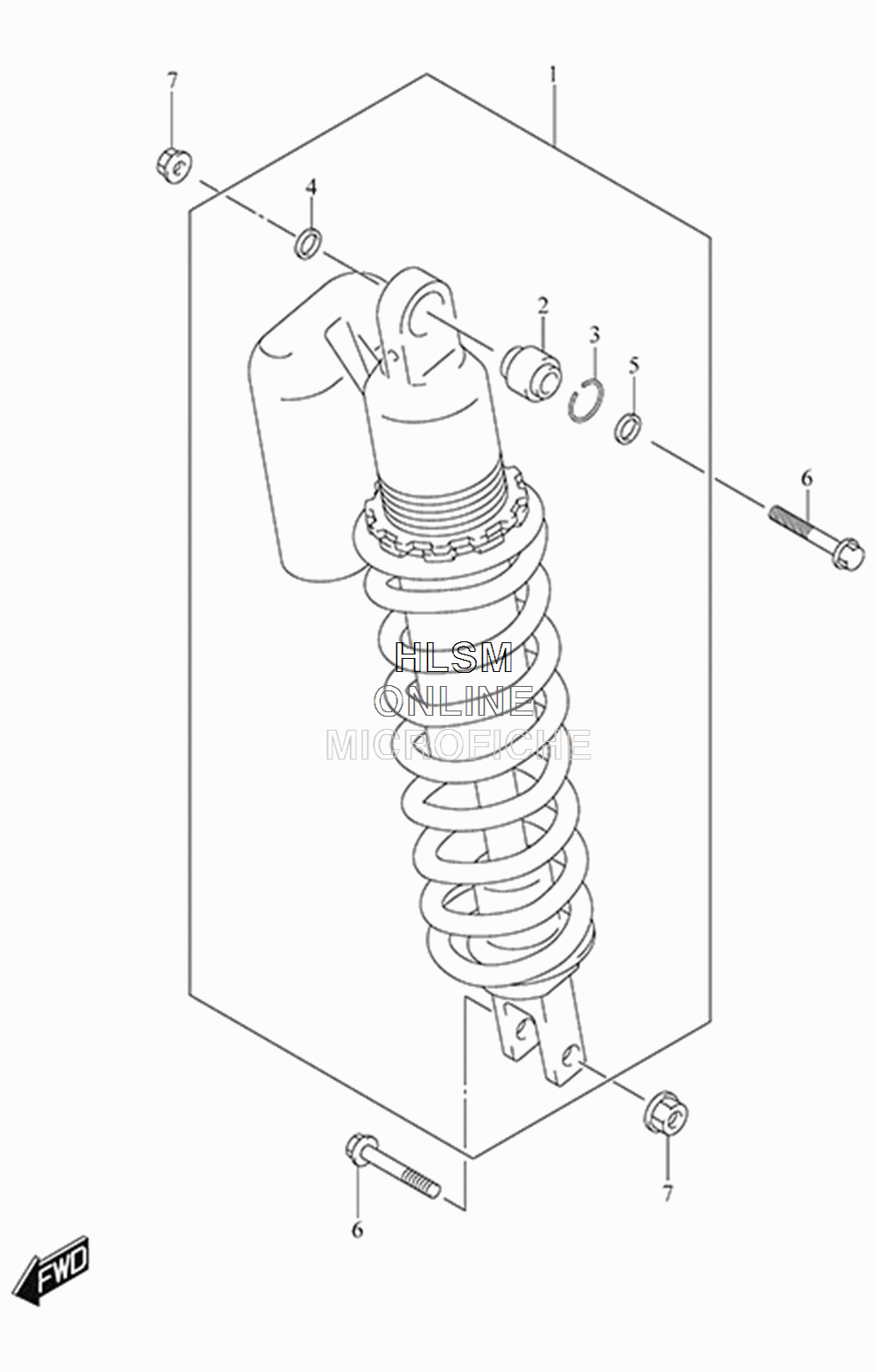

SUSPENSION - SHOCKS REAR для Suzuki DR-Z400S - 2015 года выпуска
-
№АртикулНазвание
-
162100-29FL0-28W ABSORBER ASSY, REAR SHOCK (WHITE)ABSORBER ASSY, REAR SHOCK (WHITE)
-
262175-36E00 ...BEARING REAR SHOCK ABSORBER (10X26X22)...BEARING REAR SHOCK ABSORBER (10X26X22)
-
362277-27C40 ...RING, STOPPER...RING, STOPPER
-
462226-36E00 ...SEAL, DUST UPPER RIGHT HAND...SEAL, DUST UPPER RIGHT HAND
-
562226-36E10 ...SEAL, DUST UPPER LEFT HAND...SEAL, DUST UPPER LEFT HAND
-
609103-10149 BOLT (10X47.5)BOLT (10X47.5)
-
709159-10115 NUTNUT
