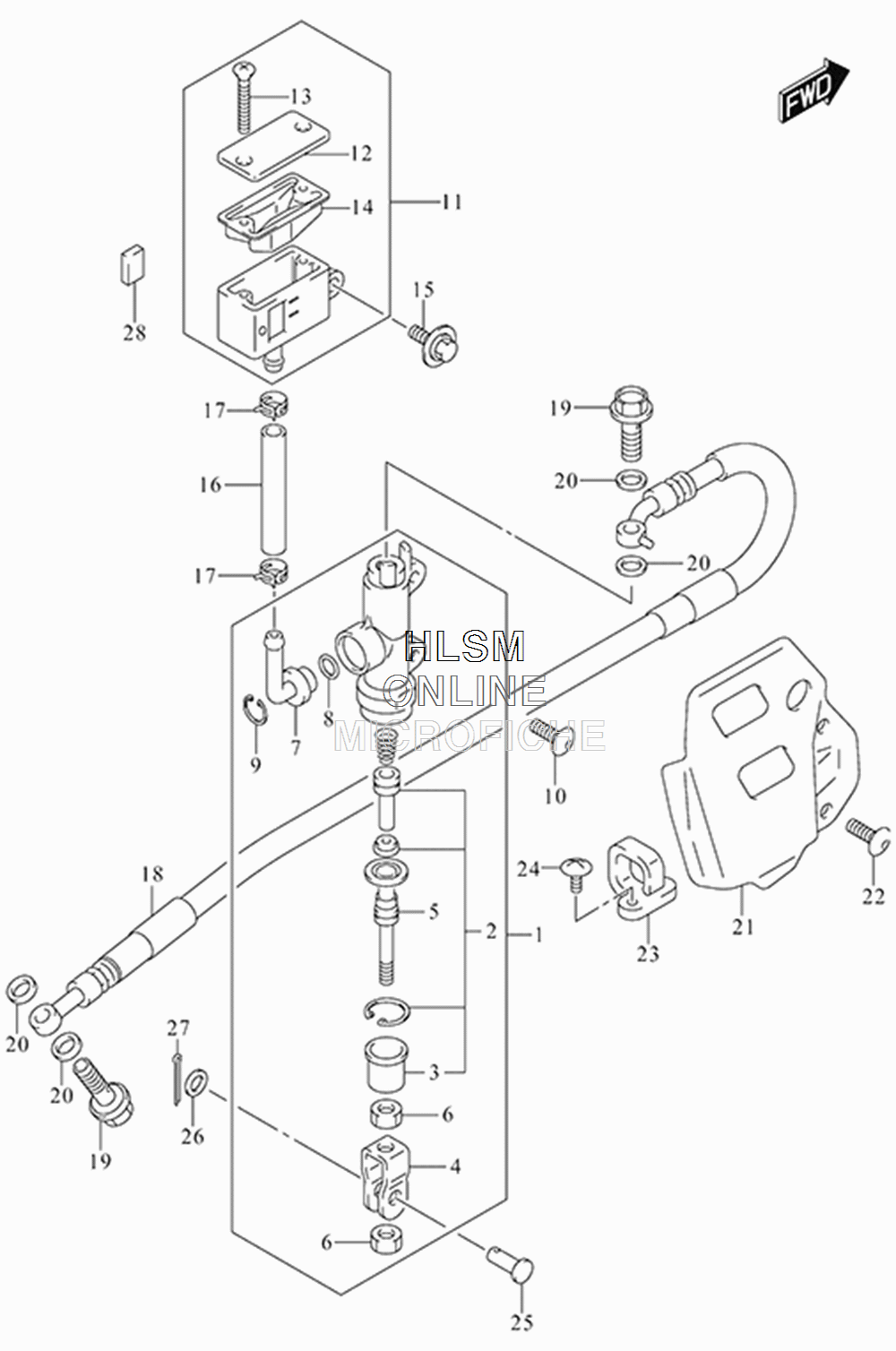

BRAKE - REAR MASTER CYLINDER для Suzuki DR-Z400S - 2015 года выпуска`
-
№АртикулНазвание
-
169600-29F00 CYLINDER ASSY, REAR MASTERCYLINDER ASSY, REAR MASTER
-
269600-04820 ...PISTON/CUP SET...PISTON/CUP SET
-
369691-00A00 ......BOOT......BOOT
-
469692-29F00 ...YOKE...YOKE
-
569670-36E00 ...ROD, PUSH...ROD, PUSH
-
669693-05A00 ...NUT...NUT
-
769672-00B20 ...CONNECTOR...CONNECTOR
-
869686-34200 ...O RING...O RING
-
969674-00B20 ...CIRCLIP...CIRCLIP
-
1009139-06067 SCREW (6X16)SCREW (6X16)
-
1169740-44E00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1269669-44E00 ...CAP...CAP
-
1369689-36E00 ...SCREW...SCREW
-
1459667-14500 ...DIAPHRAGM...DIAPHRAGM
-
1509116-06170 BOLT (6X16)BOLT (6X16)
-
1659731-42E00 HOSE, RESERVOIR TANK (L:85) (L:85->70)HOSE, RESERVOIR TANK (L:85) (L:85->70)
-
1769735-00B20 CLAMP, RESERVOIR HOSECLAMP, RESERVOIR HOSE
-
1869480-29F02 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
1909360-10062 UNIONUNION
-
2009161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
2143571-36E20 GUARD, REAR MASTER CYLINDERGUARD, REAR MASTER CYLINDER
-
2209139-06067 SCREW (6X16)SCREW (6X16)
-
2361196-27C30 GUIDE, REAR BRAKE HOSEGUIDE, REAR BRAKE HOSE
-
2402142-0510A SCREWSCREW
-
2509200-08048 PINPIN
-
2609160-08090 WASHER (8.5X14X1.6)WASHER (8.5X14X1.6)
-
2704111-2015A COTTER PINCOTTER PIN
-
2869749-29F00 CUSHION, REAR RESERVOIR TANKCUSHION, REAR RESERVOIR TANK
