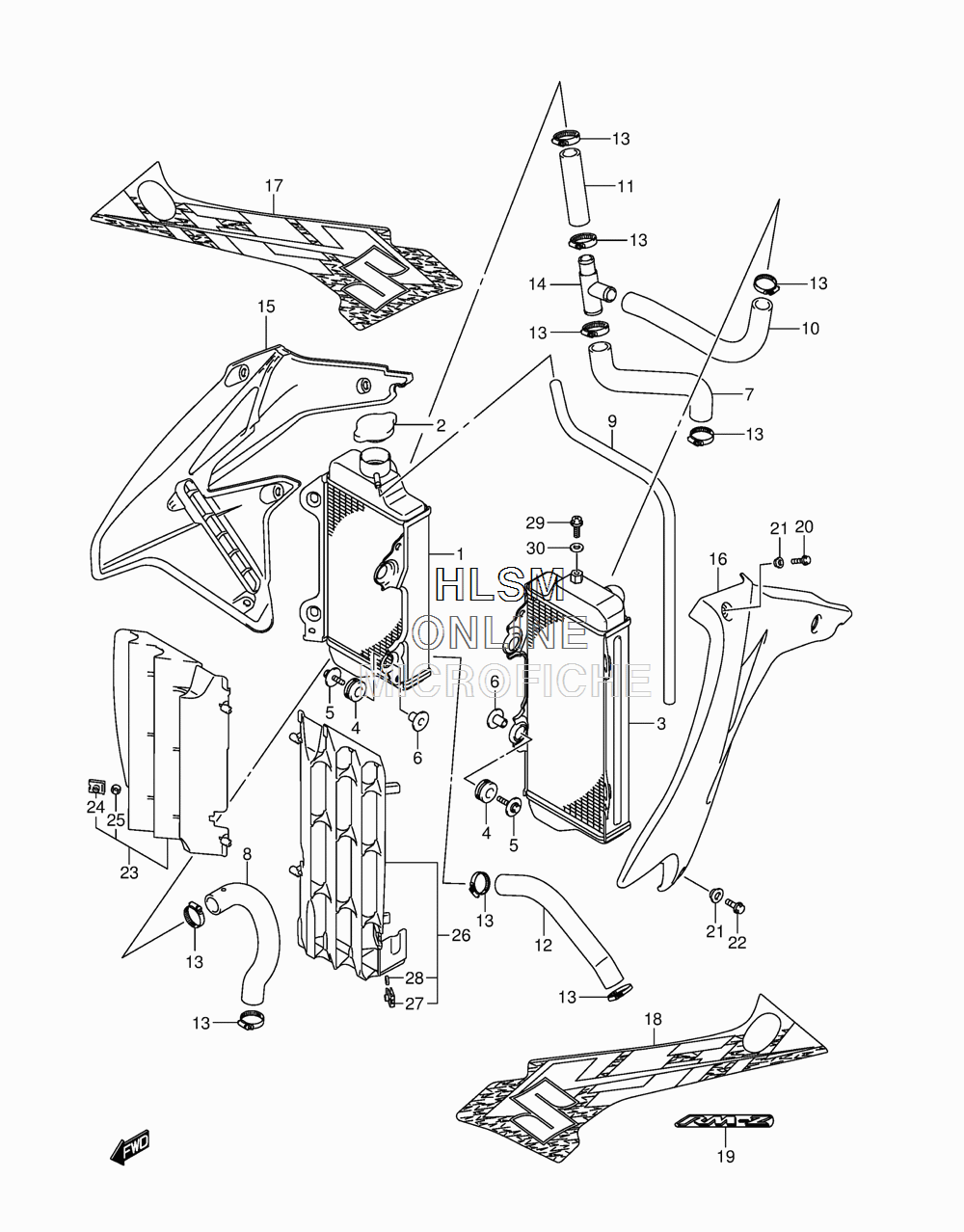

RADIATOR для Suzuki RM-Z450L4 - 2014 года выпуска
-
№АртикулНазвание
-
117710-28H21 RADIATOR, RIGHT HANDRADIATOR, RIGHT HAND
-
217730-08J00 CAP, RADIATORCAP, RADIATOR
-
317720-28H20 RADIATOR, LEFT HANDRADIATOR, LEFT HAND
-
417787-19A00 CUSHION, RADIATOR SUPPORTCUSHION, RADIATOR SUPPORT
-
509116-06186 BOLT (6X25)BOLT (6X25)
-
609180-06243 SPACER (6.5X10.5X14.1)SPACER (6.5X10.5X14.1)
-
717851-28H00 HOSE, INLETHOSE, INLET
-
817852-28H00 HOSE, OUTLETHOSE, OUTLET
-
909351-50803-00A HOSE (5X8X1000)HOSE (5X8X1000)
-
1017853-28H00 HOSE, JOINT UPPER NO.1HOSE, JOINT UPPER NO.1
-
1117854-28H00 HOSE, JOINT UPPER NO.2HOSE, JOINT UPPER NO.2
-
1217855-28H00 HOSE, JOINT LOWERHOSE, JOINT LOWER
-
1309402-28513 CLAMPCLAMP
-
1417857-35G10 JOINT, RADIATOR HOSEJOINT, RADIATOR HOSE
-
1517761-28H02-GY8 COVER, RADIATOR RIGHT HAND (YELLOW/BLACK)COVER, RADIATOR RIGHT HAND (YELLOW/BLACK)
-
1617762-28H02-GY8 COVER, RADIATOR LEFT HAND (YELLOW/BLACK)COVER, RADIATOR LEFT HAND (YELLOW/BLACK)
-
1768660-28H40-ANY TAPE, RADIATOR COVER RIGHT HANDTAPE, RADIATOR COVER RIGHT HAND
-
1868670-28H40-ANY TAPE, RADIATOR COVER LEFT HANDTAPE, RADIATOR COVER LEFT HAND
-
1968666-28H00-GGM EMBLEM, RADIATOR COVEREMBLEM, RADIATOR COVER
-
2009116-06221 BOLT (6X12)BOLT (6X12)
-
2163191-28H00 WASHER, FRONT FENDERWASHER, FRONT FENDER
-
2201547-0616A BOLTBOLT
-
2317801-28H10 LOUVER, RADIATOR RIGHT HANDLOUVER, RADIATOR RIGHT HAND
-
2409148-06017 NUTNUT
-
2509180-06129 SPACER (6.2X10X2.2)SPACER (6.2X10X2.2)
-
2617802-28H10 LOUVER, RADIATOR LEFT HANDLOUVER, RADIATOR LEFT HAND
-
2709148-06017 NUTNUT
-
2809180-06129 SPACER (6.2X10X2.2)SPACER (6.2X10X2.2)
-
2917568-50F00 BOLT, AIR RELEASEBOLT, AIR RELEASE
-
3009168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
