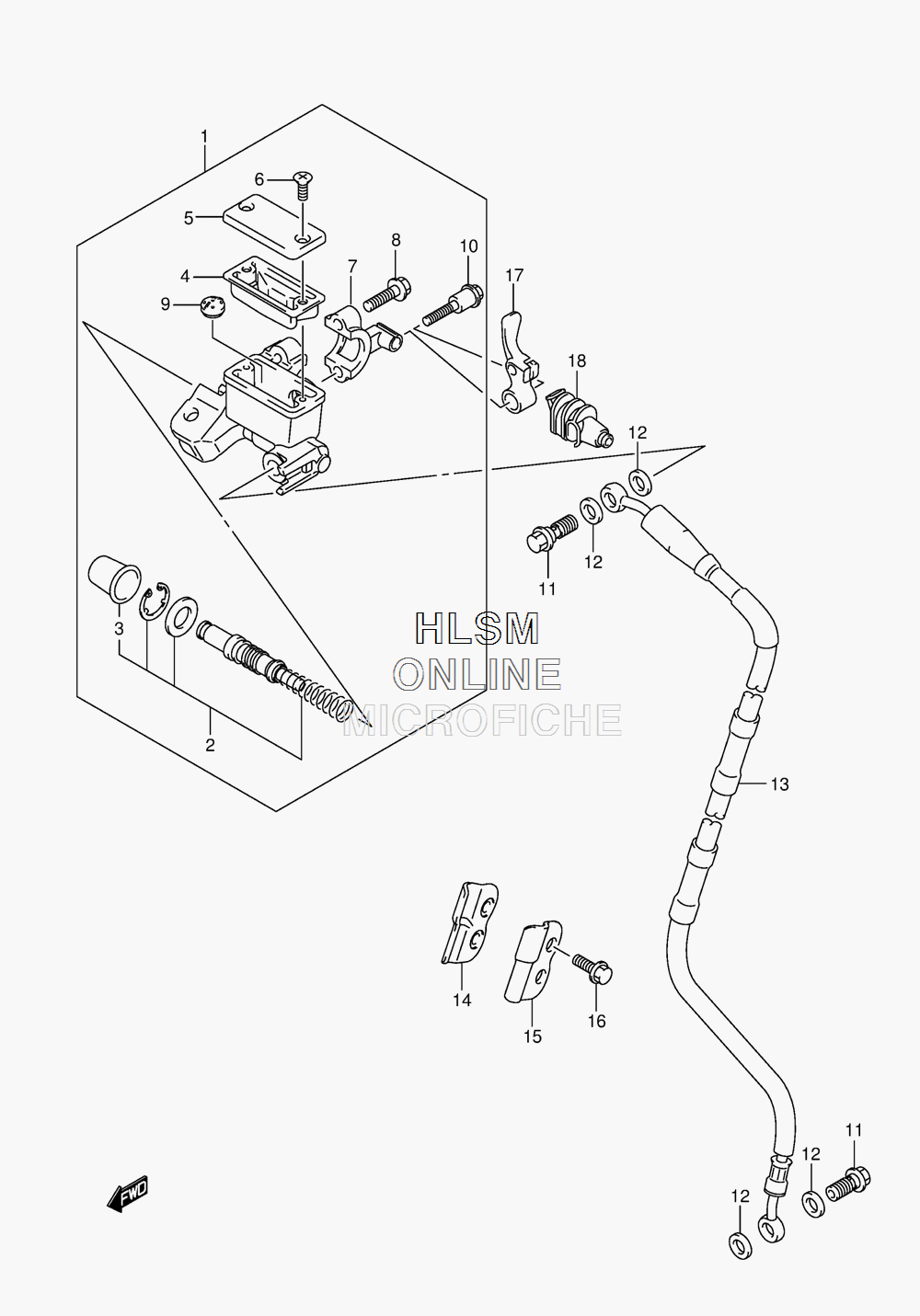

BRAKE - FRONT MASTER CYLINDER для Suzuki RM-Z450L4 - 2014 года выпуска
-
№АртикулНазвание
-
159600-28H00 CYLINDER ASSY, FRONT MASTERCYLINDER ASSY, FRONT MASTER
-
259600-37810 PISTON AND CUP SETPISTON AND CUP SET
-
359666-44300 BOOTBOOT
-
459667-14500 DIAPHRAGMDIAPHRAGM
-
559669-27C01 CAPCAP
-
669689-49300 SCREWSCREW
-
759671-28H00 HOLDER, MASTER CYLINDERHOLDER, MASTER CYLINDER
-
859675-06F10 BOLTBOLT
-
959748-36E00 SEPARATORSEPARATOR
-
1057517-28H00 BOLTBOLT
-
1109360-10065 UNIONUNION
-
1209161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
1359480-28H00 HOSE, FRONT BRAKEHOSE, FRONT BRAKE
-
1459260-28H20 CLAMP, FRONT BRAKE HOSE INNERCLAMP, FRONT BRAKE HOSE INNER
-
1559271-28H10 CLAMP, FRONT BRAKE HOSECLAMP, FRONT BRAKE HOSE
-
1609103-06234 BOLT (6X16)BOLT (6X16)
-
1757153-28H01 LEVER, MASTER CYLINDER HOLDERLEVER, MASTER CYLINDER HOLDER
-
1857516-28H10 COVER, HOLDER LEVERCOVER, HOLDER LEVER
