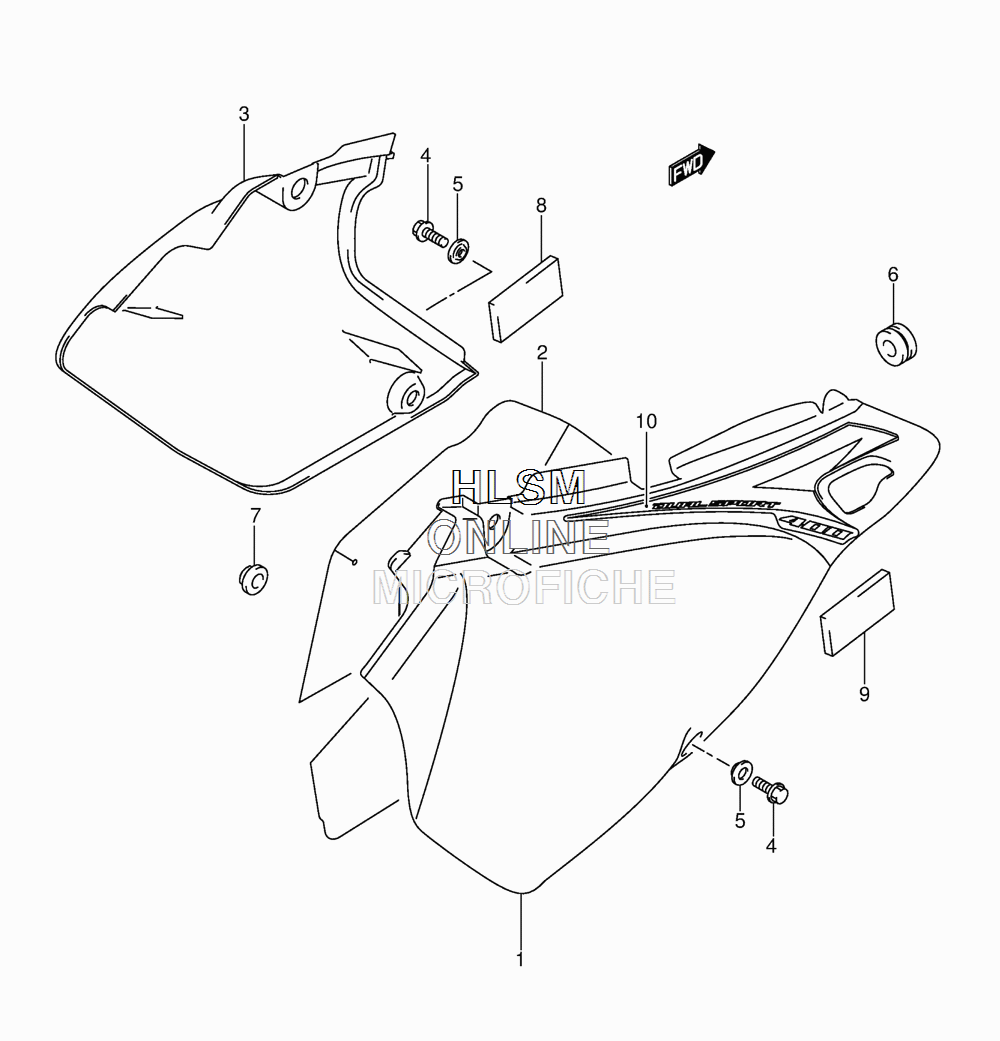

SIDE COVER для Suzuki DR-Z400S - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    47111-29FC0-019 COVER, FRAME RIGHT HAND (BLACK)
    COVER, FRAME RIGHT HAND (BLACK)
  • 1
    47111-29FC0-30H COVER, FRAME RIGHT HAND (WHITE)
    COVER, FRAME RIGHT HAND (WHITE)
  • 2
    47166-29F00 SHIELD, FRAME COVER RIGHT HAND
    SHIELD, FRAME COVER RIGHT HAND
  • 3
    47211-29FA0-019 COVER, FRAME LEFT HAND (BLACK)
    COVER, FRAME LEFT HAND (BLACK)
  • 3
    47211-29FA0-30H COVER, FRAME LEFT HAND (WHITE)
    COVER, FRAME LEFT HAND (WHITE)
  • 4
    09103-06273 BOLT (6X12)
    BOLT (6X12)
  • 5
    09169-06031 WASHER
    WASHER
  • 6
    09320-06504 CUSHION
    CUSHION
  • 7
    09321-10018 CUSHION
    CUSHION
  • 8
    47161-29F00 CUSHION, FRAME COVER LEFT HAND
    CUSHION, FRAME COVER LEFT HAND
  • 9
    71762-65G10 CUSHION, FRAME COVER RIGHT HAND FRONT
    CUSHION, FRAME COVER RIGHT HAND FRONT
  • 10
    68135-29FD0-HMC TAPE, FRAME COVER RIGHT HAND (SILVER/BLACK) FOR 019
    TAPE, FRAME COVER RIGHT HAND (SILVER/BLACK) FOR 019
  • 10
    68135-29FD0-HMD TAPE, FRAME COVER RIGHT HAND (BLUE/WHITE) FOR 30H
    TAPE, FRAME COVER RIGHT HAND (BLUE/WHITE) FOR 30H
