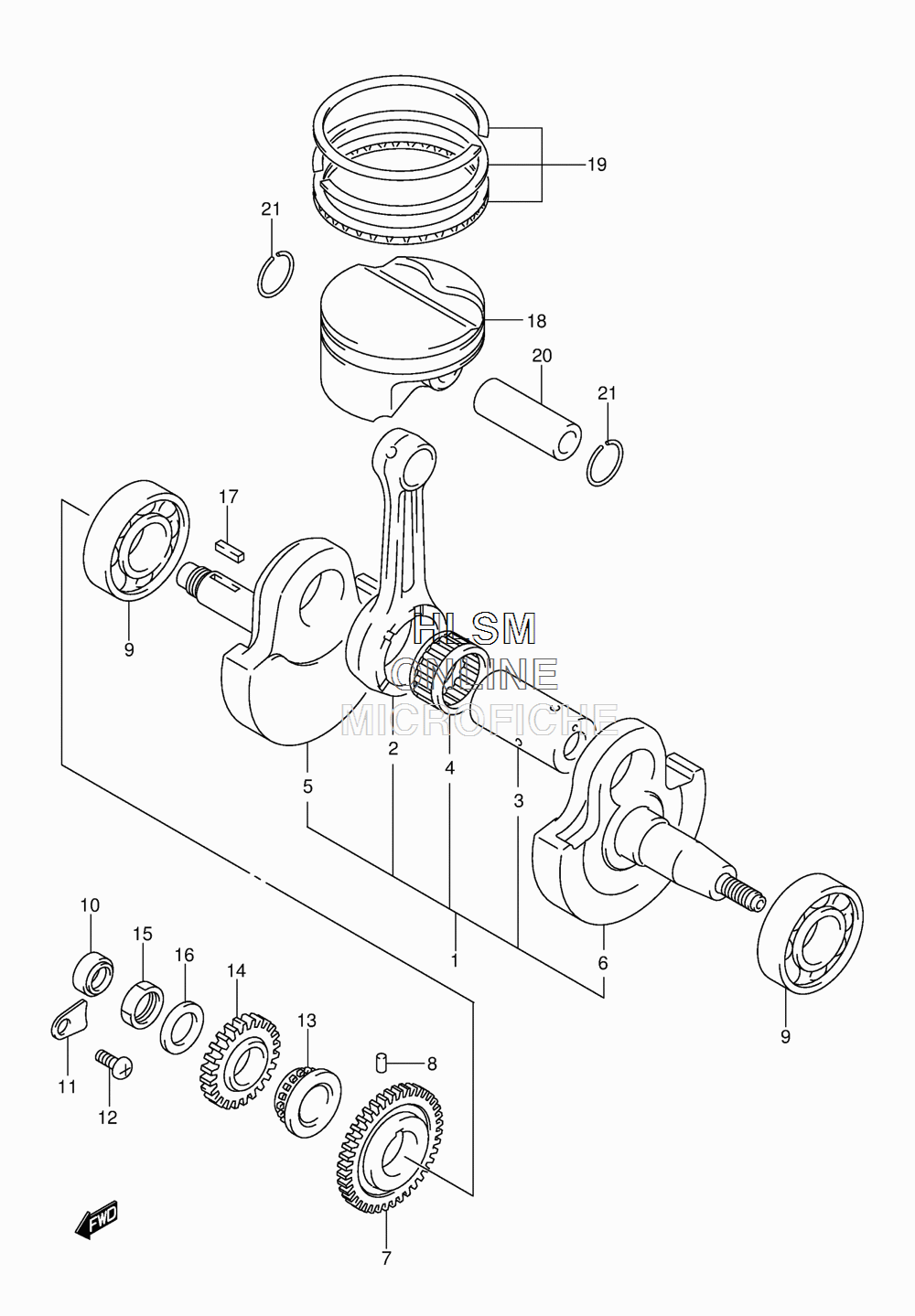

CRANKSHAFT W/ PISTON для Suzuki DR-Z400S - 2014 года выпуска`
-
№АртикулНазвание
-
112200-07G02 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
212160-29F02-0B0 CONNECTING RODCONNECTING ROD
-
312210-29F11 PIN, CRANKPIN, CRANK
-
409263-35044-0B0 BEARING (35X43X22)BEARING (35X43X22)
-
512221-07G01 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
612261-07G00 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
712661-29F00 GEAR, CRANK BALANCER DRIVE (NT:35)GEAR, CRANK BALANCER DRIVE (NT:35)
-
809261-05005 PIN (5X8)PIN (5X8)
-
909262-30100 BEARING (30X72X18)BEARING (30X72X18)
-
1009282-14003 OIL SEAL (14X24X6)OIL SEAL (14X24X6)
-
1124742-18A00 RETAINER, CRANKSHAFT OIL SEAL RIGHT HANDRETAINER, CRANKSHAFT OIL SEAL RIGHT HAND
-
1202112-0612A SCREWSCREW
-
1312731-29F10 SPROCKET, CAM CHAIN DRIVE (NT:17)SPROCKET, CAM CHAIN DRIVE (NT:17)
-
1421111-29F10 GEAR, PRIMARY DRIVE (NT:25)GEAR, PRIMARY DRIVE (NT:25)
-
1509140-18012 NUTNUT
-
1609164-18008 WASHERWASHER
-
1709421-05002 KEYKEY
-
1812111-29F00-0F0 PISTONPISTON
-
1912140-29F00 RING SET, PISTONRING SET, PISTON
-
2012151-24F10 PIN, PISTONPIN, PISTON
-
2109381-20004 SNAP RINGSNAP RING
