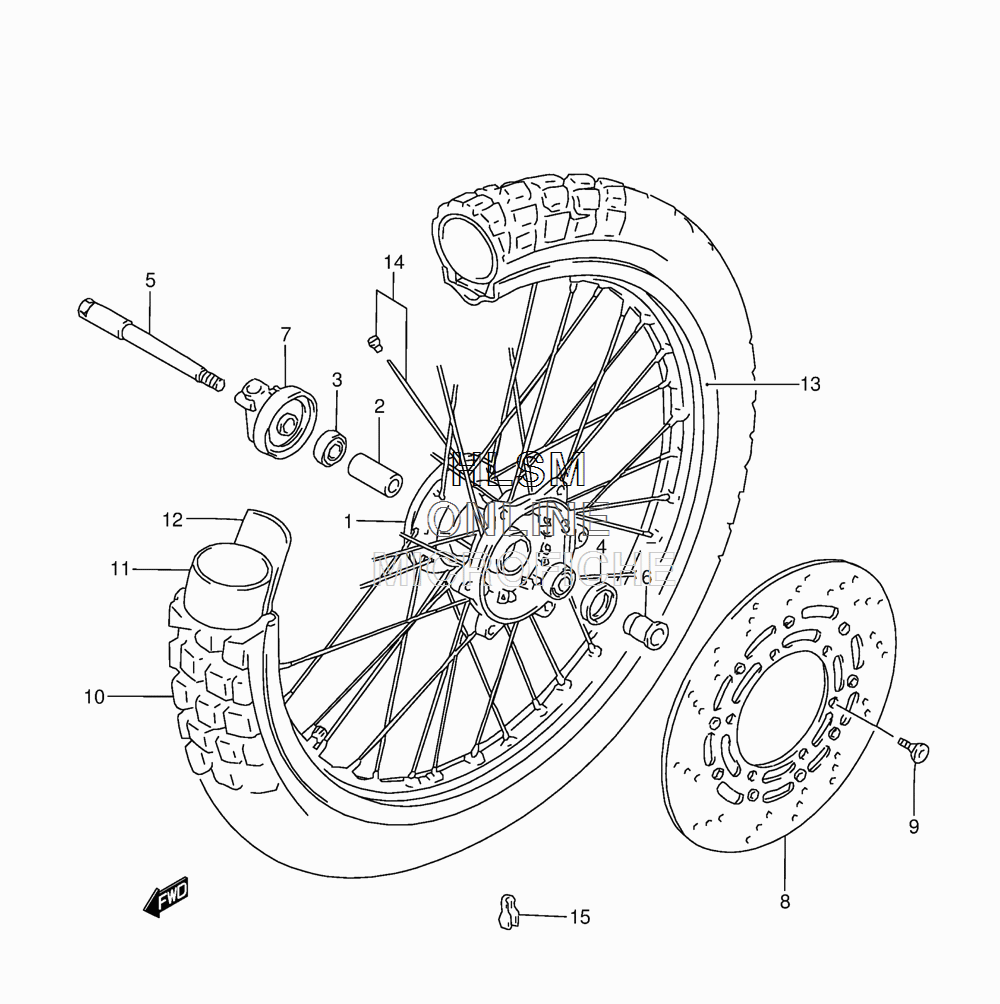

WHEEL - FRONT для Suzuki DR-650SEL4 - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    54111-31D01 HUB, FRONT WHEEL
    HUB, FRONT WHEEL
  • 2
    54731-32E00 SPACER, FRONT HUB
    SPACER, FRONT HUB
  • 3
    08123-60037 BEARING B1 17X35X10
    BEARING B1 17X35X10
  • 4
    09284-23001 OIL SEAL (23X35X6)
    OIL SEAL (23X35X6)
  • 5
    54711-05D01 AXLE, FRONT
    AXLE, FRONT
  • 6
    54751-05D00 SPACER, AXLE, LEFT HAND
    SPACER, AXLE, LEFT HAND
  • 7
    54600-05D00 BOX ASSY, SPEEDOMETER GEAR
    BOX ASSY, SPEEDOMETER GEAR
  • 8
    59220-32E00 DISC, FRONT BRAKE
    DISC, FRONT BRAKE
  • 9
    09106-08155 BOLT (8X20)
    BOLT (8X20)
  • 10
    55110-32E00 TIRE, FRONT (90/90-21 54S) (BRIDGESTONE)
    TIRE, FRONT (90/90-21 54S) (BRIDGESTONE)
  • 11
    55200-32E01 TUBE ASSY, WHEEL INNER
    TUBE ASSY, WHEEL INNER
  • 12
    55261-32E01 PROTECTOR, INNER TUBE
    PROTECTOR, INNER TUBE
  • 13
    55311-44B00 RIM, FRONT WHEEL (1.85X21)
    RIM, FRONT WHEEL (1.85X21)
  • 14
    55320-31D00 SPOKE SET, FRONT WHEEL
    SPOKE SET, FRONT WHEEL
  • 15
    55412-41F00 BALANCER, WHEEL (20G)
    BALANCER, WHEEL (20G)
  • 15
    55413-41F00 BALANCER, WHEEL (30G)
    BALANCER, WHEEL (30G)
