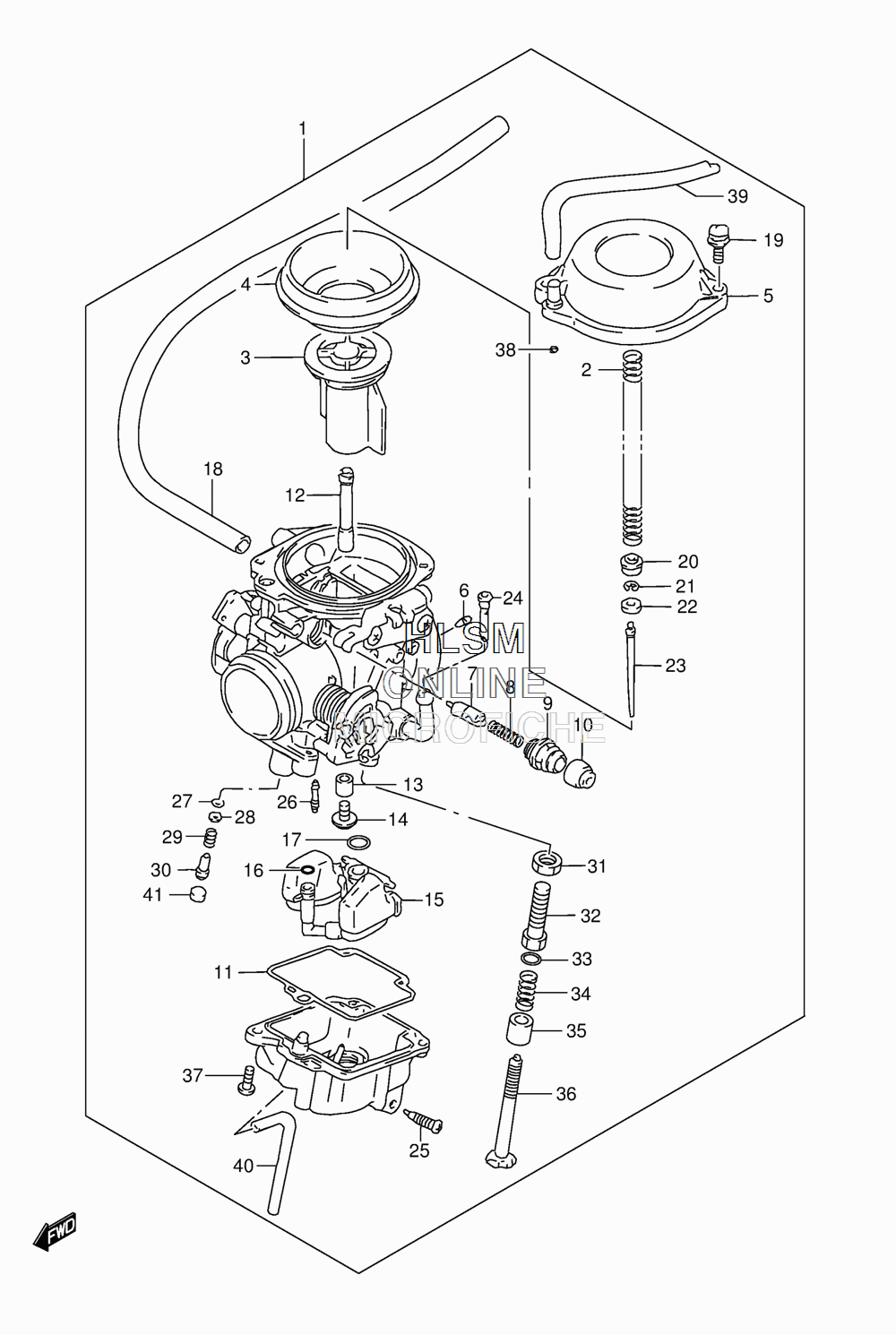

CARBURETOR ASSY. (CALIF.) для Suzuki DR-650SEL4 - 2014 года выпуска`
-
№АртикулНазвание
-
113200-32E61 CARBURETOR ASSYCARBURETOR ASSY
-
213417-17D00 SPRINGSPRING
-
313501-32E00 VALVE, PISTONVALVE, PISTON
-
413507-07D01 DIAPHRAGMDIAPHRAGM
-
513502-41C00 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
609493-20007 JET, PILOT AIR (1.0)JET, PILOT AIR (1.0)
-
713411-12D00 PLUNGER ASSYPLUNGER ASSY
-
813417-22010 SPRINGSPRING
-
913418-43410 HOLDER, GUIDEHOLDER, GUIDE
-
1013681-04010 CAPCAP
-
1113258-44B00 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
1209494-00884 JET, NEEDLE (Y-5M)JET, NEEDLE (Y-5M)
-
1313331-07D00 RINGRING
-
1409491-28010 JET, MAIN (140)JET, MAIN (140)
-
1513250-12EH0 FLOAT/NEEDLE VALVE ASSYFLOAT/NEEDLE VALVE ASSY
-
1613374-46710 O RINGO RING
-
1713374-35C00 O RINGO RING
-
1813683-32E00 HOSE (6.5X10.5X275)HOSE (6.5X10.5X275)
-
1902112-7516A SCREWSCREW
-
2013331-12D00 RINGRING
-
2113394-31210 E RINGE RING
-
2213387-07D00 RINGRING
-
2313383-32E10 NEEDLE, JET (6F23-1)NEEDLE, JET (6F23-1)
-
2413236-12C00 FILTERFILTER
-
2513247-13A00 SCREW, DRAINSCREW, DRAIN
-
2609492-42010 JET, PILOT (42.5)JET, PILOT (42.5)
-
2713295-29900 O RINGO RING
-
2813291-29900 WASHERWASHER
-
2913268-47070 SPRINGSPRING
-
3013279-47070 SCREW, PILOT (1,1/2)SCREW, PILOT (1,1/2)
-
3113607-37010 NUTNUT
-
3213267-31D00 ADJUSTERADJUSTER
-
3313615-43010 WASHERWASHER
-
3413271-33C00 SPRINGSPRING
-
3513432-95210 RINGRING
-
3613267-31D10 ADJUSTERADJUSTER
-
3713601-05148-XC0 SCREWSCREW
-
3813278-02340 O RINGO RING
-
3909355-45855-600 HOSE (4.5X8.5X600)HOSE (4.5X8.5X600)
-
4013684-32E10 HOSE (3X5X450)HOSE (3X5X450)
-
4113281-05A00 PLUGPLUG
