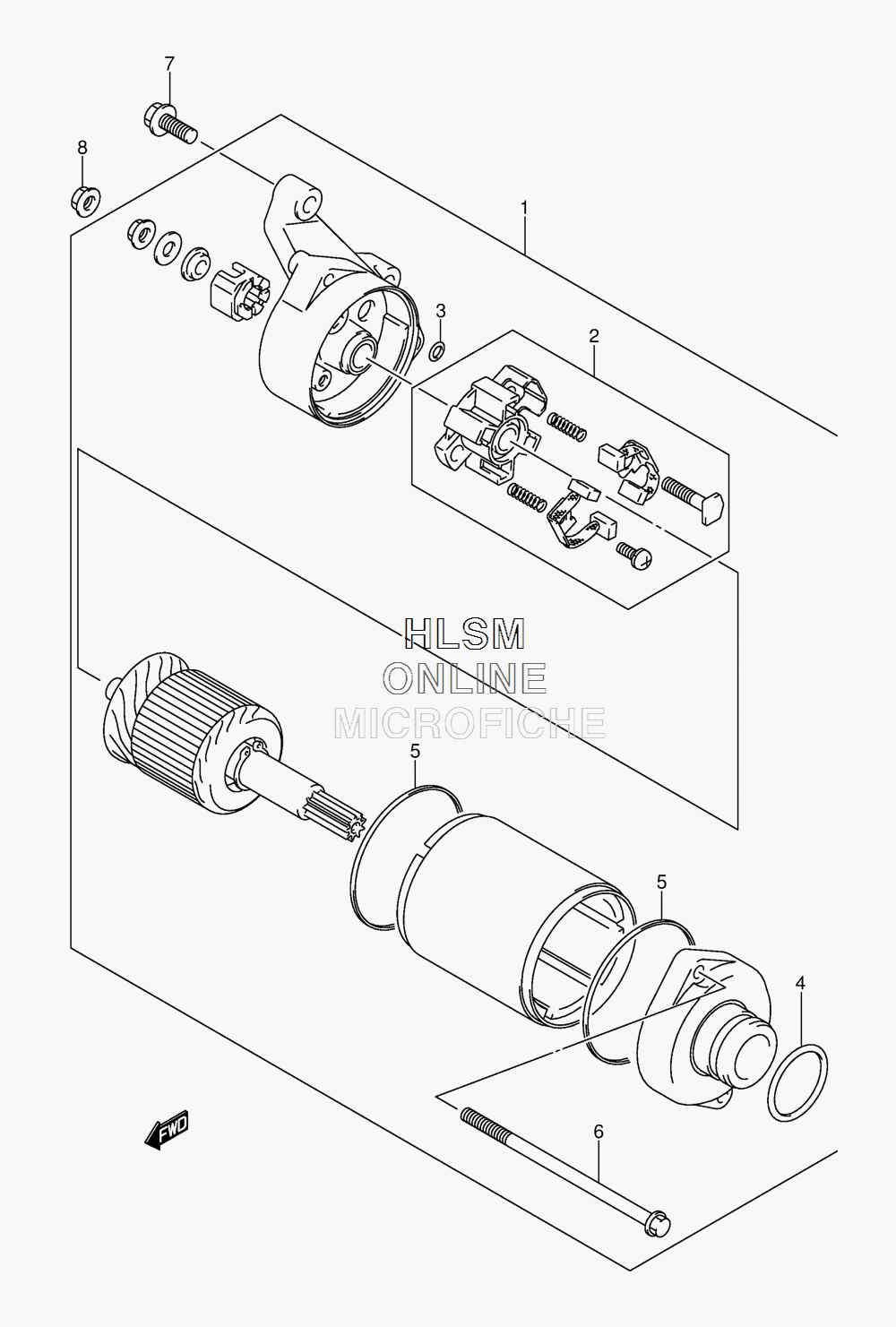

STARTING MOTOR для Suzuki DL-650AL4 - 2014 года выпуска`
-
№АртикулНазвание
-
131100-19F10 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231132-18H00 BRUSH HOLDER SETBRUSH HOLDER SET
-
331143-49040 O RINGO RING
-
431156-98E00 O RINGO RING
-
531264-38F10 SQUARE RINGSQUARE RING
-
631280-19F10 SET BOLTSET BOLT
-
709103-06212 BOLT (6X25)BOLT (6X25)
-
808361-3506A NUTNUT
