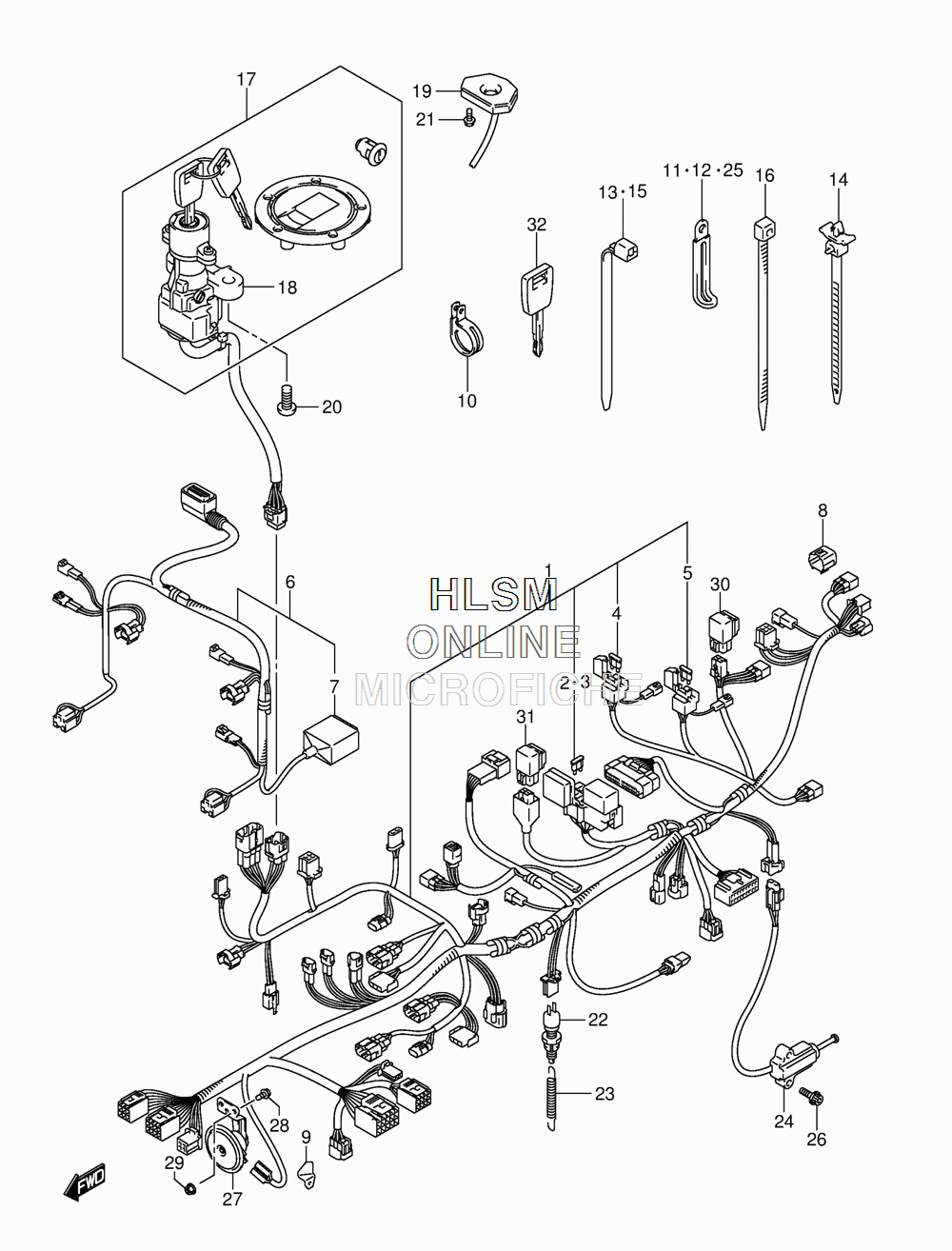

ELECTRICAL - WIRING HARNESS для Suzuki DL-650AL4 - 2014 года выпуска`
-
№АртикулНазвание
-
136610-11JE0 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
209481-10501 FUSE (10A)FUSE (10A)
-
309481-15501 FUSE (15A)FUSE (15A)
-
409481-15101 FUSE (15A)FUSE (15A)
-
509481-25103 FUSE (25A)FUSE (25A)
-
636620-11J00 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
736618-47H00 CAPCAP
-
836654-06J00 CAP, TSCAP, TS
-
936711-11J00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
1009403-26401 CLAMPCLAMP
-
1109404-06429 CLAMP (L:45)CLAMP (L:45)
-
1209404-06433 CLAMP (L:95)CLAMP (L:95)
-
1309407-14403 CLAMP (L:125)CLAMP (L:125)
-
1409407-14408 CLAMP (L:120)CLAMP (L:120)
-
1509407-18402 CLAMP (L:165)CLAMP (L:165)
-
1609407-14407 CLAMP (L:145)CLAMP (L:145)
-
1737000-11860 LOCK SETLOCK SET
-
1837100-11J10 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1937180-15H00 COVER, STEERING LOCKCOVER, STEERING LOCK
-
2009139-08016 BOLT (8X20)BOLT (8X20)
-
2101547-0512B BOLTBOLT
-
2237740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2309443-06012 SPRINGSPRING
-
2437840-06G00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2509404-06429 CLAMP (L:45)CLAMP (L:45)
-
2601550-0616B BOLTBOLT
-
2738500-11J00 HORN ASSYHORN ASSY
-
2809118-06017 BOLT (6X16)BOLT (6X16)
-
2908316-1006B NUTNUT
-
3038740-24X50 RELAY ASSYRELAY ASSY
-
3138740-24X50 RELAY ASSYRELAY ASSY
-
3237146-11J00 KEY, BLANKKEY, BLANK
