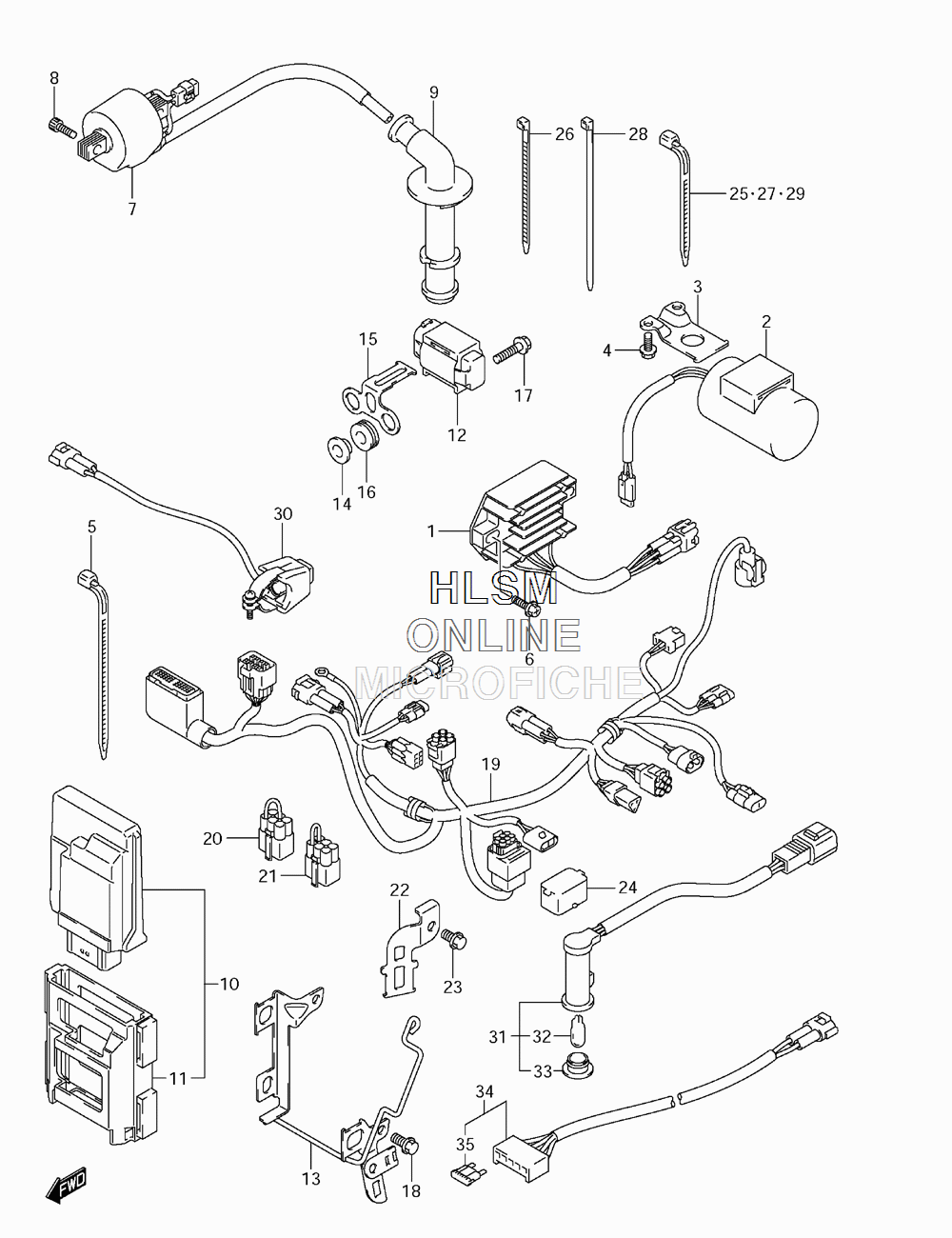

ELECTRICAL для Suzuki RM-Z450L3 - 2013 года выпуска

№

Артикул

Название
1

32800-28H00 RECTIFIER ASSY

RECTIFIER ASSY
2

33640-28H00 CONDENSER ASSY

CONDENSER ASSY
3

33641-28H00 BRACKET, CONDENSER

BRACKET, CONDENSER
4

09103-06188 BOLT (6X10)

BOLT (6X10)
5

09407-25401 CLAMP (L:235)

CLAMP (L:235)
6

02162-0620C SCREW

SCREW
7

33410-28H00 COIL ASSY, IGNITION

COIL ASSY, IGNITION
8

07130-0620A BOLT

BOLT
9

33510-28H00 CAP ASSY, SPARK PLUG

CAP ASSY, SPARK PLUG
10

32920-28HA0 CONTROL UNIT, FI

CONTROL UNIT, FI
11

32981-28HA0 ...CUSHION, FI CONTROL UNIT

...CUSHION, FI CONTROL UNIT
12

33960-06G10 SENSOR ASSY, FUEL CUT

SENSOR ASSY, FUEL CUT
13

32931-28H00 BRACKET, FI CONTROL UNIT

BRACKET, FI CONTROL UNIT
14

09180-06331 SPACER (6.2X8.4X10.9)

SPACER (6.2X8.4X10.9)
15

33961-28HA0 BRACKET, FUEL CUT SENSOR

BRACKET, FUEL CUT SENSOR
16

09320-08501 CUSHION

CUSHION
17

09116-06103 BOLT (6X30)

BOLT (6X30)
18

01550-0610A BOLT

BOLT
19

36610-28H40 HARNESS, WIRING

HARNESS, WIRING
20

36852-28H00 WIRE, SHORT

WIRE, SHORT
21

36852-49H00 WIRE, SHORT

WIRE, SHORT
22

36672-28H10 BRACKET, COUPLER

BRACKET, COUPLER
23

01547-0610A BOLT

BOLT
24

36654-46H00 CAP, TS

CAP, TS
25

09407-11401 CLAMP (L:95)

CLAMP (L:95)
26

09407-10403 CLAMP (L:95)

CLAMP (L:95)
27

09407-14403 CLAMP (L:125)

CLAMP (L:125)
28

09407-14407 CLAMP (L:145)

CLAMP (L:145)
29

09407-18402 CLAMP (L:165)

CLAMP (L:165)
30

37820-36E00 SWITCH ASSY, ENGINE STOP

SWITCH ASSY, ENGINE STOP
31

36380-28H00 LAMP ASSY, FI INDICATOR

LAMP ASSY, FI INDICATOR
32

09471-12028 ...BULB (12V,3.4W)

...BULB (12V,3.4W)
33

36321-28H00 ...LENS (RED)

...LENS (RED)
34

36890-28H00 WIRE, BATTERY

WIRE, BATTERY
35

09481-10101 ...FUSE (10A)

...FUSE (10A)
