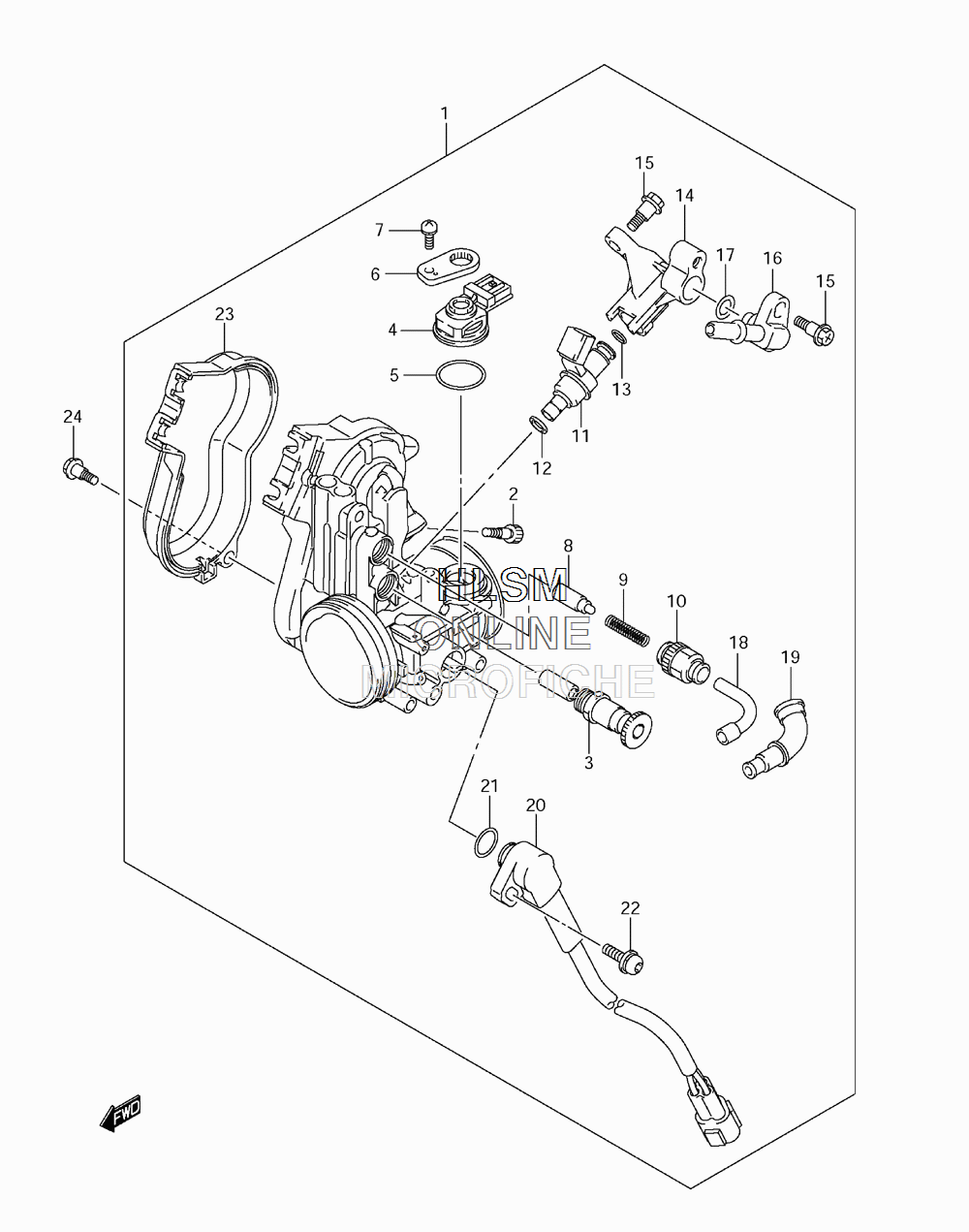

CARBURETOR - THROTTLE BODY для Suzuki RM-Z450L3 - 2013 года выпуска

№

Артикул

Название
1

13401-28H40 BODY ASSY, THROTTLE

BODY ASSY, THROTTLE
2

13296-28H00 ...SCREW, STOP

...SCREW, STOP
3

13410-28H00 ...STARTER VALVE

...STARTER VALVE
4

15620-05H00 ...SENSOR, MAP

...SENSOR, MAP
5

15621-05H00 ...O RING

...O RING
6

13565-28H10 ...PLATE, STAY

...PLATE, STAY
7

13601-15F20 ...SCREW

...SCREW
8

13411-28H00 ...STARTER VALVE

...STARTER VALVE
9

13271-45G00 ...SPRING

...SPRING
10

13581-45G00 ...HOLDER, CABLE

...HOLDER, CABLE
11

15710-02J00 ...INJECTOR ASSY

...INJECTOR ASSY
12

15722-21H00 ...RING, SEAL

...RING, SEAL
13

15721-21H00 ...O RING

...O RING
14

13471-28H00 ...PIPE, FUEL

...PIPE, FUEL
15

13452-28H10 ...SCREW

...SCREW
16

13685-28H00 ...JOINT

...JOINT
17

15721-24F00 ...O RING

...O RING
18

13579-28H00 ...GUIDE, CABLE

...GUIDE, CABLE
19

13681-45G00 ...CAP

...CAP
20

13580-28H11 ...SENSOR ASSY, THROTTLE

...SENSOR ASSY, THROTTLE
21

13575-40F00 ...O RING

...O RING
22

13605-28H10 ...SCREW

...SCREW
23

13484-28H00 ...COVER

...COVER
24

13601-28H00 SCREW

SCREW
