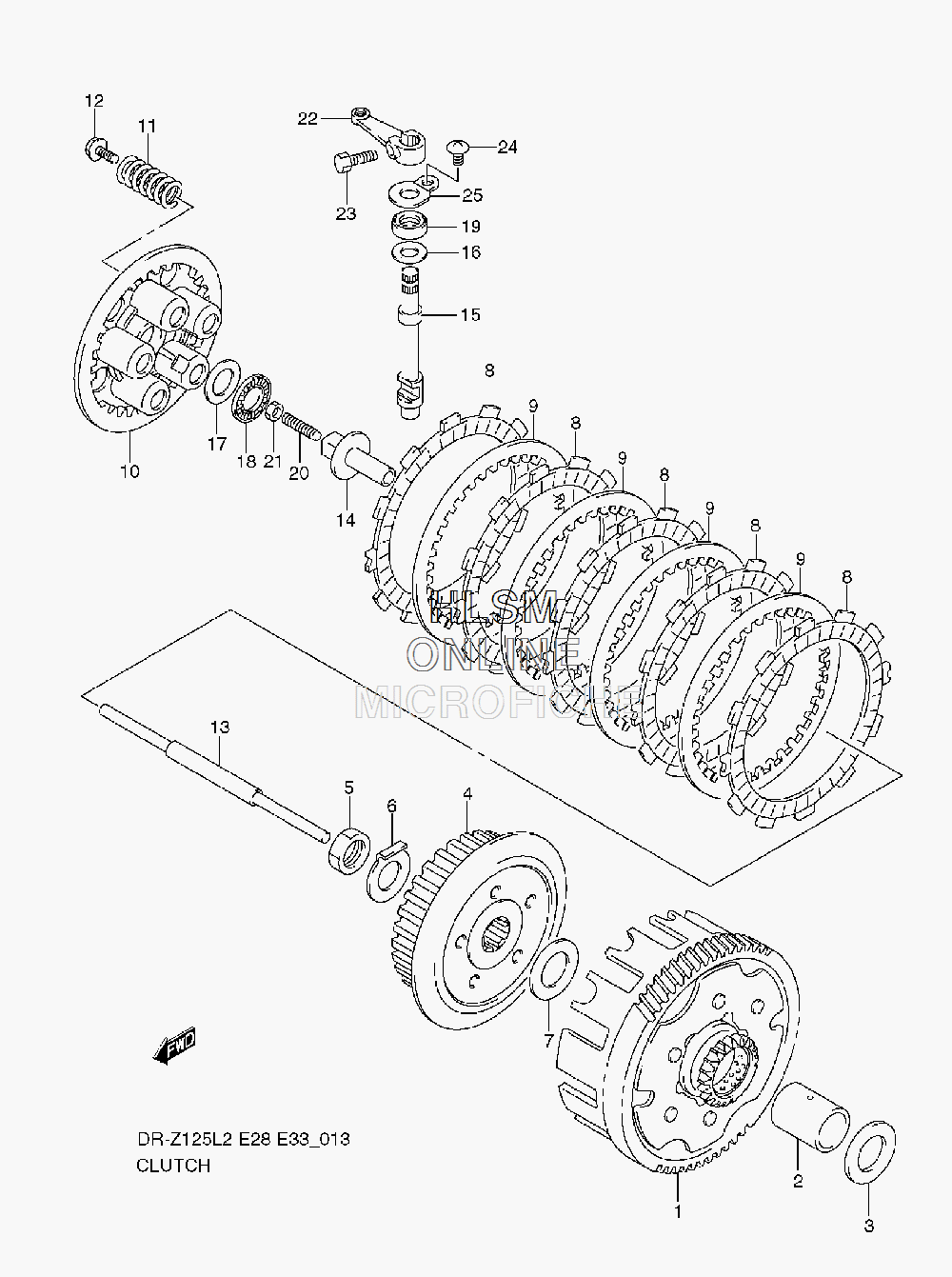

CLUTCH для Suzuki DR-Z125LL2 - 2012 года выпуска

№

Артикул

Название
1

21200-44812 GEAR ASSY, PRIMARY (NT:59/20)

GEAR ASSY, PRIMARY (NT:59/20)
2

21251-05200 SPACER, PRIMARY DRIVEN GEAR

SPACER, PRIMARY DRIVEN GEAR
3

08211-20353 THRUST WASHER

THRUST WASHER
4

21411-05200 HUB, CLUTCH SLEEVE

HUB, CLUTCH SLEEVE
5

09140-16001 NUT

NUT
6

09169-16003 WASHER

WASHER
7

08211-20352 THRUST WASHER

THRUST WASHER
8

21441-25C01 PLATE, CLUTCH DRIVE (T:3.0)

PLATE, CLUTCH DRIVE (T:3.0)
9

21451-19A00 PLATE, CLUTCH DRIVEN (T:1.6)

PLATE, CLUTCH DRIVEN (T:1.6)
10

21462-14103 DISC, CLUTCH PRESSURE

DISC, CLUTCH PRESSURE
11

09440-15021 SPRING

SPRING
12

09116-05020 BOLT (5X16)

BOLT (5X16)
13

23110-05203 ROD, CLUTCH PUSH

ROD, CLUTCH PUSH
14

23121-38201 PIECE, CLUTCH PUSH

PIECE, CLUTCH PUSH
15

23122-05200 CAM SHAFT, CLUTCH RELEASE

CAM SHAFT, CLUTCH RELEASE
16

09181-10195 THRUST WASHER (10X20X1.0)

THRUST WASHER (10X20X1.0)
17

09160-15045 WASHER (15.5X28X1.0)

WASHER (15.5X28X1.0)
18

09263-15003 BEARING (15X28X2)

BEARING (15X28X2)
19

09282-10012 OIL SEAL (10X20X6)

OIL SEAL (10X20X6)
20

09134-06010 SCREW (6X25)

SCREW (6X25)
21

09140-06023 NUT (6X3.6)

NUT (6X3.6)
22

23271-46010 ARM, CLUTCH RELEASE

ARM, CLUTCH RELEASE
23

01500-0616A BOLT

BOLT
24

02142-0610A SCREW

SCREW
25

23117-05200 RETAINER, OIL SEAL

RETAINER, OIL SEAL
