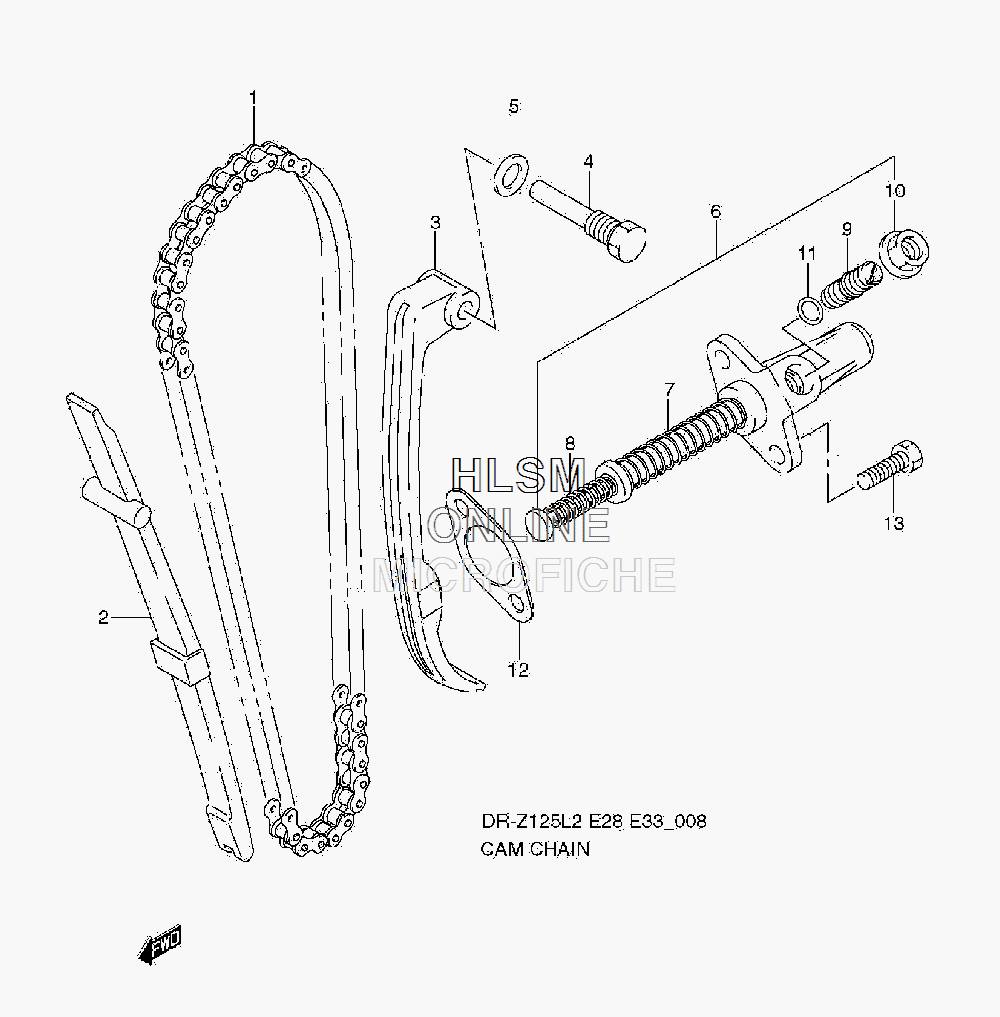

CAM CHAIN ASSY. W/ TENSIONER для Suzuki DR-Z125LL2 - 2012 года выпуска
-
№АртикулНазвание
-
112760-44A00 CHAIN, CAM SHAFT DRIVE 98LECHAIN, CAM SHAFT DRIVE 98LE
-
212771-05200 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-05220 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
412812-32400 BOLT, CAM CHAIN TENSIONERBOLT, CAM CHAIN TENSIONER
-
509168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
612830-05230 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
709440-12030 SPRINGSPRING
-
809440-08035 SPRINGSPRING
-
912838-08G00 BOLT, ADJUSTBOLT, ADJUST
-
1008316-1008B NUTNUT
-
1109280-06005 O RING (D:1.9,ID:5.7)O RING (D:1.9,ID:5.7)
-
1212837-32410 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
1301547-0620A BOLTBOLT
