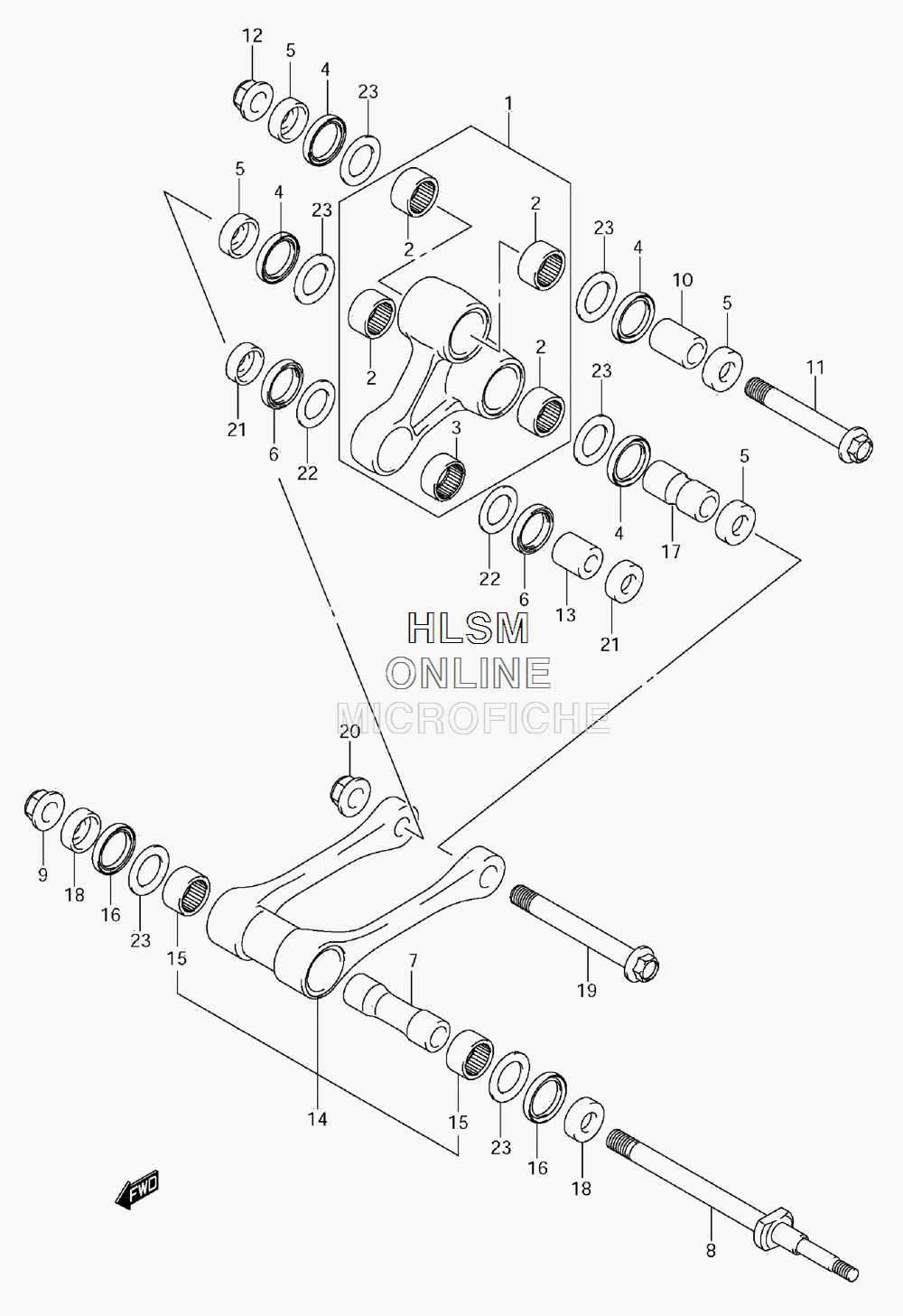

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki RM-Z250L1 - 2011 года выпуска
-
№АртикулНазвание
-
162600-28880 LEVER SET, REAR CUSHION (INCL. 2-3)LEVER SET, REAR CUSHION (INCL. 2-3)
-
209263-20090 BEARING (20X26X14)BEARING (20X26X14)
-
309263-16033 BEARING (16X22X12)BEARING (16X22X12)
-
409285-24001 DUST SEAL (24X31X5)DUST SEAL (24X31X5)
-
562647-28H10 SPACERSPACER
-
609284-22003 SEAL, (20X26X4)SEAL, (20X26X4)
-
762317-28H10 SPACER, RR CUSHION RODSPACER, RR CUSHION ROD
-
862621-28H00 BOLT, RR CUSHION RODBOLT, RR CUSHION ROD
-
909159-12056 NUTNUT
-
1062648-28H10 SPACER, CENTER (15X20X44)SPACER, CENTER (15X20X44)
-
1162658-37F10 BOLT, CENTERBOLT, CENTER
-
1209159-12056 NUTNUT
-
1362684-28H10 SPACER, REAR CUSHION LEVERSPACER, REAR CUSHION LEVER
-
1462600-28890 ROD SET, REAR CUSHION LEVER (INC 15)ROD SET, REAR CUSHION LEVER (INC 15)
-
1509263-20090 BEARING (20X26X14)BEARING (20X26X14)
-
1609285-24001 SEAL (24X31X5)SEAL (24X31X5)
-
1762646-28H10 SPACER, RR CUSHION LOWERSPACER, RR CUSHION LOWER
-
1862647-28H10 SPACERSPACER
-
1962657-37F10 BOLT, RODBOLT, ROD
-
2009159-12056 NUTNUT
-
2162686-28H10 SPACER, SIDESPACER, SIDE
-
2209181-16214 SHIM (16X28X0.5)SHIM (16X28X0.5)
-
2308211-20301 WASHERWASHER
