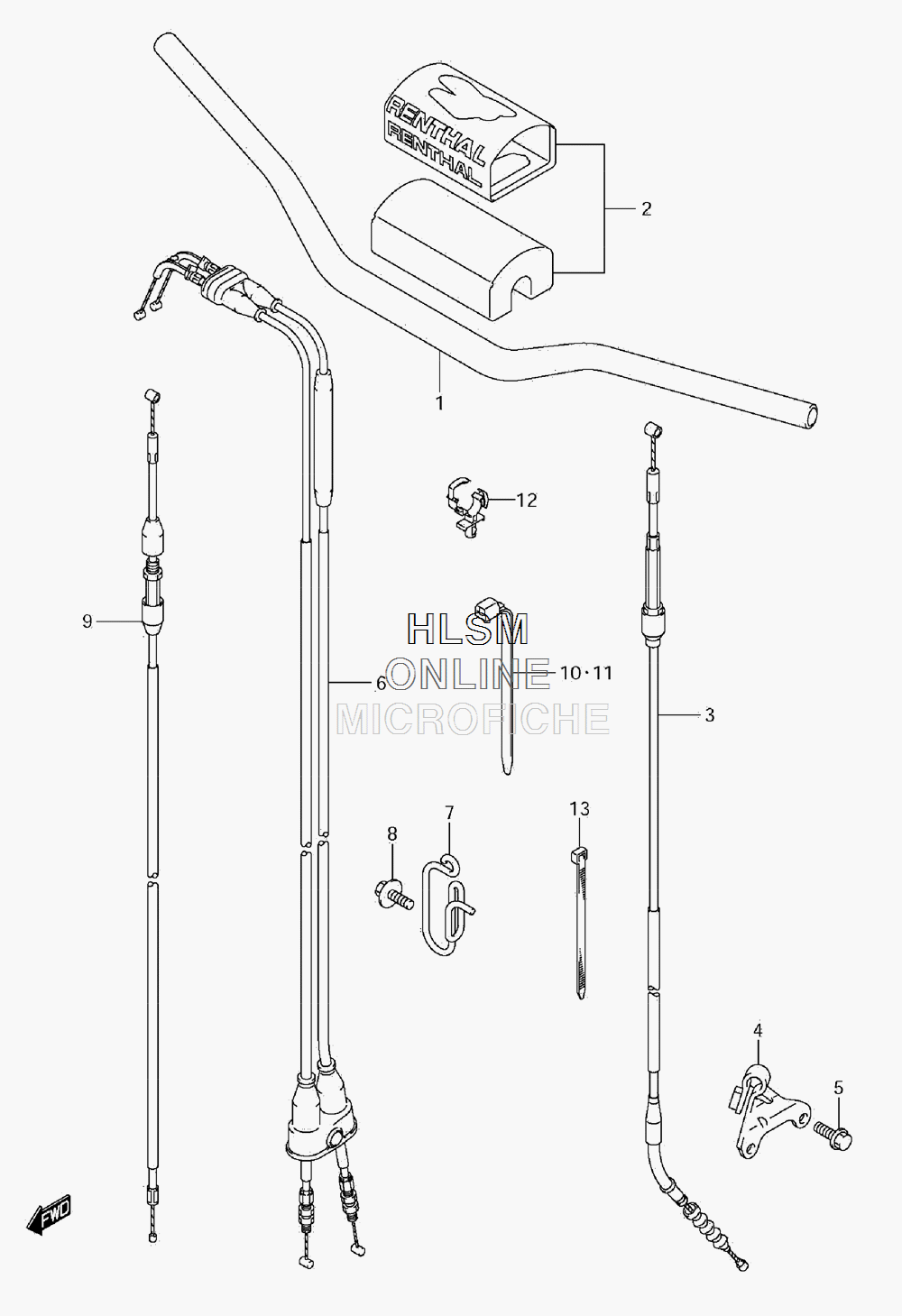

HANDLEBAR для Suzuki RM-Z250L1 - 2011 года выпуска
-
№АртикулНазвание
-
156111-35G10 HANDLEBARHANDLEBAR
-
256170-35G20 PAD, HANDLEBARPAD, HANDLEBAR
-
358210-49H10 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
458212-49H00 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
-
509103-06233 BOLT (6X12)BOLT (6X12)
-
658301-28H10 CABLE SET, THROTTLECABLE SET, THROTTLE
-
758311-49H00 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
809139-06139 SCREW (6X16)SCREW (6X16)
-
958900-28H00 CABLE ASSY, HOT STARTERCABLE ASSY, HOT STARTER
-
1009407-14403 CLAMP (L:125)CLAMP (L:125)
-
1109407-17403 CLAMP (L:154)CLAMP (L:154)
-
1209403-18307 CLAMPCLAMP
-
1309407-10403 CLAMP (L:95)CLAMP (L:95)
