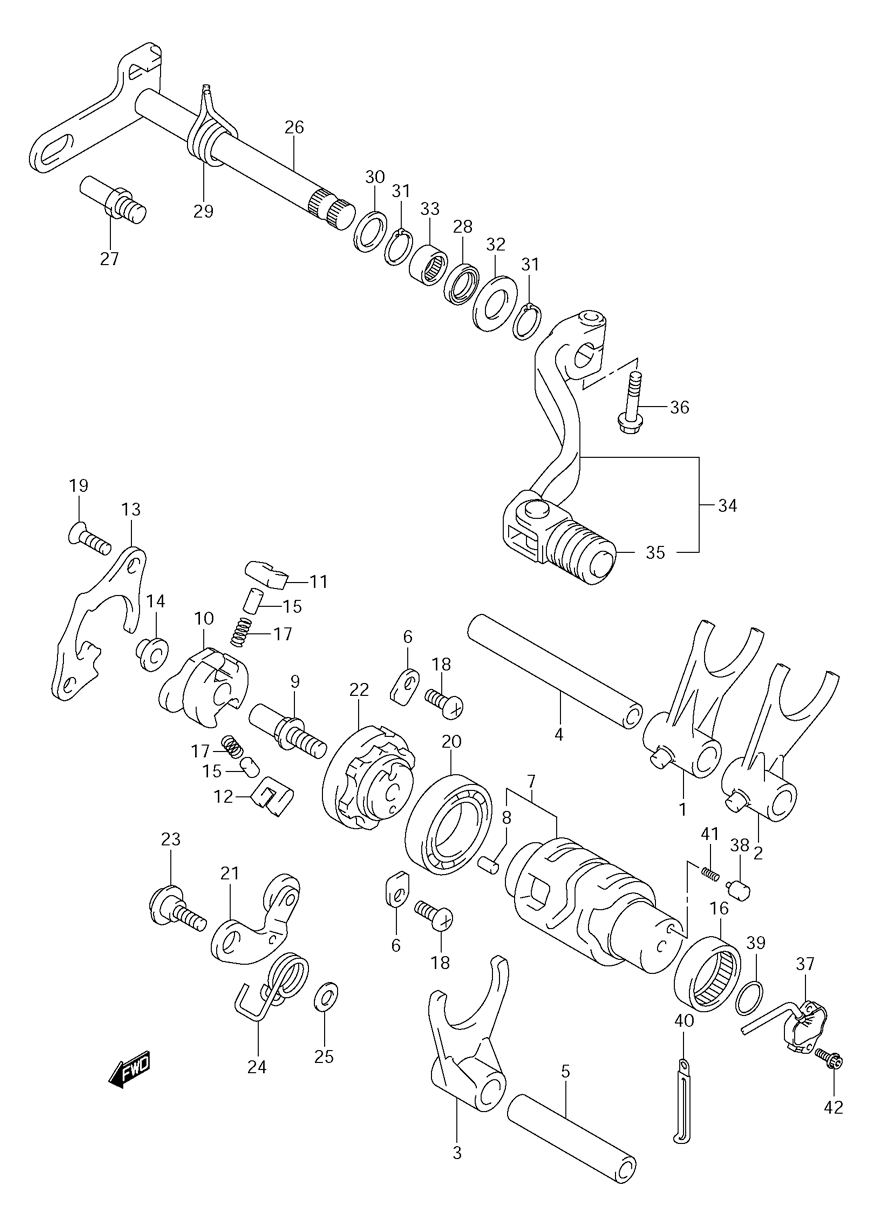

GEAR SHIFTING для Suzuki DR-Z400SMK9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    25211-28C01 FORK, GEAR SHIFT NO.1
    FORK, GEAR SHIFT NO.1
  • 2
    25221-28C02 FORK, GEAR SHIFT NO.2
    FORK, GEAR SHIFT NO.2
  • 3
    25231-28C02 FORK, GEAR SHIFT NO.3
    FORK, GEAR SHIFT NO.3
  • 4
    25411-37F20 SHAFT, GEAR FORK NO.1
    SHAFT, GEAR FORK NO.1
  • 5
    25421-27C01 SHAFT, GEAR FORK NO.2
    SHAFT, GEAR FORK NO.2
  • 6
    24741-21A00 RETAINER, SHIFT CAM BEARING
    RETAINER, SHIFT CAM BEARING
  • 7
    25310-29F10 CAM, GEAR SHIFT
    CAM, GEAR SHIFT
  • 8
    04221-04089 ...PIN, SHIFT CAM
    ...PIN, SHIFT CAM
  • 9
    25313-27C02 PIN, SHIFT
    PIN, SHIFT
  • 10
    25322-36E00 SHIFTER, GEAR SHIFT CAM
    SHIFTER, GEAR SHIFT CAM
  • 11
    25323-34201 PAWL, GEAR SHIFT NO.1
    PAWL, GEAR SHIFT NO.1
  • 12
    25324-34201 PAWL, GEAR SHIFT NO.2
    PAWL, GEAR SHIFT NO.2
  • 13
    25331-37E10 LIFTER, GEAR SHIFT PAWL
    LIFTER, GEAR SHIFT PAWL
  • 14
    09180-07014 ROLLER, GEAR CAM SHIFTER
    ROLLER, GEAR CAM SHIFTER
  • 15
    09261-05003 PIN, SHIFT POLE (5X8)
    PIN, SHIFT POLE (5X8)
  • 16
    09263-25018 BEARING, SHIFT CAM LEFT HAND
    BEARING, SHIFT CAM LEFT HAND
  • 17
    09440-04003 SPRING, SHIFT PAWL RETURN
    SPRING, SHIFT PAWL RETURN
  • 18
    09125-06110 SCREW, SHIFT CAM BEARING
    SCREW, SHIFT CAM BEARING
  • 19
    09126-06011 SCREW, SHIFT PAWL LIFTER
    SCREW, SHIFT PAWL LIFTER
  • 20
    08113-69050 BEARING, SHIFT CAM RIGHT HAND
    BEARING, SHIFT CAM RIGHT HAND
  • 21
    25350-29F00 STOPPER, SHIFT CAM
    STOPPER, SHIFT CAM
  • 22
    25381-36E11 PLATE, SHIFT CAM STOPPER
    PLATE, SHIFT CAM STOPPER
  • 23
    25357-29F00 BOLT, CAM STOPPER ARM
    BOLT, CAM STOPPER ARM
  • 24
    25355-29F00 SPRING, SHIFT CAM
    SPRING, SHIFT CAM
  • 25
    08211-06121 WASHER, SHIFT CAM
    WASHER, SHIFT CAM
  • 26
    25510-29F00 SHAFT, GEAR SHIFT
    SHAFT, GEAR SHIFT
  • 27
    25671-38B00 STOPPER, GEAR SHIFT ARM
    STOPPER, GEAR SHIFT ARM
  • 28
    09283-14006 SEAL, SHIFT SHAFT OIL
    SEAL, SHIFT SHAFT OIL
  • 29
    09444-20004 SPRING, SHIFT SHAFT RETURN
    SPRING, SHIFT SHAFT RETURN
  • 30
    09181-14139 WASHER, GEAR SHAFT
    WASHER, GEAR SHAFT
  • 31
    08331-3114A CIRCLIP, GEAR SHAFT
    CIRCLIP, GEAR SHAFT
  • 32
    09160-14046 WASHER, GEAR SHIFT LEFT HAND
    WASHER, GEAR SHIFT LEFT HAND
  • 33
    09263-14027 BEARING, GEAR SHAFT (14X20X12)
    BEARING, GEAR SHAFT (14X20X12)
  • 34
    25600-05D02 LEVER ASSEMBLY, GEAR SHIFT
    LEVER ASSEMBLY, GEAR SHIFT
  • 35
    25652-03D00 ...RUBBER, GEAR PEDAL
    ...RUBBER, GEAR PEDAL
  • 36
    01547-0625A BOLT, GEAR SHIFT
    BOLT, GEAR SHIFT
  • 37
    37730-20F10 BASE ASSEMBLY, GEAR SHIFT TERM
    BASE ASSEMBLY, GEAR SHIFT TERM
  • 38
    09209-05011 CONTACT
    CONTACT
  • 39
    09280-26005 O RING (DIAMETER: 2.4,INSIDE DIAMETER: 26.2)
    O RING (DIAMETER: 2.4,INSIDE DIAMETER: 26.2)
  • 40
    09404-06429 CLAMP (LENGTH: 45)
    CLAMP (LENGTH: 45)
  • 41
    09440-04010 SPRING
    SPRING
  • 42
    07120-0516A SCREW
    SCREW
