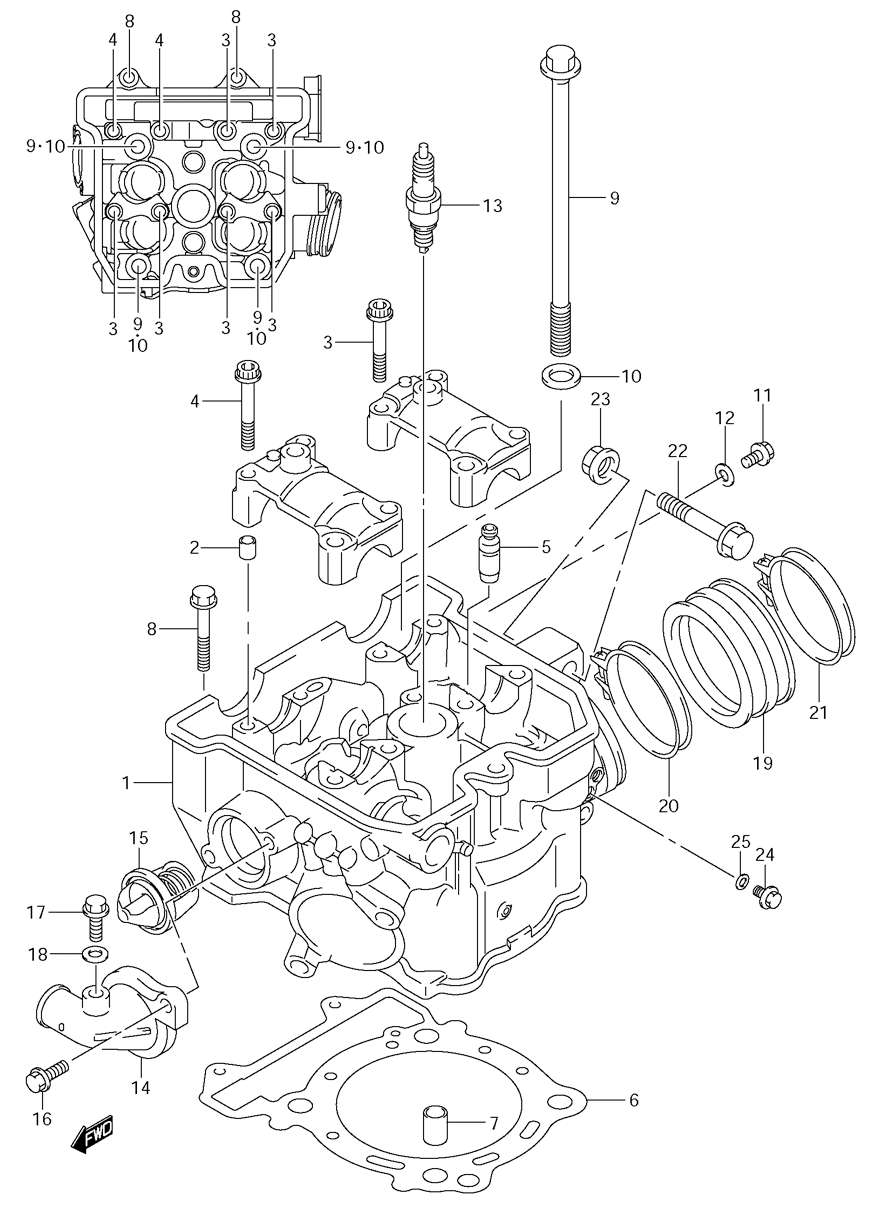

CYLINDER HEAD для Suzuki DR-Z400SMK9 - 2009 года выпуска`
-
№АртикулНазвание
-
111100-29F11 HEAD ASSEMBLY, CYLINDERHEAD ASSEMBLY, CYLINDER
-
209206-08001 ...PIN...PIN
-
307120-0640B ...BOLT...BOLT
-
407120-0645B ...BOLT...BOLT
-
511115-20E70 GUIDE, VALVE (OVER SIZE: 0.3) (OPTIONAL)GUIDE, VALVE (OVER SIZE: 0.3) (OPTIONAL)
-
611141-29F01 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
704211-13189 PIN (LENGTH: 18)PIN (LENGTH: 18)
-
809103-06504 BOLT (6X39)BOLT (6X39)
-
909103-10276 BOLT (10X175)BOLT (10X175)
-
1009160-10082 WASHER (10.5X19X2)WASHER (10.5X19X2)
-
1101550-0610B PLUG, OIL GALLERYPLUG, OIL GALLERY
-
1209168-06023 GASKETGASKET
-
1309482-00456 SPARK PLUG (NGK,CR8E)SPARK PLUG (NGK,CR8E)
-
1309482-00457 SPARK PLUG (DENSO,U24ESR-N)SPARK PLUG (DENSO,U24ESR-N)
-
1309482-00516 SPARK PLUG (NGK,CR7E) (OPTIONAL)SPARK PLUG (NGK,CR7E) (OPTIONAL)
-
1309482-00458 SPARK PLUG (NGK,CR9E) (OPTIONAL)SPARK PLUG (NGK,CR9E) (OPTIONAL)
-
1309482-00460 SPARK PLUG (NGK,CR10E) (OPTIONAL)SPARK PLUG (NGK,CR10E) (OPTIONAL)
-
1309482-00515 SPARK PLUG (DENSO,U22ESR-N) (OPTIONAL)SPARK PLUG (DENSO,U22ESR-N) (OPTIONAL)
-
1309482-00459 SPARK PLUG (DENSO,U27ESR-N) (OPTIONAL)SPARK PLUG (DENSO,U27ESR-N) (OPTIONAL)
-
1309482-00461 SPARK PLUG (DENSO,U31ESR-N) (OPTIONAL)SPARK PLUG (DENSO,U31ESR-N) (OPTIONAL)
-
1417661-29F10 COVER, THERMOSTATCOVER, THERMOSTAT
-
1517670-33400 THERMOSTAT, WATERTHERMOSTAT, WATER
-
1601547-0616B BOLTBOLT
-
1717568-50F00 BOLT, AIR RELEASEBOLT, AIR RELEASE
-
1809168-06026 GASKET, RELEASEGASKET, RELEASE
-
1913111-29F10 PIPE, INTAKEPIPE, INTAKE
-
2009402-58208 CLAMP, HEADCLAMP, HEAD
-
2109402-52208 CLAMP, CARBURETORCLAMP, CARBURETOR
-
2209103-10235 BOLT (10X50)BOLT (10X50)
-
2309159-10115 NUTNUT
-
2409103-08335 PLUG, INTAKE PORT (8X9.5)PLUG, INTAKE PORT (8X9.5)
-
2509168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
