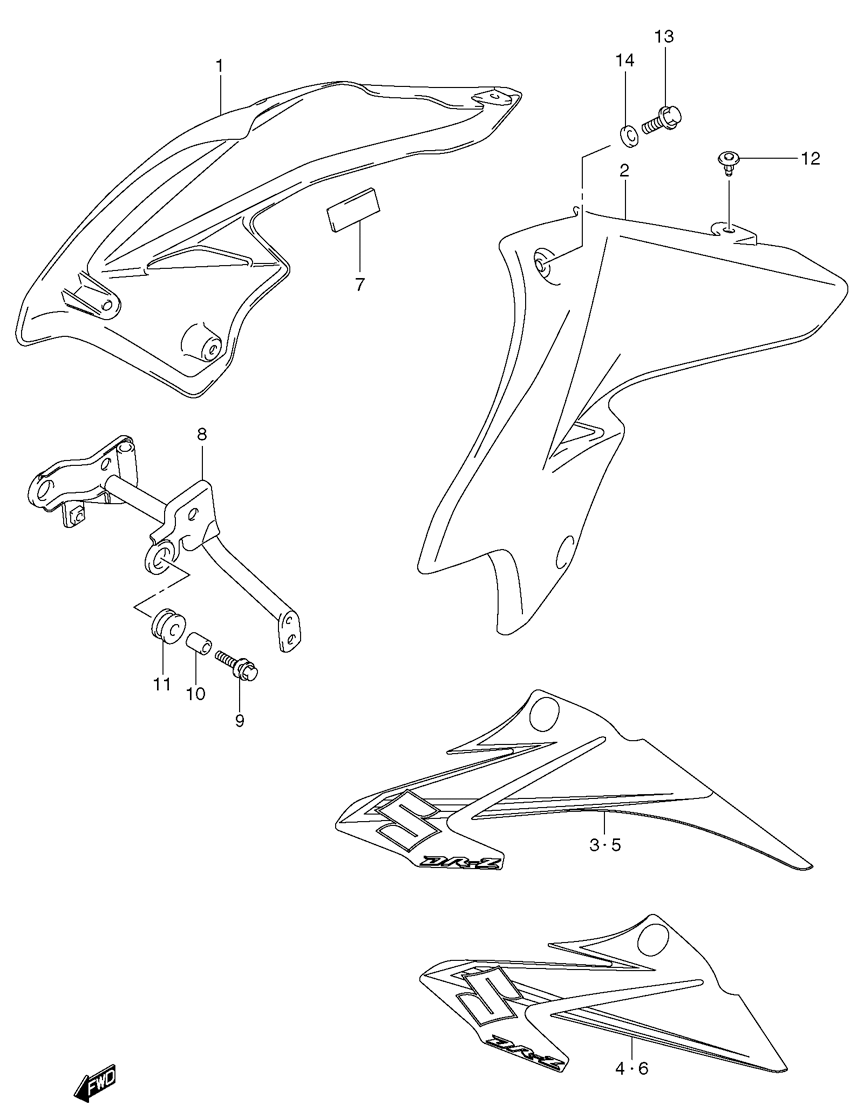

FUEL TANK - COVER для Suzuki DR-Z125K9 - 2009 года выпуска`
-
№АртикулНазвание
-
144271-08GA0-YU1 COVER, FUEL TANK RIGHT HAND (YELLOW) (YU1)COVER, FUEL TANK RIGHT HAND (YELLOW) (YU1)
-
144271-08GA0-019 COVER, FUEL TANK RIGHT HAND (BLACK) (019)COVER, FUEL TANK RIGHT HAND (BLACK) (019)
-
244281-08GA0-YU1 COVER, FUEL TANK LEFT HAND (YELLOW) (YU1)COVER, FUEL TANK LEFT HAND (YELLOW) (YU1)
-
244281-08GA0-019 COVER, FUEL TANK LEFT HAND (BLACK) (019)COVER, FUEL TANK LEFT HAND (BLACK) (019)
-
368115-08GC0-FYF TAPE, COVER RIGHT HAND (FYF FOR YU1)TAPE, COVER RIGHT HAND (FYF FOR YU1)
-
468115-08GB0-GGL TAPE, COVER RIGHT HAND (GGL FOR 019)TAPE, COVER RIGHT HAND (GGL FOR 019)
-
568116-08GC0-FYF TAPE, COVER LEFT HAND (FYF FOR YU1)TAPE, COVER LEFT HAND (FYF FOR YU1)
-
668116-08GB0-GGL TAPE, COVER LEFT HAND (GGL FOR 019)TAPE, COVER LEFT HAND (GGL FOR 019)
-
744294-14H00 CUSHIONCUSHION
-
844160-08GA0 BRACKET, FRONTBRACKET, FRONT
-
909116-06186 BOLT, BRACKETBOLT, BRACKET
-
1009180-06268 SPACERSPACER
-
1144512-04F00 CUSHIONCUSHION
-
1209409-08308-5ES CLIP (BLACK) (5ES)CLIP (BLACK) (5ES)
-
1301547-0616A BOLTBOLT
-
1409169-06053 WSHERWSHER
