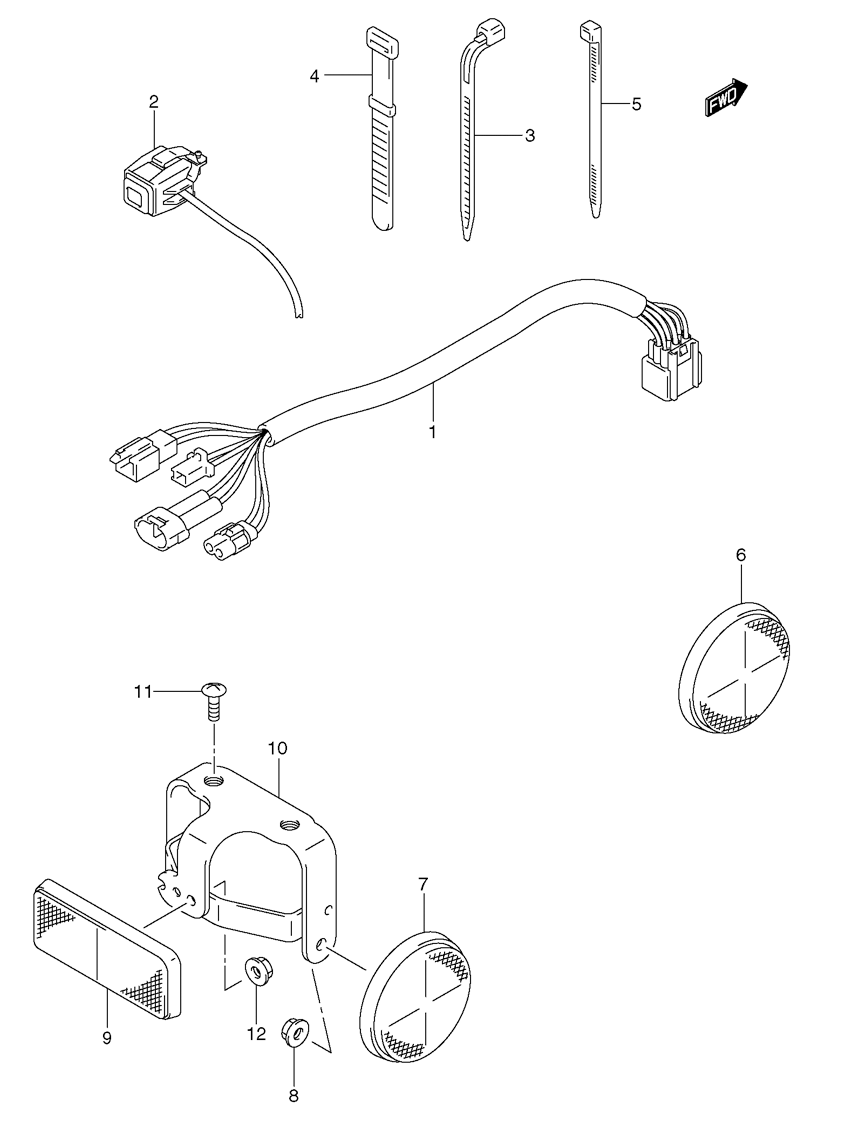

ELECTRICAL - WIRING HARNESS для Suzuki DR-Z125K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    36610-08G00 HARNESS, WIRING
    HARNESS, WIRING
  • 2
    37820-08G00 SWITCH ASSEMBLY, ENGINE STOP
    SWITCH ASSEMBLY, ENGINE STOP
  • 3
    09407-18402 CLAMP (LENGTH: 165)
    CLAMP (LENGTH: 165)
  • 4
    09407-12402 CLAMP (LENGTH: 120)
    CLAMP (LENGTH: 120)
  • 5
    09407-14407 CLAMP (LENGTH: 145)
    CLAMP (LENGTH: 145)
  • 6
    35950-14A10 REFLEX REFLECTOR ASSEMBLY, FR SIDE (FOR CANADA ONLY)
    REFLEX REFLECTOR ASSEMBLY, FR SIDE (FOR CANADA ONLY)
  • 7
    35970-30910 REFLECTOR ASSEMBLY, RR SIDE (FOR CANADA ONLY)
    REFLECTOR ASSEMBLY, RR SIDE (FOR CANADA ONLY)
  • 8
    08316-1005B NUT (FOR CANADA ONLY)
    NUT (FOR CANADA ONLY)
  • 9
    35970-07F01 REFLECTOR ASSEMBLY, RR (FOR CANADA ONLY)
    REFLECTOR ASSEMBLY, RR (FOR CANADA ONLY)
  • 10
    35974-08G10 BRACKET, SIDE & RR (FOR CANADA ONLY)
    BRACKET, SIDE & RR (FOR CANADA ONLY)
  • 11
    02142-0612B BOLT, REAR BRACKET (FOR CANADA ONLY)
    BOLT, REAR BRACKET (FOR CANADA ONLY)
  • 12
    08316-1005B NUT (FOR CANADA ONLY)
    NUT (FOR CANADA ONLY)
