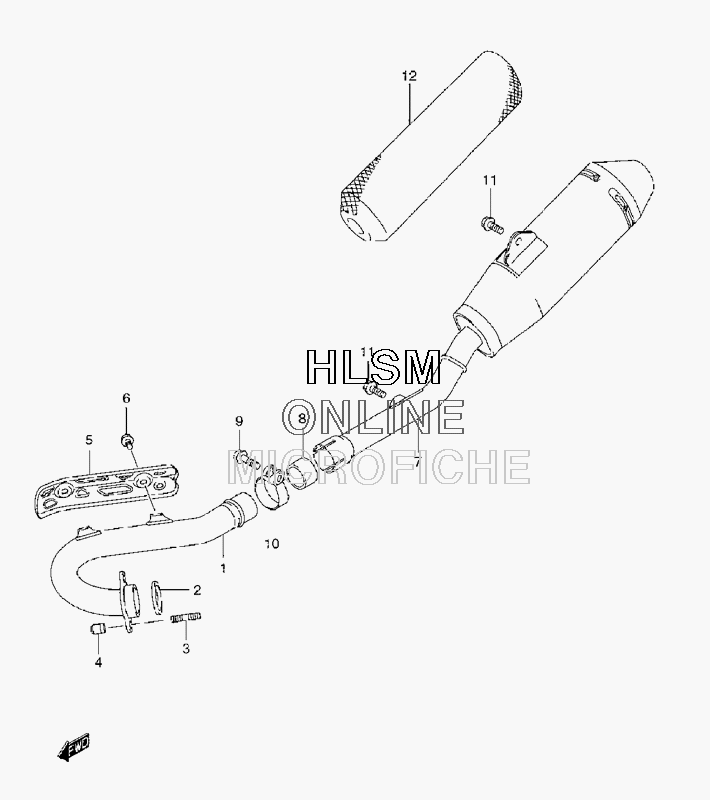

MUFFLER для Suzuki RM-Z250K8 - 2008 года выпуска
-
№АртикулНазвание
-
114150-10H00 PIPE, EXHAUSTPIPE, EXHAUST
-
214181-10H00 GASKETGASKET
-
301421-0816B BOLT, STUDBOLT, STUD
-
409159-08112 NUTNUT
-
514186-35G20 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
609139-06172 SCREW (6X10)SCREW (6X10)
-
714310-10H30 BODY, MUFFLERBODY, MUFFLER
-
814771-10H00 CONNECTORCONNECTOR
-
907120-0840B BOLT, CONNECTORBOLT, CONNECTOR
-
1014469-40F00 CLAMP, CONNECTORCLAMP, CONNECTOR
-
1109103-08426 BOLT (8X20)BOLT (8X20)
-
1214351-10H00 SILENCER, MUFFLERSILENCER, MUFFLER
