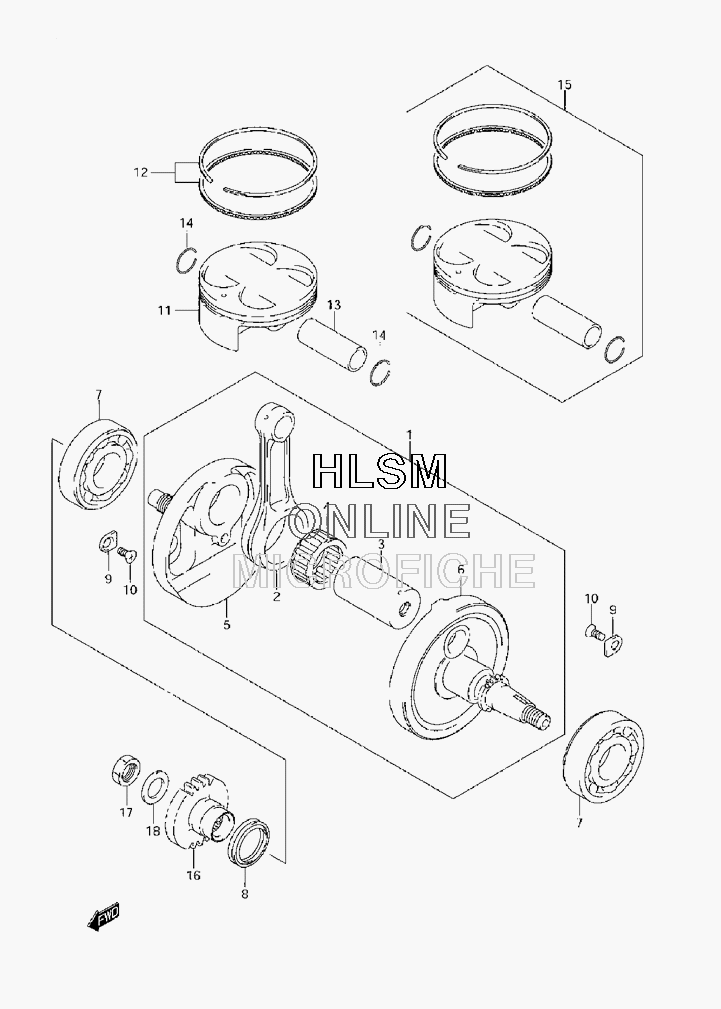

CRANKSHAFT W/ PISTON для Suzuki RM-Z250K8 - 2008 года выпуска
-
№АртикулНазвание
-
112200-10H10 CRANKSHAFT ASSY (INCL. 2-6)CRANKSHAFT ASSY (INCL. 2-6)
-
212161-10H10-0B0 ROD, CONNECTINGROD, CONNECTING
-
312210-10H10 PINPIN
-
409263-30054-0B0 BEARINGBEARING
-
512220-10H10 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
612261-10H10 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
709262-30117 BEARINGBEARING
-
809283-30061 OIL SEAL, RIGHT HAND (30X40X7)OIL SEAL, RIGHT HAND (30X40X7)
-
924741-37F00 RETAINERRETAINER
-
1009126-06011 SCREWSCREW
-
1112111-10H10-0F0 PISTONPISTON
-
1112111-10H20-0F0 PISTONPISTON
-
1212140-10810 RING SET, PISTONRING SET, PISTON
-
1312151-10H00 PIN, PISTONPIN, PISTON
-
1409381-16001 CIRCLIPCIRCLIP
-
1512110-10820 PISTON KIT INC.REF.NO.11PISTON KIT INC.REF.NO.11
-
1621111-10H00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
1709140-16036 NUTNUT
-
1809164-16002 WASHERWASHER
