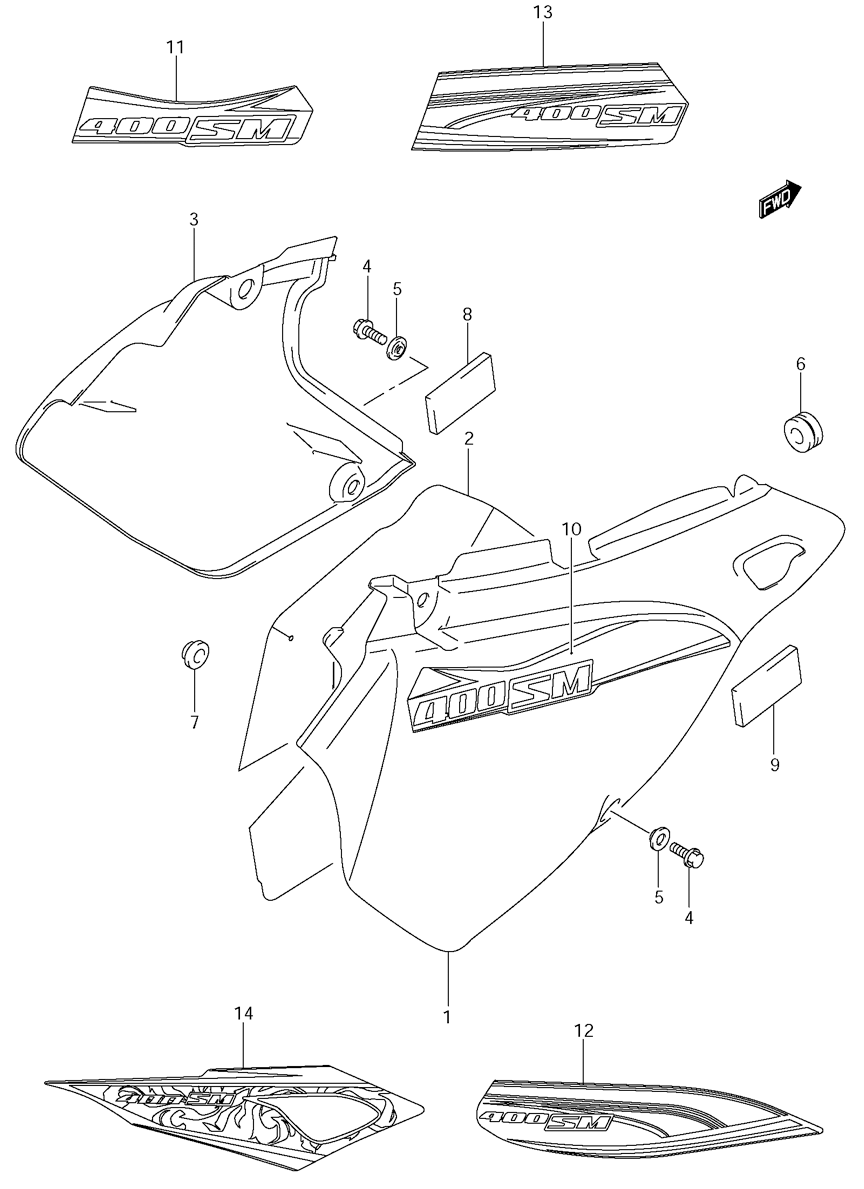

SIDE COVER для Suzuki DR-Z400SMK8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    47111-29FC0-019 COVER, FRAME RIGHT HAND (BLACK) (019 FOR 019)
    COVER, FRAME RIGHT HAND (BLACK) (019 FOR 019)
  • 1
    47111-29FC0-30H COVER, FRAME RIGHT HAND (WHITE) (30H FOR YU1/N9J/30H)
    COVER, FRAME RIGHT HAND (WHITE) (30H FOR YU1/N9J/30H)
  • 2
    47166-29F00 SHIELD, FRAME COVER RIGHT HAND
    SHIELD, FRAME COVER RIGHT HAND
  • 3
    47211-29FA0-019 COVER, FRAME LEFT HAND (BLACK) (EXCEPT CALF.) (019 FOR 019)
    COVER, FRAME LEFT HAND (BLACK) (EXCEPT CALF.) (019 FOR 019)
  • 3
    47211-29FA0-30H COVER, FRAME LEFT HAND (WHITE) (EXCEPT CALF.) (30H FOR YU1/N9J)
    COVER, FRAME LEFT HAND (WHITE) (EXCEPT CALF.) (30H FOR YU1/N9J)
  • 3
    47211-29FC0-019 COVER, FRAME LEFT HAND (BLACK) (FOR CALF. ONLY) (019 FOR 019)
    COVER, FRAME LEFT HAND (BLACK) (FOR CALF. ONLY) (019 FOR 019)
  • 3
    47211-29FC0-30H COVER, FRAME LEFT HAND (WHITE) (FOR CALF. ONLY) (30H FOR YU1/N9J/30H)
    COVER, FRAME LEFT HAND (WHITE) (FOR CALF. ONLY) (30H FOR YU1/N9J/30H)
  • 4
    09103-06273 BOLT
    BOLT
  • 5
    09169-06028 WASHER
    WASHER
  • 6
    09320-06504 CUSHION, RIGHT HAND
    CUSHION, RIGHT HAND
  • 7
    09321-10018 CUSHION, MUFFLER
    CUSHION, MUFFLER
  • 8
    47161-29F00 CUSHION, LEFT HAND COVER FRONT
    CUSHION, LEFT HAND COVER FRONT
  • 9
    71762-65G10 CUSHION, RIGHT HAND COVER FRONT
    CUSHION, RIGHT HAND COVER FRONT
  • 14
    68135-29FC0-FCN TAPE, RIGHT HAND (FCN FOR 019)
    TAPE, RIGHT HAND (FCN FOR 019)
  • 14
    68135-29FB0-FCT TAPE, RIGHT HAND (FCT FOR 30H)
    TAPE, RIGHT HAND (FCT FOR 30H)
