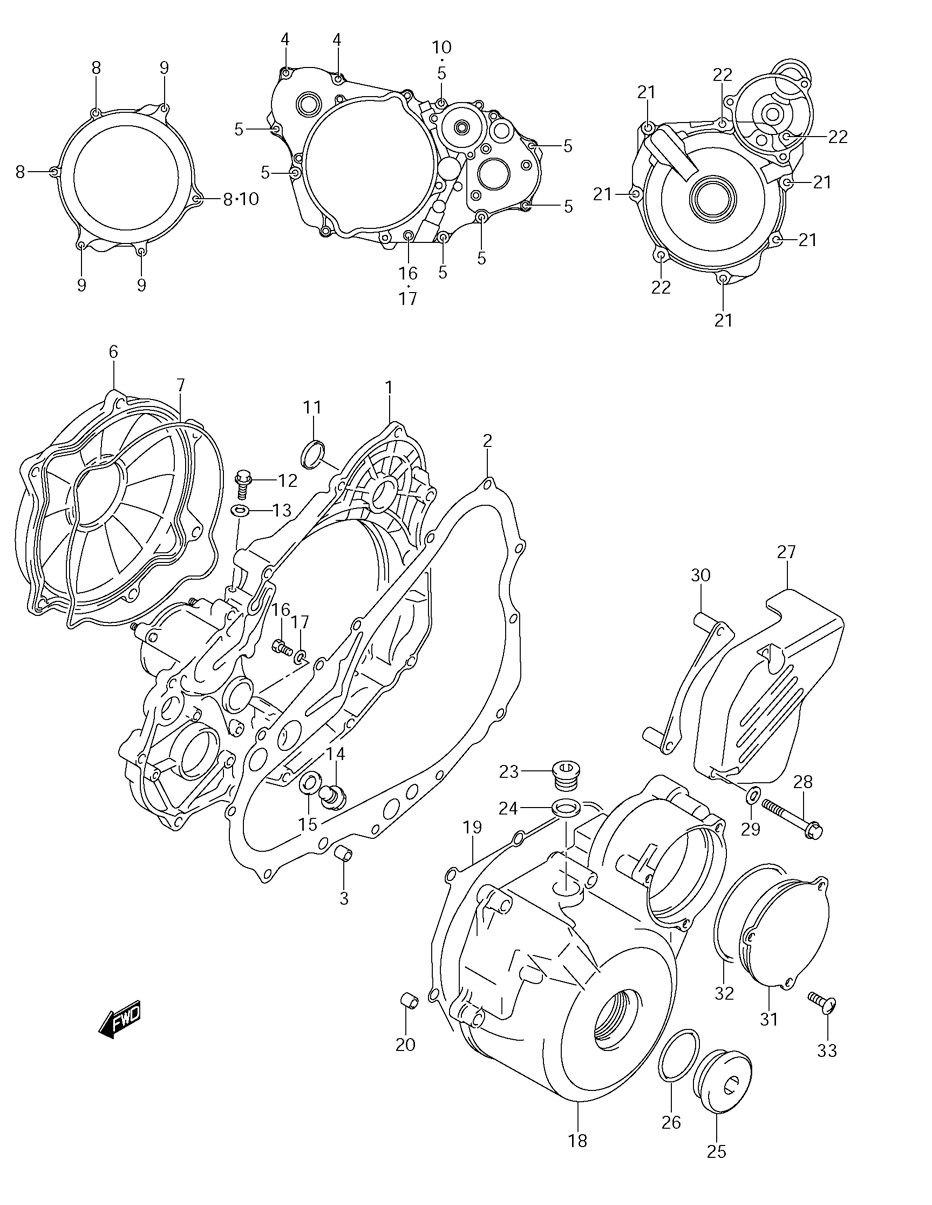

CRANKCASE COVER для Suzuki DR-Z400SMK8 - 2008 года выпуска`
-
№АртикулНазвание
-
111341-29F50 COVER, CLUTCH INNERCOVER, CLUTCH INNER
-
211482-29F00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
304211-09149 PINPIN
-
401547-0620A BOLTBOLT
-
501547-0630A BOLTBOLT
-
611371-29F50 COVER, CLUTCH OUTERCOVER, CLUTCH OUTER
-
711484-29F00 O RING, CLUTCH OUTER COVERO RING, CLUTCH OUTER COVER
-
801547-0620A BOLT, OUTER COVERBOLT, OUTER COVER
-
901547-0655A BOLT, OUTER COVERBOLT, OUTER COVER
-
1009168-06023 GASKETGASKET
-
1111342-15D00 PLUG, CLUTCH COVER KICKPLUG, CLUTCH COVER KICK
-
1201547-0612A PLUG, OIL GALLERYPLUG, OIL GALLERY
-
1309168-06023 GASKETGASKET
-
1409247-12006 PLUG, OIL GALLERY (12X10)PLUG, OIL GALLERY (12X10)
-
1509168-12002 GASKET (12.1X16.2X1.2)GASKET (12.1X16.2X1.2)
-
1601550-0610A BOLT, OIL LEVELBOLT, OIL LEVEL
-
1709168-06004 GASKET (6.2X11X1.2)GASKET (6.2X11X1.2)
-
1811351-29F60 COVER, MAGNETOCOVER, MAGNETO
-
1911483-29F00 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
2004211-09149 PINPIN
-
2101547-0630A BOLTBOLT
-
2201547-0640A BOLTBOLT
-
2309248-14012 PLUG, T.D.C (14X12)PLUG, T.D.C (14X12)
-
2409168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
2509259-36016-20H PLUG, CRANK HOLE (20H)PLUG, CRANK HOLE (20H)
-
2609280-33004 O RING (DIAMETER: 3.1,INSIDE DIAMETER: 32.7)O RING (DIAMETER: 3.1,INSIDE DIAMETER: 32.7)
-
2711360-29F50 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2801547-0650A BOLTBOLT
-
2909160-06126 WASHER (6.5X14X2)WASHER (6.5X14X2)
-
3027640-29F11 PLATE, FRONT CHAIN GUIDEPLATE, FRONT CHAIN GUIDE
-
3111352-29F50 COVER, STARTER IDLE GEARCOVER, STARTER IDLE GEAR
-
3209280-71008 O RING (DIAMETER: 2.6,INSIDE DIAMETER: 67.1)O RING (DIAMETER: 2.6,INSIDE DIAMETER: 67.1)
-
3302142-0616A SCREWSCREW
